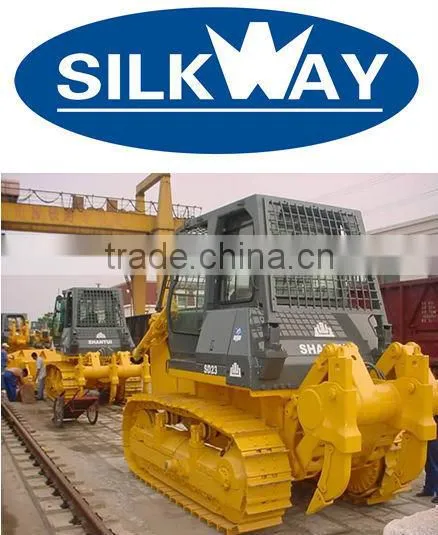

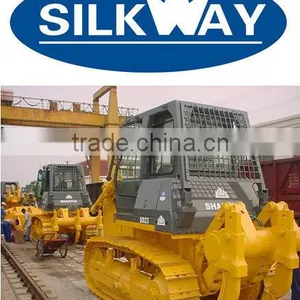

Hot Model 230hp SHANTUI Bulldozer SD23 With Cheap Price
US$ 80,000 - 100,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SHANTUI
Model Number:
SD23
Payment & Shipping
Payment Methods:
Port of Shipment:
Any Port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2017 Hot Sale 160hp Forest Type Bulldozer SHANTUI Bulldozer SD16F And Shantui Bulldozer Spare PartsUS$ 60,000 - 100,000MOQ: 1 Unit -
Mini Earthmoving Equipment Shantui 130HP Bulldozer SD13US$ 50,000 - 60,000MOQ: 1 Set
-
2017 New 520hp SHANTUI Bulldozer SD52-5 With Best PriceUS$ 70,000 - 140,000MOQ: 1 Unit
-
The Cheapest Price SHANTUI420hp Bulldozer SD42-3US$ 450,000 - 500,000MOQ: 1 Unit
-
130hp High Quality SHANTUI Bulldozer SD13 With Shangchai EngineUS$ 50,000 - 70,000MOQ: 1 Unit
Place of Origin
Jiangsu, China
Brand Name
SHANTUI
Model Number
SD23
Condition
New
Moving Type
Crawler Bulldozer
Machine Weight
25700kg
Dimension(Long * Breadth * High)
5677x3500x3402mm
After-sales Service Provided
Engineers available to service machinery overseas
Engine | |
| Type | NT855-C280 Cummins in-line,water cooled 4-cycle,overhead valve direct injection,turbocharged diesel |
| Rated revolution | 2000r/min |
| Rated power | 169kw |
| Cylinder number-bore x stroke | 6-139.7mm×152.4 |
| Piston displacement | 14010ml |
| Min. fuel consumption | 217g/KW.h |
| Max. Torque | 1038NM/1400rpm |
| Undercarriage system | |
| Type | Swing type of sprayed beam,suspended structure of equalizer bar |
| Carry rollers | 2 each side |
| Track rollers | 7/each side(single flange5,double flange2) |
| Track type | assemble single-tooth shoes(39/each side) |
| Width of track shoes | 560mm |
| Pitch | 216mm |
| Hydraulic system | |
| Max. Pressure | 19.1MPa |
| Pump type | Gear pump |
| Discharge | 194L / min |
| Working cylinder x number | 110mm×2 |
| Power transmitting system | |
| Torque converter | 3-element, 1 stage, 1 phase |
| Transmission | Planetary gear,multi-disc clutch,hydraulically connected,forced lubrication |
| Main drive | Spiral bevel gear,splash lubrication,single-stage speed reduction |
| Steering clutch | Wet,multi-disc,spring loaded,hydraulically separated, hydraulic control |
| Steering brake | Wet,floating,direct on-off hydraulic inter-linking operation |
| Final drive | 2-stage speed reduction of spur gear,splash lubrication |
| Blade | Straight | Angle | Ublade | |
| Min. ground clearance | mm | 405 | 405 | 405 |
| Ground pressure | Mpa | 0.078 | 0.078 | 0.078 |
| Min.turning radius | m | 3.3 | 3.3 | 3.3 |
| Gradeability | % | 30 | 30 | 30 |
| Track gauge | mm | 2000 | 2000 | 2000 |
| Dozing capacity | m3 | 7.8 | 5.4 | 8.4 |
| Blade width | mm | 3725 | 4365 | 3860 |
| Blade height | mm | 1395 | 1032 | 1379 |
| Max. drop below ground | mm | 540 | 560 | 540 |
| Max. tilt adjustment | mm | 1210 | 1240 | 1210 |
Hot Model 230hp SHANTUI Bulldozer SD23 With Cheap Price
Product Photos
Blade Type
Company Information
Silkway is located in the most famous construction machinery city Xuzhou, China, where XCMG located. Our company has been specializing in construction machinery for many years, and we have abundant experience and resources for pre-sale, sale and after sale service. As a professional construction machinery exporter, our enterprise philosophy is " Credbility, Integrity, Perfection ". Our products have been exported to over 80 different countries, including Australia, U.K., Poland, Netherland, Italy, Russia, India, main countries of Africa, America, Central-Asia, Southeast Asia, Middle East etc.
XUZHOU SILKWAY MACHINERY&EQUIPMENT CO.,LTD
Add:F17, Hengmao Business Center, No6, Xi'an Road(N), Xuzhou City, Jiangsu Province, P,R.China
Send Inquiry to This Supplier
Mr. Benny Wang
General Director
Xuzhou Silkway Machinery & Equipment Co., Ltd.
Xuzhou, Jiangsu, China
