2017 230hp High Quality SHANTUI Bulldozer SD23 With Cumins Engine

Name: 2017 230hp High Quality SHANTUI Bulldozer SD23 With Cumins Engine
Brand: SHANTUI
Price: USD $70,000 - 90,000 / Unit

FOB Price

USD $70,000 - $90,000 / Unit

1 Unit(Min.Order)

Supply Ability 300 Unit / Units per Month
Port Any Port in China
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	SHANTUI	Model Number:	SD23
Condition:	New	Moving Type:	Crawler Bulldozer	Machine Weight:	25700kg
Dimension(Long * Breadth * High):	5677x3500x3402mm	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Engine
Type	NT855-C280 Cummins in-line,water cooled 4-cycle,overhead valve direct injection,turbocharged diesel
Rated revolution	2000r/min
Rated power	169kw
Cylinder number-bore x stroke	6-139.7mm×152.4
Piston displacement	14010ml
Min. fuel consumption	217g/KW.h
Max. Torque	1038NM/1400rpm
Undercarriage system
Type	Swing type of sprayed beam,suspended structure of equalizer bar
Carry rollers	2 each side
Track rollers	7/each side(single flange5,double flange2)
Track type	assemble single-tooth shoes(39/each side)
Width of track shoes	560mm
Pitch	216mm
Hydraulic system
Max. Pressure	19.1MPa
Pump type	Gear pump
Discharge	194L / min
Working cylinder x number	110mm×2
Power transmitting system
Torque converter	3-element, 1 stage, 1 phase
Transmission	Planetary gear,multi-disc clutch,hydraulically connected,forced lubrication
Main drive	Spiral bevel gear,splash lubrication,single-stage speed reduction
Steering clutch	Wet,multi-disc,spring loaded,hydraulically separated, hydraulic control
Steering brake	Wet,floating,direct on-off hydraulic inter-linking operation
Final drive	2-stage speed reduction of spur gear,splash lubrication

Blade		Straight	Angle	Ublade
Min. ground clearance	mm	405	405	405
Ground pressure	Mpa	0.078	0.078	0.078
Min.turning radius	m	3.3	3.3	3.3
Gradeability	%	30	30	30
Track gauge	mm	2000	2000	2000
Dozing capacity	m3	7.8	5.4	8.4
Blade width	mm	3725	4365	3860
Blade height	mm	1395	1032	1379
Max. drop below ground	mm	540	560	540
Max. tilt adjustment	mm	1210	1240	1210

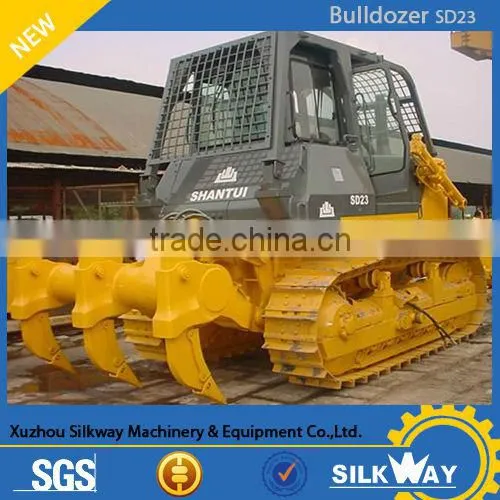

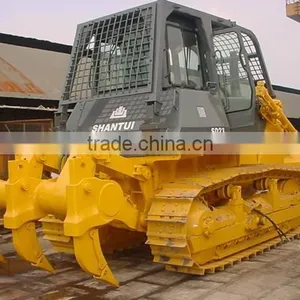

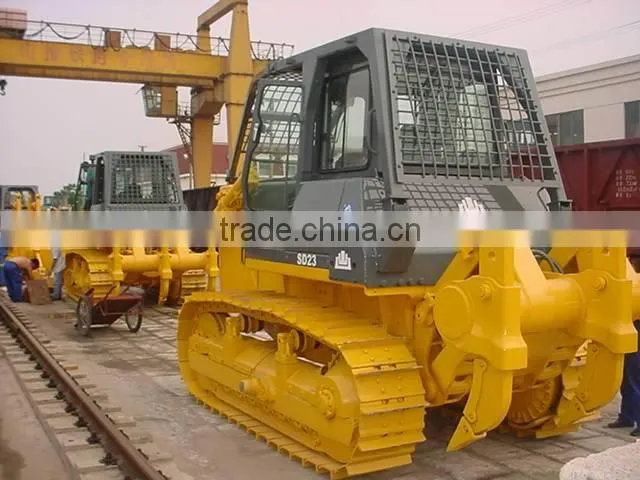

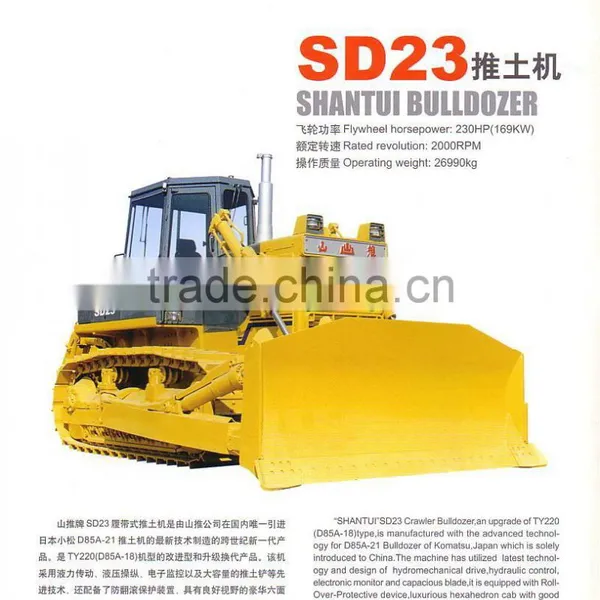

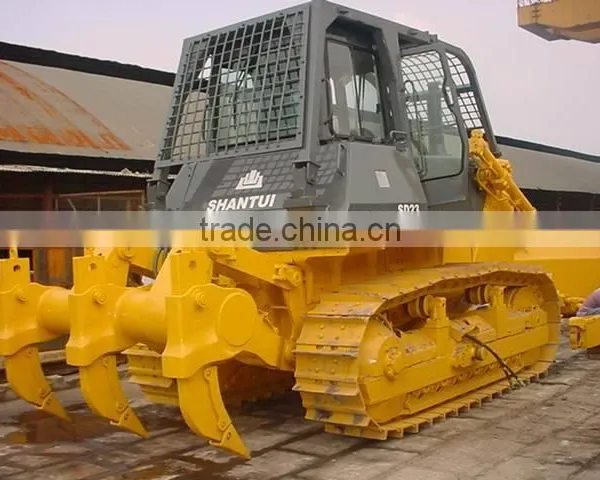

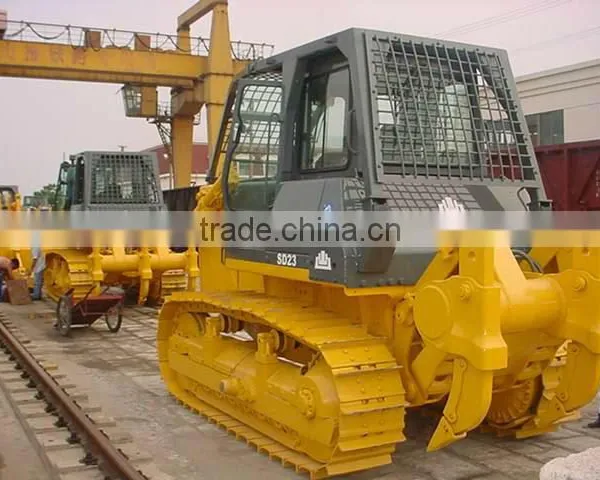

Product Photos

Blade Type

Packaging & Shipping

Our Services

Company Information

Silkway is located in the most famous construction machinery city Xuzhou, China, where XCMG located. Our company has been specializing in construction machinery for many years, and we have abundant experience and resources for pre-sale, sale and after sale service. As a professional construction machinery exporter, our enterprise philosophy is " Credbility, Integrity, Perfection ". Our products have been exported to over 80 different countries, including Australia, U.K., Poland, Netherland, Italy, Russia, India, main countries of Africa, America, Central-Asia, Southeast Asia, Middle East etc.

XUZHOU SILKWAY MACHINERY&EQUIPMENT CO.,LTD

Add:F17, Hengmao Business Center, No6, Xi'an Road(N), Xuzhou City, Jiangsu Province, P,R.China
