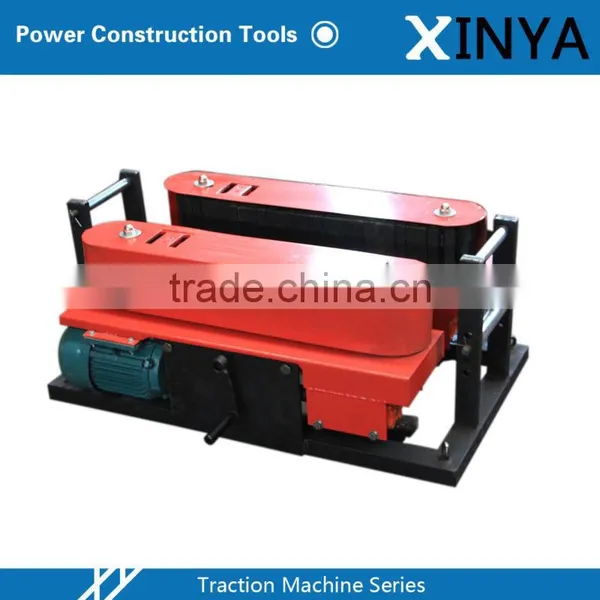

DSJ Cable Transmit Machine/ Cable Belt Conveyor
Application
DSJ Cable Transmit Machine/ Cable Belt Conveyor we manufactured, is the ideal machine of cable transmission used in power,
petroleum, chemical, industrial construction, power plant extension, substation and city network transmission cable.
It is suitable for cable trays in any form of channel, cable pipe, conveying a variety of power cable and control cable.
Features
Using this kind of this device changes the manual transmission cable. It can save a lot of labor, improve working conditions,
reduce labor intensity, improve work efficiency and ensure the safety.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Technical Data for DSJ Cable Transmit Machine/ Cable Belt Conveyor
| Model Type | DSJ-150 | DSJ-180 |
| Line pulling(KGS) | 700 | 900 |
| Pulling Speed(m/min) | 8 | 6 |
| Electric motor | 1.1KW *2 | 1.5KW * 2 |
| Oversize dimension | 950*500*400 | 1020*590*400 |
| Weight(KGS) | 150 | 180-200 |
| Cable diameter | Φ30 - 180 mm | Φ30 - 200 mm |
| Transimission | I=45 | I=60 |
| Rubber sheet thickness | 25mm | 25mm |
