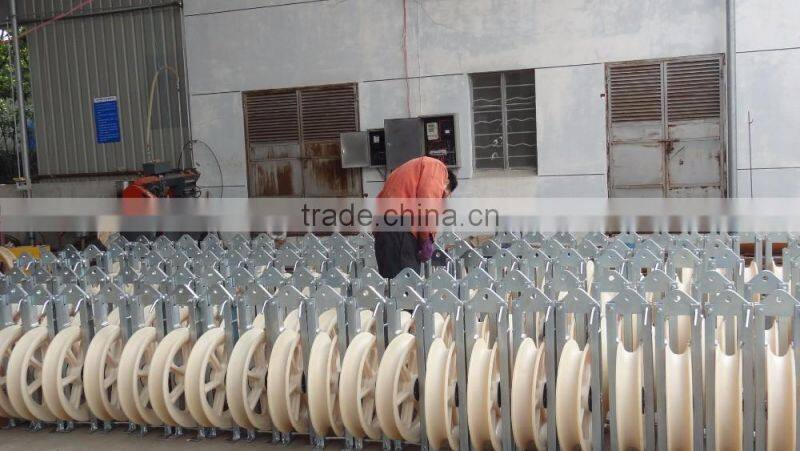

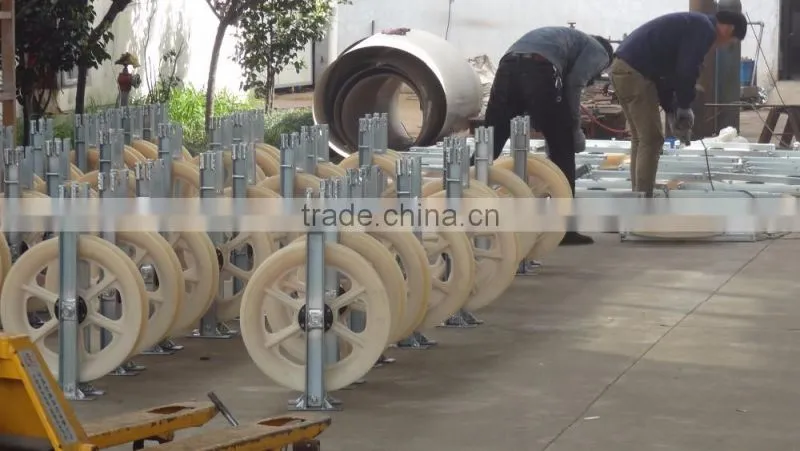

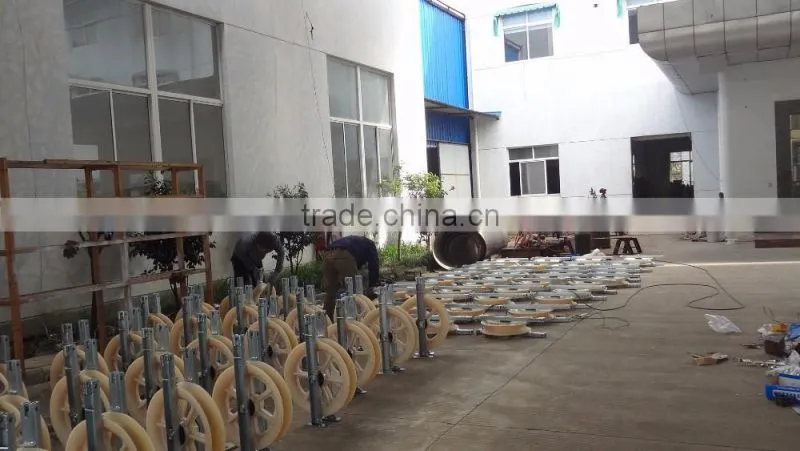

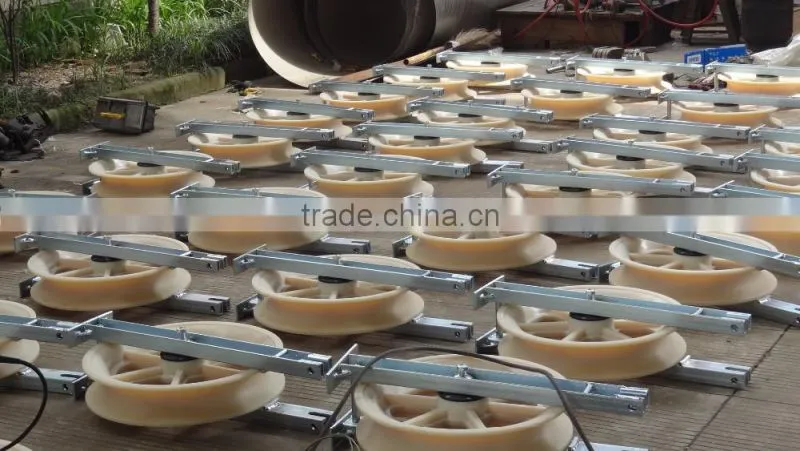

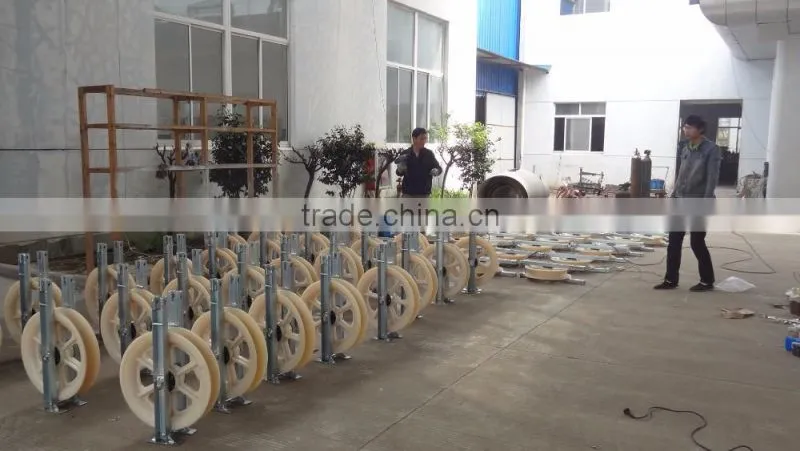

5 Bundled Cable / OPGW Conductor Pulley for Power Line Construction 800mm2 , Rubber Covered
Quick details:
1. Transmission Line Stringing Accessories
2. Conductor/Cable/OPGW Bundled Conductor Pulley
3. Diameter: 916mm Wheel Width: 110mm
4. Five Wheels Nylon Wheels
5. Galvanized Steel Frame
6. With Rubber Covered or Without
7. Rated Load: 80kN
8. Conductor Size: under 800mm2
Specification:
Single Wheel-Wheel material aluminum or Nylon, and it could be covered by rubber.
Model |
Wheel size Diameter x Width (mm) |
Conductor size (mm2) |
Rated load (kN) |
Weight (kg) |
Wheel material |
SHD-120X30 |
120x30 |
25~70 |
5 |
2.1 |
Aluminum |
SHD-160X40 |
160X40 |
95~120 |
10 |
3.1 |
|
SHD-200X40 |
200X40 |
150~240 |
15 |
3.7 |
|
SHD-200X60 |
200X60 |
150~240 |
15 |
4.1 |
|
SHD-250X40 |
250X40 |
150~240 |
20 |
5.1 |
|
SHD-250X60 |
250X60 |
300~400 |
20 |
5.4 |
|
SHD-270X60 |
270X60 |
300~400 |
20 |
6.7 |
|
SHD-320X60 |
320X60 |
300~400 |
20 |
10.4 |
|
SHD-400X80 |
400X80 |
400~500 |
20 |
11.9 |
|
SHDN-120X30 |
120x30 |
25~70 |
5 |
1.5 |
Nylon |
SHDN-160X40 |
160X40 |
95~120 |
10 |
2.3 |
|
SHDN-200X40 |
200X40 |
150~240 |
15 |
2.5 |
|
SHDN-200X60 |
200X60 |
150~240 |
15 |
3.0 |
|
SHDN-250X40 |
250X40 |
150~240 |
20 |
3.6 |
|
SHDN-250X60 |
250X60 |
300~400 |
20 |
3.8 |
|
SHDN-270X60 |
270X60 |
300~400 |
20 |
4.3 |
|
SHDN-320X60 |
320X60 |
300~400 |
20 |
7.5 |
|
SHDN-400X80 |
400X80 |
400~500 |
20 |
8 |
|
SHD-508X75 |
508X75 |
≤400 |
20 |
22.3 |
Aluminum |
SHD-660X100 |
660X100 |
≤500 |
20 |
30 |
|
SHDN-508X75 |
508X75 |
≤400 |
20 |
18 |
Nylon |
SHDN-660X100 |
660X100 |
≤500 |
20 |
20 |
|
SHDN-830X110 |
830X110 |
≤630 |
30 |
25 |
|
SHDN-916X110 |
916X110 |
≤800 |
50 |
45 |
|
SHDN-1040X125 |
1040X125 |
≤1000 |
55 |
105 |

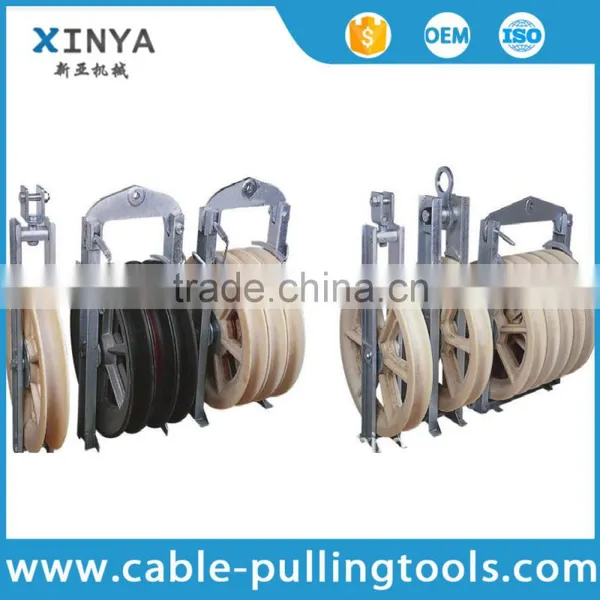

Three Wheels-The pulleys are suitable for string two or three bundled conductor lines.
Model |
Wheel size Diameter x Width (mm) |
Conductor size (mm2) |
Rated load (kN) |
Weight (kg) |
Wheel material |
SHS-508X75 |
3X508X75 |
≤400 |
40 |
85.5 |
Middle steel Two Nylon |
SHS-660X100 |
3X660X100 |
≤500 |
20 |
106 |
|
SHSN-508X75 |
3X508X75 |
≤400 |
40 |
60 |
Nylon |
SHSN-660X100 |
3X660X100 |
≤500 |
40 |
85 |
|
SHSN-830X110 |
3X830X110 |
≤630 |
60 |
100 |
|
SHSN-916X110 |
3X916X110 |
≤800 |
80 |
140 |
|
SHSN-1040X125 |
3X1040X125 |
≤1000 |
110 |
210 |
Five Wheels-The pulleys are suitable for string four bundled conductor lines.
Model |
Wheel size Diameter x Width (mm) |
Conductor size (mm2) |
Rated load (kN) |
Weight (kg) |
Wheel material |
SHW-508X75 |
3X508X75 |
≤400 |
40 |
85.5 |
Middle steel Two Nylon |
SHW-660X100 |
3X660X100 |
≤500 |
40 |
106 |
|
SHWN-508X75 |
5X508X75 |
≤400 |
40 |
60 |
Nylon |
SHWN-660X100 |
5X660X100 |
≤500 |
40 |
85 |
|
SHWN-830X110 |
5X830X110 |
≤630 |
60 |
100 |
|
SHWN-916X110 |
5X916X110 |
≤800 |
80 |
140 |
|
SHWN-1040X125 |
5X1040X125 |
≤1000 |
110 |
210 |
