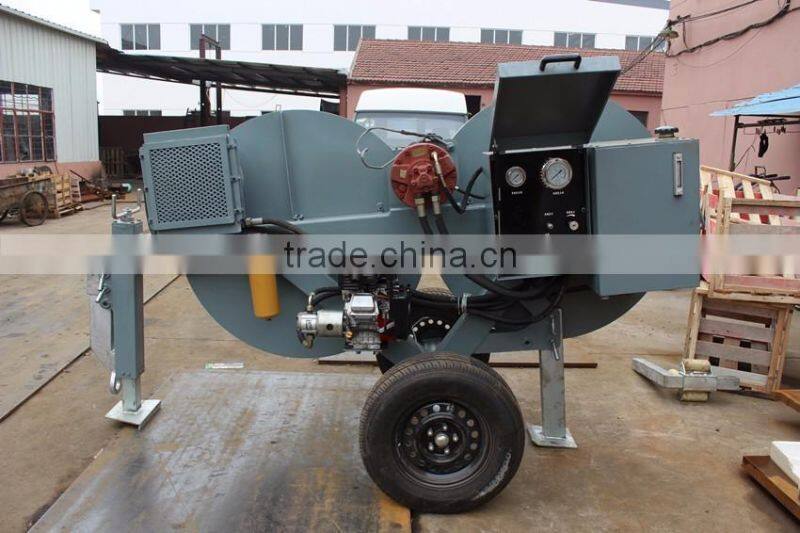

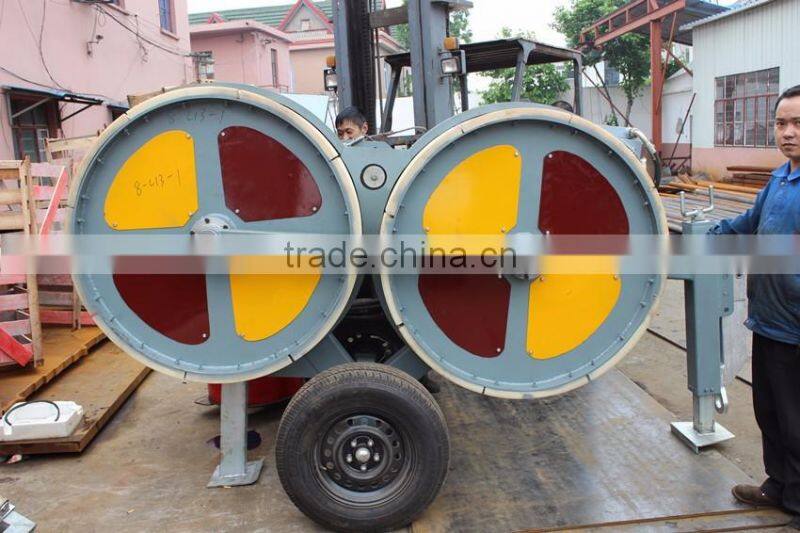

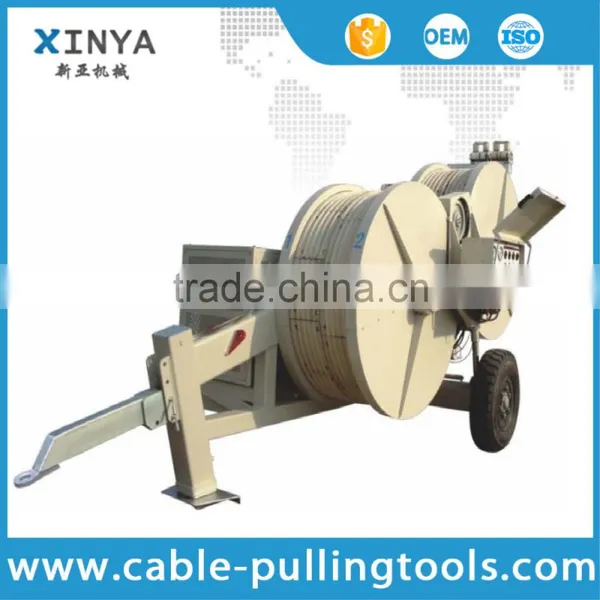

Overhead Transmission Line OPGW Puller Tensioner 40KN With 1200mm Tension Wheel
1.SA-YQZ40C Hydraulic Puller-Tensioner
| Item No. | 07223 |
| Model | SA-YQZ40C |
| Stringing capacity | 1 conductor or pilot wire rope |
| Max. Pull / Tension Force (KN) | 40/40 |
| Continuous Pull / Tension Force (KN) | 35/35 |
| Max. Pull / Stringing Speed (km/h) | 5/5 |
| Diameter of wheel (mm) | Φ1200 |
| Number of grooves | 5 |
| Max. Conductor Diameter (mm) | Φ32 |
| Model of Diesel Engine | Cummins water cooled |
| Power of Diesel Engine | 60 KW |
| Rotate Speed of Engine (rpm) | 2000 |
| Weight (kg) | 3800 |
| Dimension (m) | 4.17 x 1.85 x 2.4 |
Application:
The universal unit can serve as a tensioner or a puller as desired, for stringing various conductors or earth wires. It is ideal for retrieving operation, by using the old conductor or earth wire as the pulling rope, for changing new conductor or OPGW cable.
Features:
- With closed hydraulic circuit and variable displacement plunger pump, the pull/ tension force could be step less controlled.
- With the radiator imported fromGermany, the machine has good heat dissipate performance.
- With a negative spring applied brake, and automatic overload protection.
- With rigid axle for towing at high speed, the machine looks beautiful.
- With automatic hydraulic reel winder system
- With hydraulic power take off to power a take-up reel stand or steel rope take-up carriage.
- Heavy duty R-tires with excellent shock-absorbing performance.
Main Components:
- Main variable displacement pump: Rexroth
- Diesel Engine: Cummins water-cooled diesel engine
- Hydraulic instrucments: WIKA (German)
- Radiator: AKG (German)
2. SA-YQZ40D Hydraulic Puller Tensioner
| Item No. | 07224 |
| Model | SA-YQZ40D |
| Stringing capacity | 1 conductor or pilot wire rope |
| Max. Pull / Tension Force (KN) | 40/40 |
| Continuous Pull / Tension Force (KN) | 35/35 |
| Max. Pull / Stringing Speed (km/h) | 5/5 |
| Diameter of wheel (mm) | Φ1200 |
| Number of grooves | 5 |
| Max. Conductor Diameter (mm) | Φ32 |
| Model of Diesel Engine | Cummins water cooled |
| Power of Diesel Engine | 60 KW |
| Rotate Speed of Engine (rpm) | 2000 |
| Weight (kg) | 3200 |
| Dimension (m) | 3.6 x 1.85 x 2. |
Application:
The universal unit can serve as a tensioner or a puller as desired, for stringing various conductors or earth wires. It is ideal for retrieving operation, by using the old conductor or earth wire as the pulling rope, for changing new conductor or OPGW cable.
Features:
- With closed hydraulic circuit and variable displacement plunger pump, the pull/ tension force could be step less controlled.
- With the radiator imported fromGermany, the machine has good heat dissipate performance.
- With a negative spring applied brake, and automatic overload protection.
- With rigid axle for towing at high speed, the machine looks beautiful.
- With hydraulic power take off to power a take-up reel stand or steel rope take-up carriage.
- Heavy duty R-tires with excellent shock-absorbing performance.
Main Components:
- Main variable displacement pump: Rexroth
- Diesel Engine: Cummins water-cooled diesel engine
- Hydraulic instrucments: WIKA (German)
- Radiator: AKG (German)
