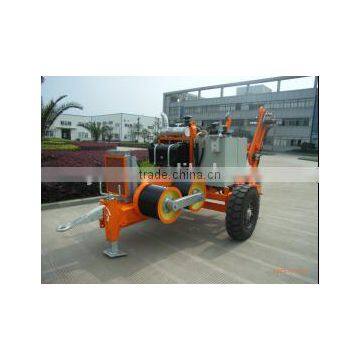

40KN Hydraulic Cable Puller With 7 grooves for Stringing During Line Transmission
HYDRAULIC SYSTEM
Drive System: Hydraulic Drive & Control System: Hydraulic Control
Smooth speed & Stability pull & Stability Hydraulic drive.
Full enclosed and require minimal maintenance.
SAFETY
Reliable brake---automatic brake on neutral
Automatic stop when over-load
TECHINCAL DATA:
Max pull:40kN
Max continuous pull:35kN Corresponding speed:2.5km/h
Max pulling speed:5km/h Corresponding pull:17kN
STRUCTURE DATA:
Bull-wheel diameter: 400mm
Groove amount:7
Max rope diameter: 16mm
Max fix joint diameter:50mm
ENGINE
CUMMINS water-cold
Power:77kw/2500rpm
Electrical system:24V
REEL WINDER
Hydraulic drive
Automatic rope guiding device
Hydraulic lifting and lowering of reels for loading/unloading.
PULL WHEEL
Surface hardness: HRC50-55---Hard hardness, wear-resistant---long service life
COMPONENTS IMPORTED FROM GERMANY
Main hydraulic pump: REXROTH
Main hydraulic handle: REXROTH
Main hydraulic motor: REXROTH
Hydraulic meter: WIKA
COMPONENTS IMPORTED FROM ITALY
Reducer: BONFIGLIOLI
Hydraulic valve: ATOS
Pull meter: FANTINELLI
Hydraulic pipeline system: MANULI
