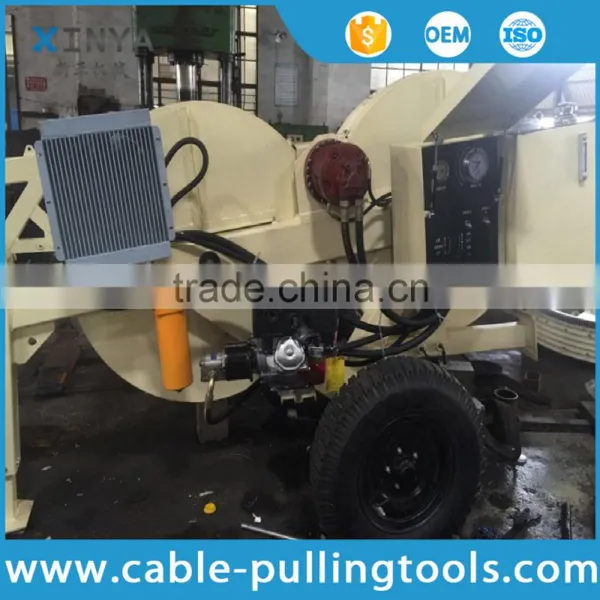

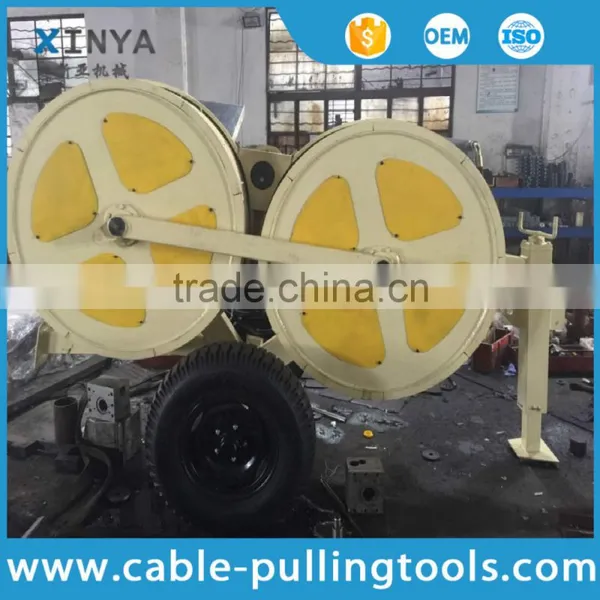

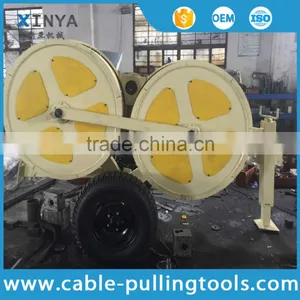

30KN Hydraulic Wire Conductor Tensioner
US$ 15,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
XINYA
Model Number:
SA-YZ30A
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
30KN Fiber Optic Cable Tensioner During Transmission LineUS$ 18,000 - 19,200MOQ: 1 Set -
Stringing Equipment 30KN Electric Cable TensionerUS$ 15,000 - 20,000MOQ: 1 Set
-
30KN Hydraulic Cable Tensioner for Overhead Line TransmissionUS$ 15,000 - 20,000MOQ: 1 Set
-
Stringing Equipment 7.5KN ADSS OPGW Line TensionerUS$ 3,000 - 4,000MOQ: 1 Set
-
Stringing Equipment 60KN Hydraulic Power PullerUS$ 35,000 - 40,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
XINYA
Model Number
SA-YZ30A
Type
Hydraulic Pullers
30KN Hydraulic Wire Conductor Tensioner
Application
30KN Hydraulic Wire Conductor Tensioner adequate to tension releasing various conducts and earthwires .and also useful for tension releasing OPGW optic cable compounded earthwire and ADSS self–stand optic cable .etc .
Features
1. Bullwheel with wearproof MC nylon lining segments.
2. infinitely variable tension control and constant tension conductor stringing .
3. it adapt Italian reducer .
4. spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety
Main component
1. Engine :Domestic water –cooled engine .
2 .Main pump/motor ,Chinese famous branded pump and motor .
3. Reducer :RR(Italian )
4. Radiator: AKG
5. Hydraulic instrument : WIKA
6. It can choose import engine .
Technical Data
| Model Type | SA-YZ30A |
| Overall Size(MM) | 3560 *1600*2220 |
| Weight(KG) | 1700 |
| Max Tension(KN) | 30 |
| Max Continual Tension(KN) | 25 |
| Bullwheel bottom of groove diameter | Φ1200 mm |
| Diameter of Tension wheel(mm) | 1200 |
| Number of grooves | 5 |
| Maximum pullback (KN) | 20 |
| Maximum suitable conductor diameter | 32 |
| Engine power /speed (kW/rpm) | 11/2200 |
Please tell us the following information in your enquiry:
1. Max Tension(KN) ?
2. Diameter of Tension wheel(mm) ?
3. Maximum suitable conductor diameter ?
4. Quantity?
We'll give you a good price after confirming the above info.
Welcome to contact us by phone or e-mail, if you are interesting in our products.
