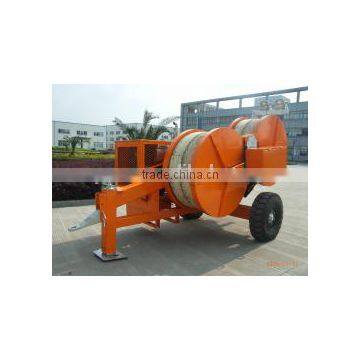

SA-YZ2*30KN Fiber Optic Cable Tensioner During Transmission Line
US$ 18,000 - 19,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
XINYA
Model Number:
SA-YZ2*30
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
40KN Hydraulic Wire Conductor TensionerUS$ 15,000 - 20,000MOQ: 1 Set -
30KN Hydraulic Wire Conductor TensionerUS$ 15,000 - 20,000MOQ: 1 Set
-
30KN Fiber Optic Cable Tensioner During Transmission LineUS$ 18,000 - 19,200MOQ: 1 Set
-
Stringing Equipment 30KN Electric Cable TensionerUS$ 15,000 - 20,000MOQ: 1 Set
-
30KN Hydraulic Cable Tensioner for Overhead Line TransmissionUS$ 15,000 - 20,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
XINYA
Model Number
SA-YZ2*30
Type
Hydraulic Pullers
SA-YZ2*30KN Fiber Optic Cable Tensioner During Transmission Line
·uses
used to string various conducts and earthwire .and it as one pull one or one pull two using .
·feature
1. Bullwheel with wearproof MC nylon lining segments.
2. Infinitely variable tension control and constant tension conductor stringing .
3. .Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .
4. attached two sets of hydraulic power output interface to connect hydraulic reel stand .
Main component
1.Engine :Chinese famous brand air–cooled engine
2.main pump and main motor Rexroth (BOSCH )
3.Reducer : RR(Italian)
4.hydraulic valve : Rexroth (BOSCH )
5.radiator :AKG
6.hydraulic instrument :WIKA
Technical Data
| Model Type | SA-YZ2*30 |
| Overall Size(MM) | 4100 × 2100 ×2600 |
| Weight(KG) | 4000 |
| Max Tension(KN) | 2*30 |
| Max Continual Tension(KN) | 2*25 |
| Bullwheel bottom of groove diameter | Φ1200 mm |
| Diameter of Tension wheel(mm) | 1200 |
| Number of grooves | 5 |
| Maximum pullback (KN) | 2*30 |
| Maximum suitable conductor diameter | 32 |
| Engine power /speed (kW/rpm) | 38/2500 |
Please tell us the following information in your enquiry:
1. Max Tension(KN) ?
2. Diameter of Tension wheel(mm) ?
3. Maximum suitable conductor diameter ?
4. Quantity?
We'll give you a good price after confirming the above info.
