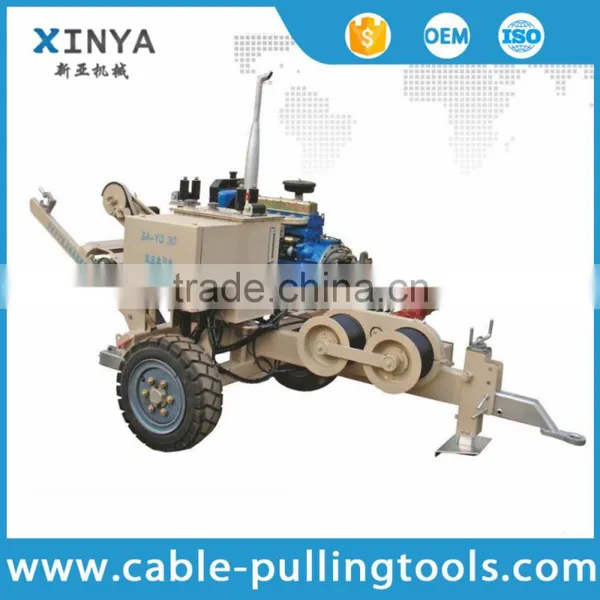

SA-YQ30 Transmission stringing equipment Hydraulic Cable Puller
Application
Suitable for transmission line wire, ground, OPGW Composite Ground Self-supporting ADSS fiber optic cable and fiber optic cable tension stringing process as traction.
Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.
Feature
Infinitely variable speed and line control ,the pull in the rope can be read on the line pull gauge .
The max pull for conductor –stringing operation can preset ,automatic overpull protection system .
Spring applied –hydraulic release brake acts automatically in case of hydraulic failure ensure to safety .
Attached reel winder with automatically level wind .load and unload conveniently .
Main component
1.Chinese quality diesel engine
2.Main pump:SAUER-SUNDSTRAND pump
3.Radiator:AKG
4.Hydraulic instrument:WIKA
5.Mating with model GSP950 drum
Technical Data Of SA-YQ30 Transmission stringing equipment Hydraulic Cable Puller
| Model | SA-YQ30 |
| Maximum linepull(KN) | 30 |
| Continuous linepull(KN) | 25 |
| Maximum linespeed(km/h) | 5 |
| Bullwheel bottom of groove diameter(mm) | Φ300 |
| Bullwheel grooves number | 7 |
| Maximum suitable steelrope diameter(mm) | Φ13 |
| Maximum through connector diameter(mm) | Φ40 |
| Engine power/speed(kw/rpm) | 31/2200 |
| Dimensions(mm) | 3200*1600*2000 |
| Weight(kg) | 1500 |

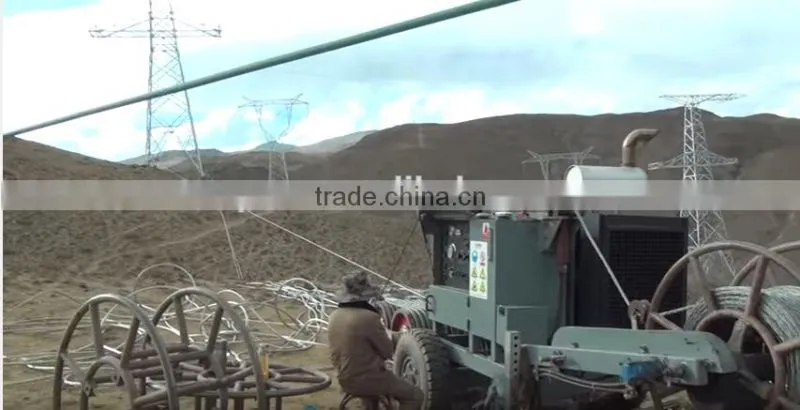

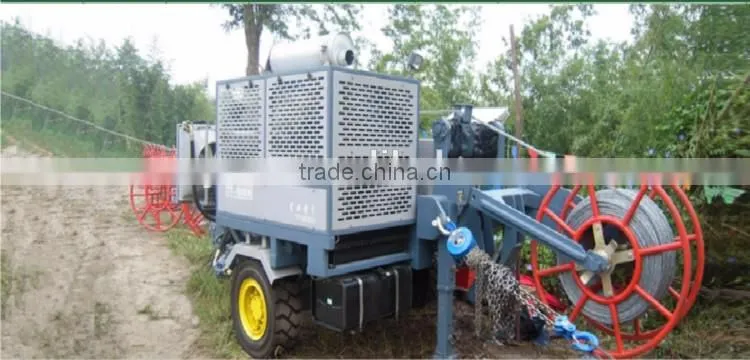

Practical Application
