Home > Products > Cable Pulling Winch > 3 Ton Gasoline Powered Reduction Gear Winch
3 Ton Gasoline Powered Reduction Gear Winch
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | OEM | |
| Model Number | JJM3Q | Power Source | Other, GASOLINE ENGINE | |
| Application | Other, power construction, power construction | Capacity | 30KN |
Product Description

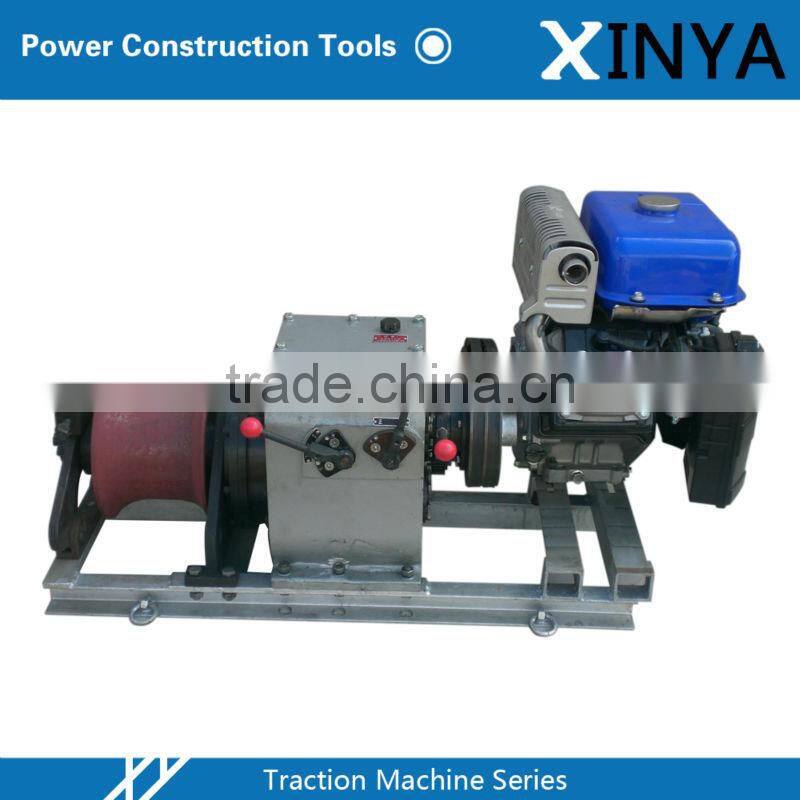

3 Ton Gasoline Powered Reduction Gear Winch
Application

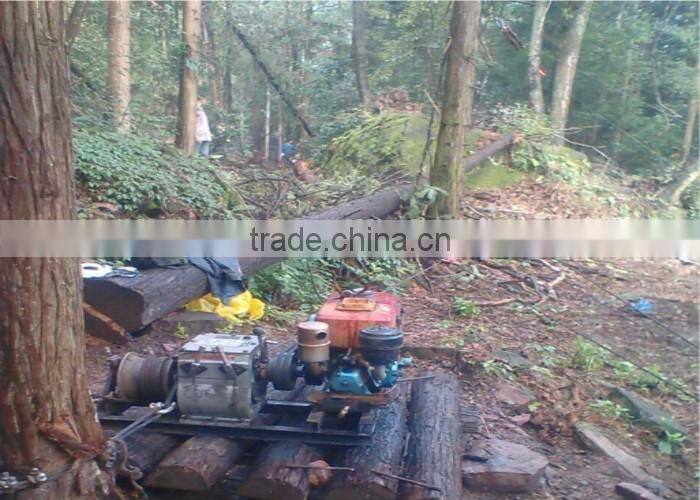

3 Ton Gasoline Powered Reduction Gear Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even
cylindrical shape and coming with steel rope.
Features
Speedy and Efficient;
Safe and Reliable;
Compact structure;
Small volume;
Light in weight;
Technical Data
| Model | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJQ-1 | HONDA Petrol engine 4 HP | (Slow) | 10.0 | 0.8 | 36 |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| JJD-1 | Electric motor 2.2kw | (Slow) | 10.0 | 0.8 | 46 |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| JJQ-3 | HONDA Petrol engine(6HP)or Homemade Petrol engine | (Slow) | 5.0 | 3.0 | 82 |
| (Fast) | 9.0 | 1.8 | |||
| Reverse | 4.0 | No Lifting! | |||
| JJC-3 | Diesel engine(4HP) | (Slow) | 6.0 | 3.0 | 108 |
| (Fast) | 11.0 | 1.8 | |||
| Reverse | 4.5 | No Lifting! | |||
| JJQ-5 | YAMAHA Petrol engine (9HP) or Homemade Gasoline engine | (Slow) | 5.0 | 5.0 | 145 |
| (Fast) | 9.0 | 2.5 | |||
| Reverse | 3.2 | No Lifting! | |||
| JJC-5 | Diesel engine(6.6HP) | (Slow) | 5.0 | 5.0 | 180 |
| (Fast) | 9.0 | 2.5 | |||
| Reverse | 3.2 | No Lifting! | |||
| JJQ-8 | HONDA Petrol engine or homemade petrol engine 13HP | (Slow) | 3.0 | 8.0 | 168 |
| (Fast) | 5.0 | 3.0 | |||
| Reverse | 3.0 | No Lifting! | |||
| JJC-8 | Diesel engine 10.5HP | (Slow) | 4.0 | 8.0 | 230 |
| (Fast) | 7.5 | 3.0 | |||
| Reverse | 3.7 | No Lifting! |
Please tell us the following information in your enquiry:
1. Engine Power ?
2. Pulling Speed(m/min) ?
3. Pulling capacity?
4. Quantity?
we'll give you a good price after confirming the above info.
Welcome to contact us by phone or e-mail, if you are interesting in our products.
Contact Us
- Changshu Xinya Machinery Manufacturing Co., Ltd.
- Contact nameWendy Jin Chat Now
- Phone0086-512-52844889
- Addressyetang district, shanghu town, Suzhou, Jiangsu
