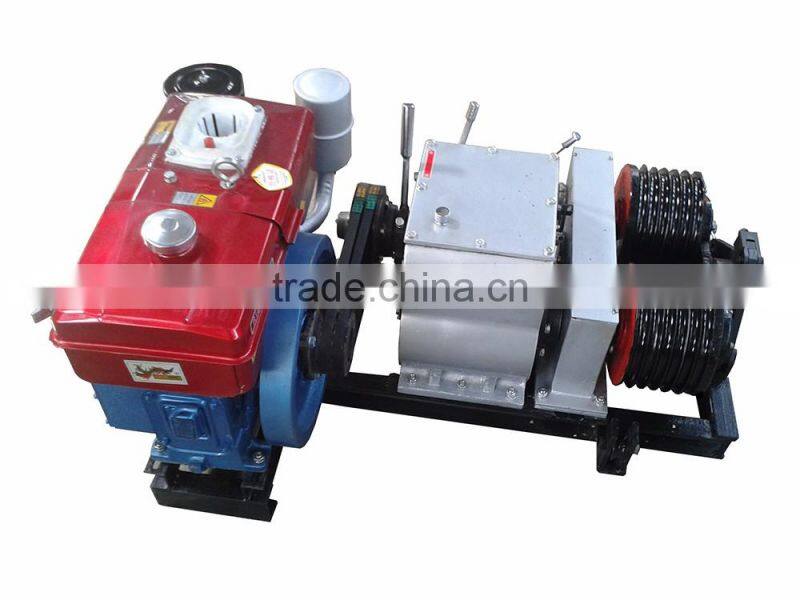

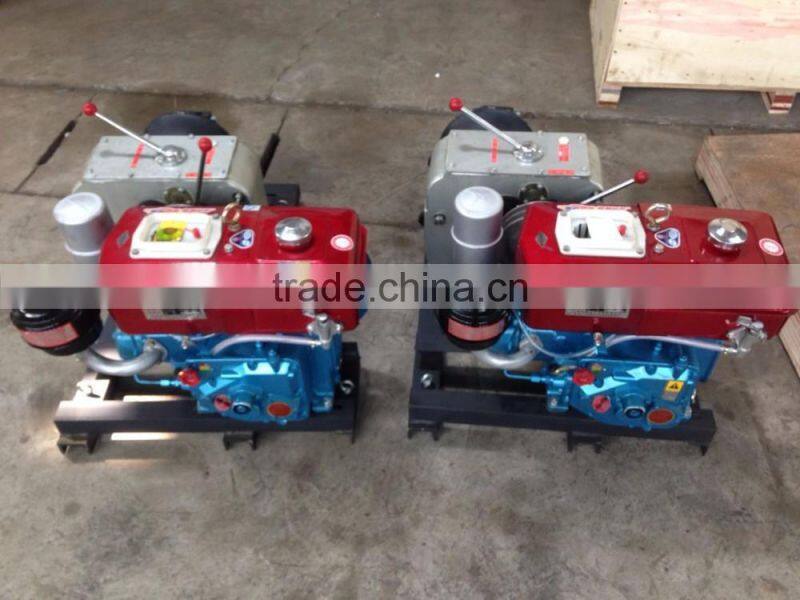

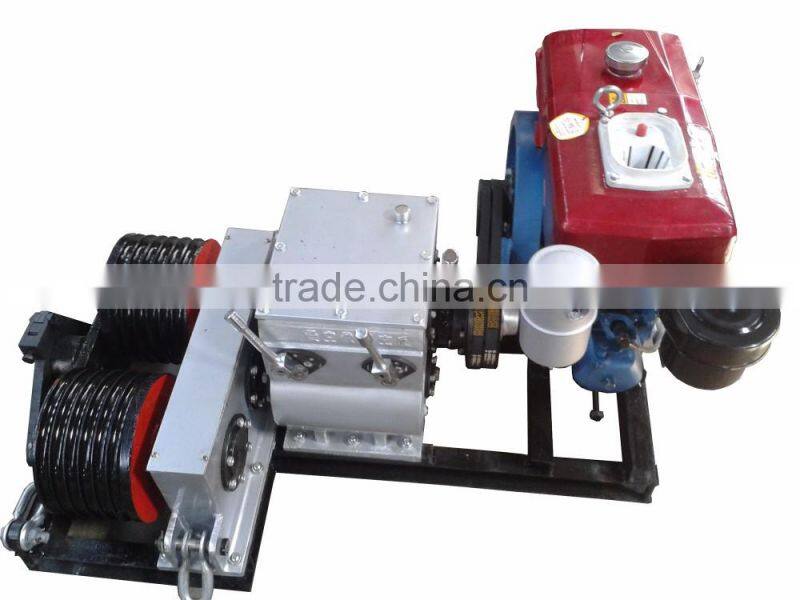

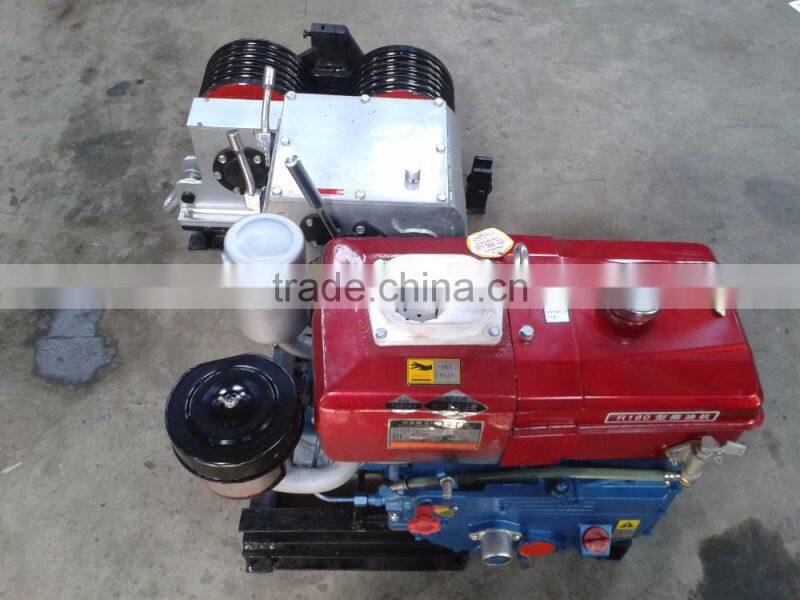

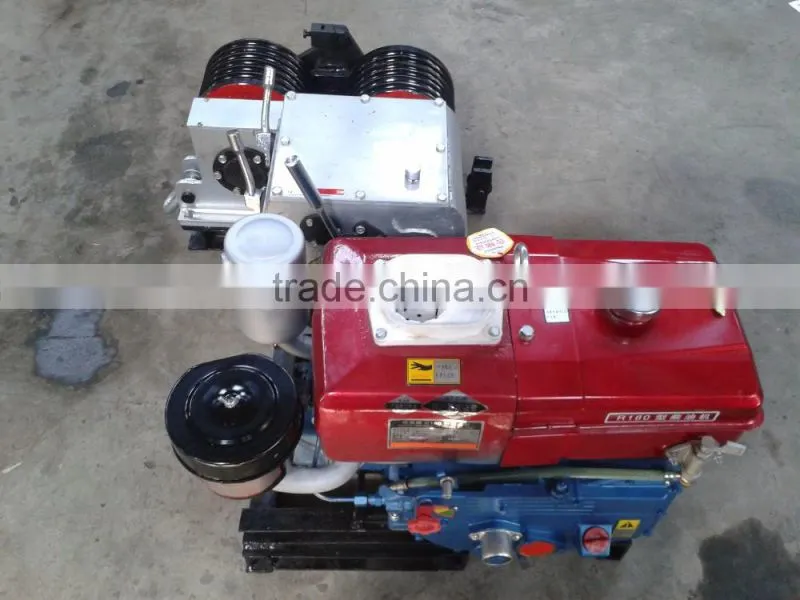

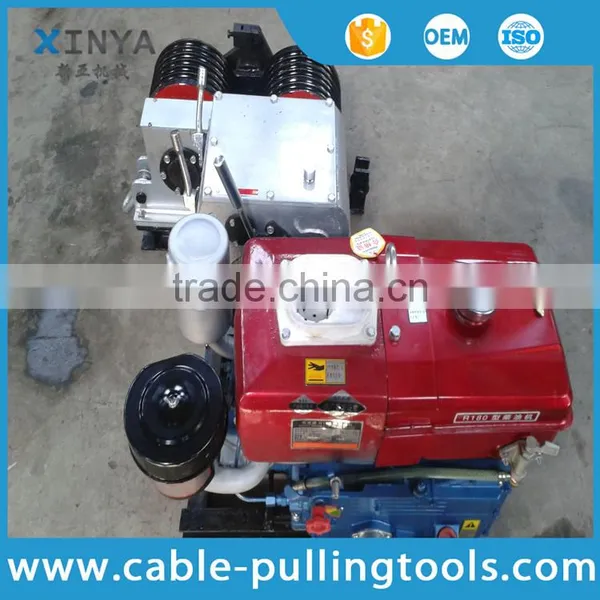

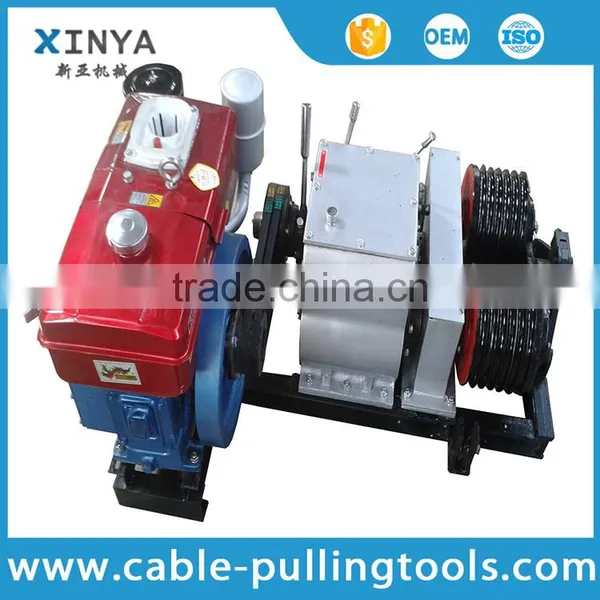

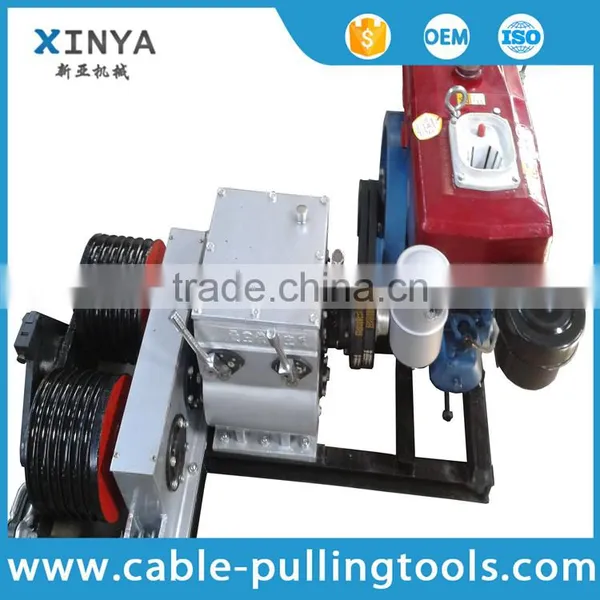

Double Capstan 5T Cable Pulling Winch With Diesel Engine
US$ 800 - 1,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
XINYA
Model Number:
GX390/186F
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double Capstan 5T Cable Pulling Winch With Gasoline EngineUS$ 500 - 1,500MOQ: 1 Set -
Winch Manufacturer 8 Ton Diesel Winch Hoist Used for Power ConstructionUS$ 500 - 1,500MOQ: 1 Set
-
Winch Manufacturer 8 Tons Cable Winch Electric Engine for Power ConstructionUS$ 500 - 800MOQ: 1 Set
-
Winch Manufacturer 8 Tons Cable Winch HONDA/YAMAHA Engine for Power ConstructionUS$ 500 - 800MOQ: 1 Set
-
Winch Manufacturer 5 Tons Cable Winch Diesel Engine for Power ConstructionUS$ 500 - 800MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
XINYA
Model Number
GX390/186F
Power Source
Other, diesel
Application
Other, power construction;, power construction
Capacity
50KN
Double Capstan 5T Cable Pulling Winch With Diesel Engine
Application
5 Ton Double Drum Diesel Cable Capstan Winch is a traction hoisting operation carried out in the filed of construction site,
mainly used in electric power ,telecommunicatons line tower,stood inthe receiving ,put on the line,the laying of cable,hauling
or lifting.
Technical Data
| Model/No. | JJM-5SC/10013 | |||||
| Engine | 186F Diesel Engine | |||||
| Power | 6.3KW,3600rpm | |||||
| Suitable Wire Rope(mm) | 15 | |||||
| Bottom diameter of Groove(mm) | 240 | |||||
| No.Of Groove | 6 | |||||
| Gear | Forward | Reverse | ||||
| Slow I | Slow II | Fast I | Fast II | Slow | Fast | |
| Pull Force(KN) | 50 | 30 | 13 | 10 | No lifting | No lifting |
| Speed(m/min) | 6 | 10 | 23 | 30 | 5 | 17 |
| Weight(KG) | 280 | |||||
| Dimension(mm) | 1330×800×600(L×W×H) | |||||
Please tell us the following information in your enquiry:
1. Engine Power ?
2. Pulling Speed(m/min) ?
3. Pulling capacity?
4. Quantity?
we'll give you a good price after confirming the above info.
Welcome to contact us by phone or e-mail, if you are interesting in our products.
