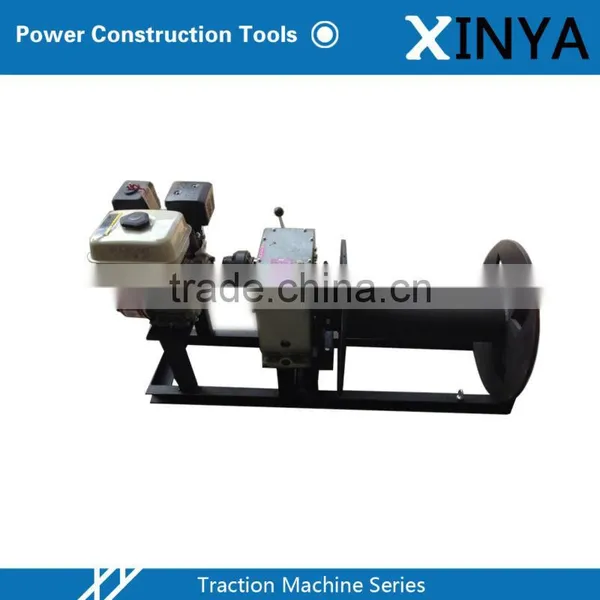

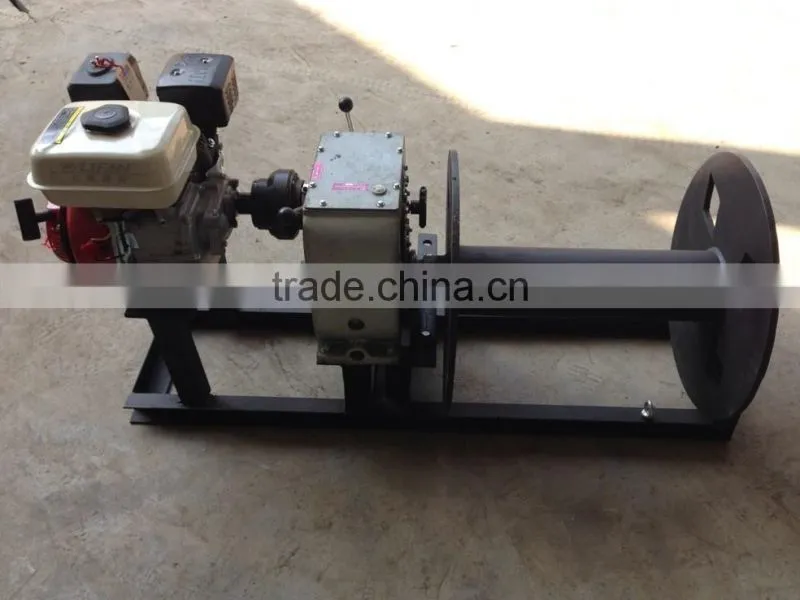

3 Ton Cable Pulling Wire Winch With Petrol Engine
Application
3 Ton Cable Pulling Wire Winch With Petrol Engine is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Features
1 small size & compact structure. The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.
2 light weight. For example, the weight of 3 ton gasoline engine powered winch is 88 kgs. Equipped with diesel engine or motor, the winch is 108 kg. Equipped with imported gasoline engine, the winch is only 82 kg, which is very convenient transported. They are especially suitable for line construction in water area and mountain. String machine equipped with a small capstan, can also be used for a vertical rod, wire. One machine with two function in the wildfield helps to reduce crop losses.
3 high efficiency. It reduces the labor intensity, improves working efficiency with less operators and convenient field command.
4 safe and reliable. The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.
5 widely used. According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1:Take First-Class Quality as Target and First-class Service.
2:As Responsibility, To Succeed By Scientific Management.
3:Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data for 3 Ton Cable Pulling Wire Winch With Petrol Engine
| Model Type | Engine Power | Gear | Pulling Speed(m/min) | Line Pull(Ton) |
| JJM3 | Petrol engine 6HP | Slow | 4 | 3 |
| Quick | 7 | 1.8 | ||
| Reverse | 3.5 |

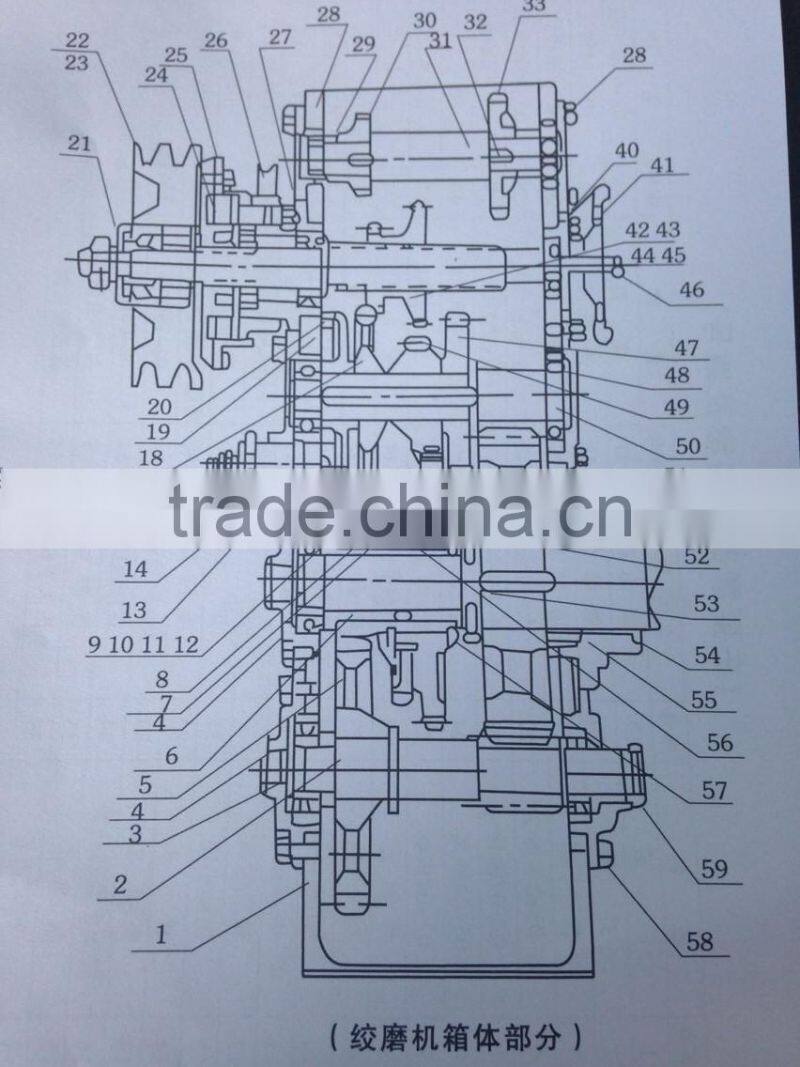

Item |
Description |
Item |
Description |
Item |
Description |
Item |
Description |
1# |
chassis |
19# |
Brake hoop |
37# |
Tank cover |
55# |
03-08bearing cap |
2# |
3#axle |
20# |
Brake disc |
38# |
Transparency cover |
56# |
05-05bearing bush |
3# |
Plug screw |
21# |
shield |
39# |
Nameplate |
57# |
4#shaft end ring |
4# |
03-05bearing cap(2) |
22# |
Big belt pulley |
40# |
03-02bearing cap |
58# |
03-06bearing cap |
5# |
0.2-07wheel gear |
23# |
Small belt pulley |
41# |
Shift hand wheel |
59# |
05-06bearing bush |
6# |
05-04bearing bush |
24# |
Clutch disc |
42# |
02-01dual gear |
60# |
underframe |
7# |
02-09wheel gear |
25# |
Linkage plate |
43# |
Shift fork |
61# |
Support plate |
8# |
Frictional disk |
26# |
Clutch handle |
44# |
Shifter shaft |
62# |
Clutch arm |
9# |
Ratchet wheel |
27# |
Clutch lining |
45# |
Shifter shaft spring |
63# |
capstan |
10# |
Pawl washer |
28# |
03-01bearing cap(2) |
46# |
1#axle |
64# |
05-03bearing bush |
11# |
07-08friction plate(6) |
29# |
0#washer(2) |
47# |
02-05wheel gear |
65# |
4#axle |
12# |
Pawl ring |
30# |
02-02wheel gear |
48# |
03-04bearing cap |
66# |
03-07bearing cap |
13# |
Brake shaft |
31# |
0#axle |
49# |
02-03wheel gear |
67# |
Support plate |
14# |
pawl |
32# |
Woodruff key |
50# |
2#axle |
68# |
Support plate bolt |
15# |
Pawl shaft |
33# |
02-04wheel gear |
51# |
02-10wheel gear |
69# |
Support plate |
16# |
Brake spring |
34# |
Belt feed lever seat |
52# |
02-08wheel gear |
70# |
05-02bearing bush |
17# |
Clamping handle |
35# |
Belt feed lever |
53# |
4#axle ring |
71# |
05-07bearing bush |
18# |
02-06wheel gear |
36# |
Shift fork handle |
54# |
Rubber seal |
72# |
Capstan catch |
