Home > Products > Cable Pulling Winch > 1 Ton Small Winch,Petrol Engine Powered Winch,Lifting Machine

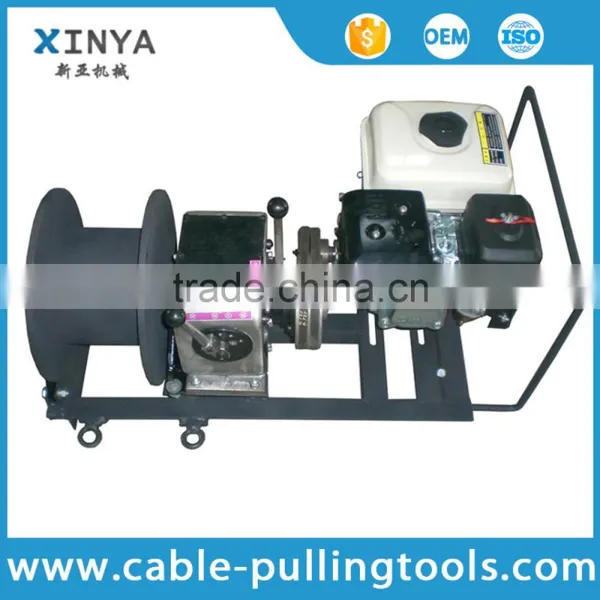

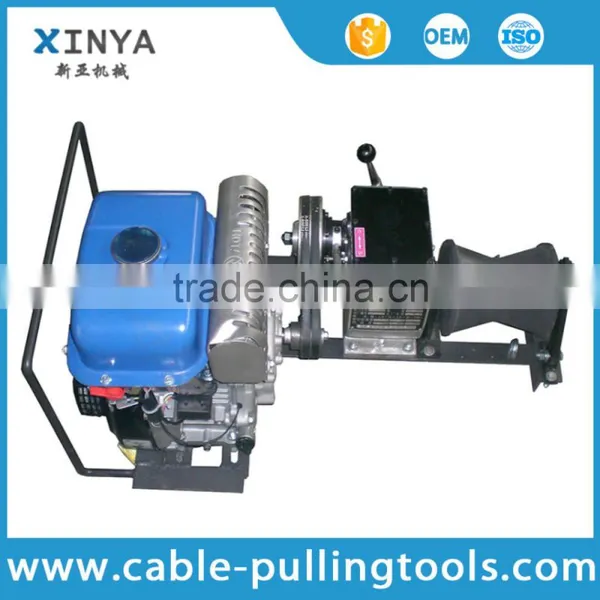

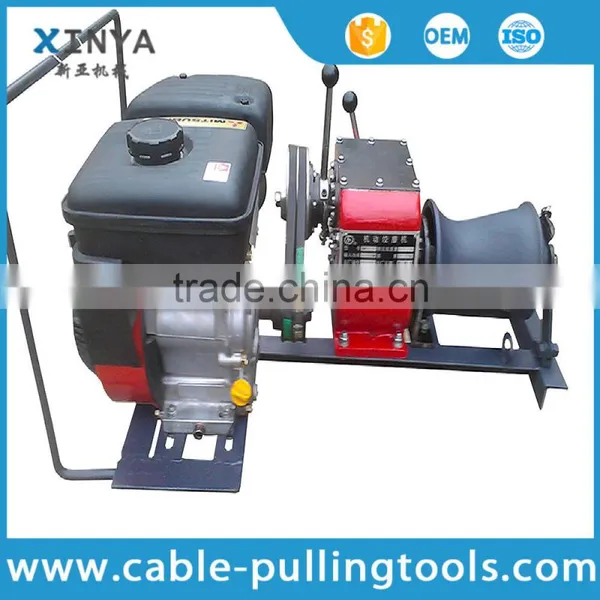

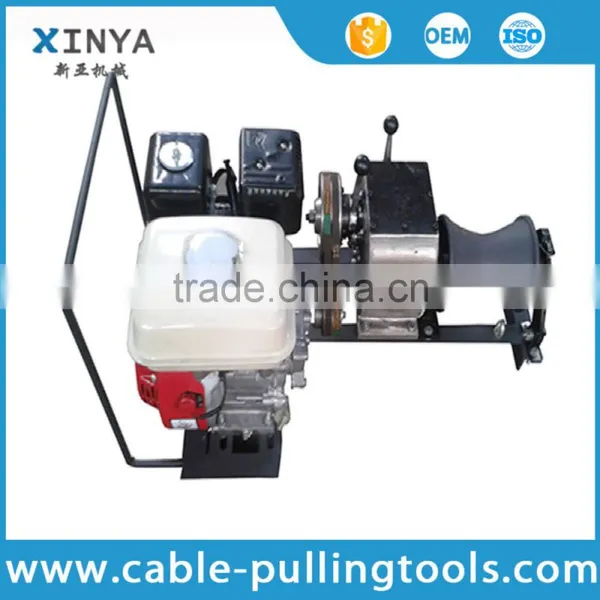

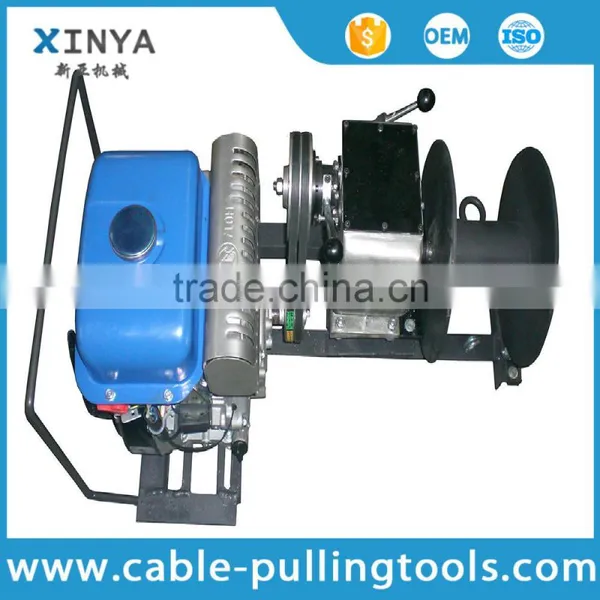

1 Ton Small Winch,Petrol Engine Powered Winch,Lifting Machine
- Shanghai
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | XINYA | |
| Model Number | JJM1Q | Power Source | Other, gasoline | |
| Application | Cranes | Capacity | 10KN |
Product Description
1 Ton Small Winch,Petrol Engine Powered Winch,Lifting Machine
Application
1 Ton Small Winch,Petrol Engine Powered Winch,Lifting Machine is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Technical Data
| Model NO. | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJM1-Q | HONDA Petrol engine 4 HP | (Slow) | 10.0 | 0. | 36 |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| Electric motor | (Slow) | 10.0 | 0.8 | 46 | |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! |
Test before shipment
Application

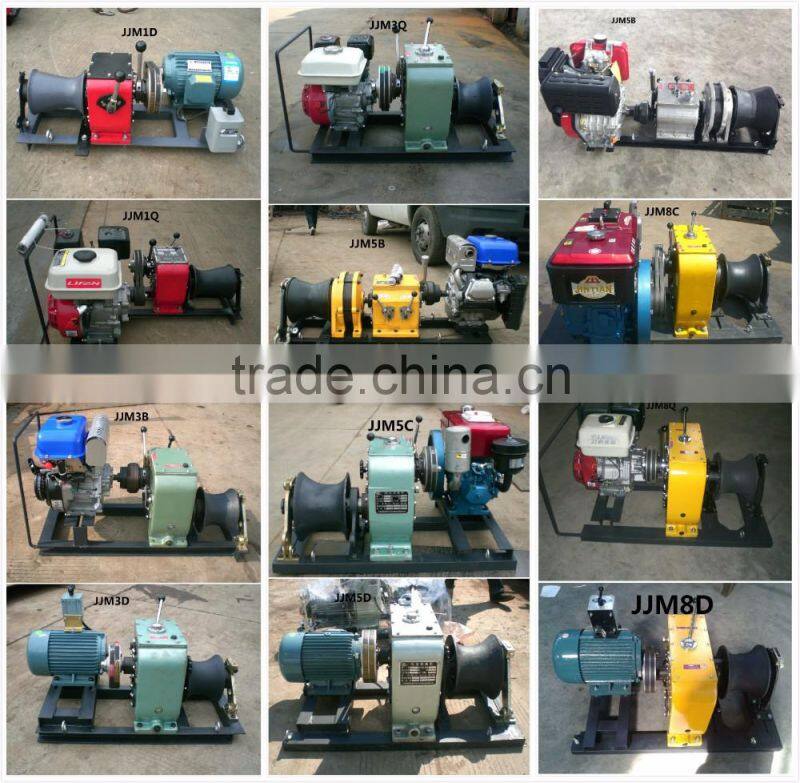

Different Types of Winches
| Model | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJQ-1 | HONDA Petrol engine 4 HP | (Slow) | 10.0 | 0.8 | 36 |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| JJD-1 | Electric motor 2.2kw | (Slow) | 10.0 | 0.8 | 46 |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| JJQ-3 | HONDA Petrol engine(6HP)or Homemade Petrol engine | (Slow) | 5.0 | 3.0 | 82 |
| (Fast) | 9.0 | 1.8 | |||
| Reverse | 4.0 | No Lifting! | |||
| JJC-3 | Diesel engine(4HP) | (Slow) | 6.0 | 3.0 | 108 |
| (Fast) | 11.0 | 1.8 | |||
| Reverse | 4.5 | No Lifting! | |||
| JJQ-5 | YAMAHA Petrol engine (9HP) or Homemade Gasoline engine | (Slow) | 5.0 | 5.0 | 145 |
| (Fast) | 9.0 | 2.5 | |||
| Reverse | 3.2 | No Lifting! | |||
| JJC-5 | Diesel engine(6.6HP) | (Slow) | 5.0 | 5.0 | 180 |
| (Fast) | 9.0 | 2.5 | |||
| Reverse | 3.2 | No Lifting! | |||
| JJQ-8 | HONDA Petrol engine or homemade petrol engine 13HP | (Slow) | 3.0 | 8.0 | 168 |
| (Fast) | 5.0 | 3.0 | |||
| Reverse | 3.0 | No Lifting! | |||
| JJC-8 | Diesel engine 10.5HP | (Slow) | 4.0 | 8.0 | 230 |
| (Fast) | 7.5 | 3.0 | |||
| Reverse | 3.7 | No Lifting! |
Please tell us the following information in your enquiry:
1. Engine Power ?
2. Pulling Speed(m/min) ?
3. Pulling capacity?
we'll give you a good price after confirming the above info.
Welcome to contact us by phone or e-mail, if you are interesting in our products.
