Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Jack > 660mm Nylon Large Diameter Bundled Conductor Pulley Stringing Block Suitable For ACSR

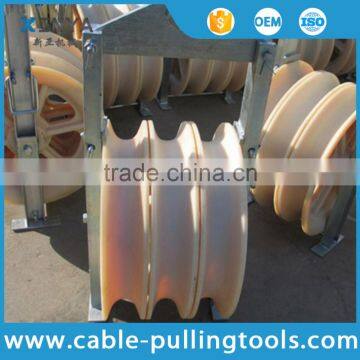

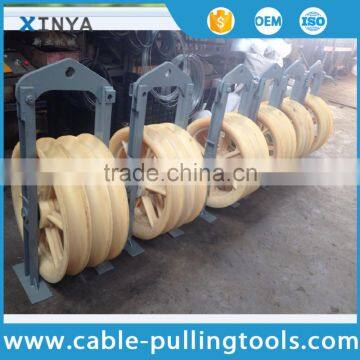

660mm Nylon Large Diameter Bundled Conductor Pulley Stringing Block Suitable For ACSR
US$ 25 - 600
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Xinya
Model Number:
model 660
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
508mm Large Diameter Bundled Conductor Pulley Stringing BlockUS$ 50 - 1,000MOQ: 10 Pieces -
Coir Rope Aluminum Wheel Hoisting Pulley BlockUS$ 30 - 120MOQ: 10 Pieces
-
Large 660mm Diameter Bundled Conductor Pulley Stringing Block With Nylon WheelUS$ 50 - 400MOQ: 10 Pieces
-
508mm Large Diameter Bundled Conductor Pulley Large Diameter Stringing Block for Line Stringing MachineUS$ 50 - 800MOQ: 10 Pieces
-
Overhead Transmission Line OPGW Stringing Pulley Blocks 660x100mmUS$ 10 - 50MOQ: 5 Pieces
Place of Origin
Jiangsu, China
Brand Name
Xinya
Model Number
model 660
Type
Other, stringing block
660mm Nylon Large Diameter Bundled Conductor Pulley Stringing Block Suitable For ACSR
Application
660mm Nylon Large Diameter Bundled Conductor Pulley Stringing Block Suitable For ACSR is used for stringing wire in electric power transmission line construction.We have designed series of these stringing blocks for single conductor, 2 bundled conductors, 4 bundled conductors and 6 bundled conductors stringing.
Note:
1.Maximum suitable conductor ACSR500
2.Block dimension (outside diameter *root diameter*sheave width)Φ660*Φ560*100mm
Technical Data of 660mm Nylon Large Diameter Bundled Conductor Pulley Stringing Block Suitable For ACSR
| Model | Number of wheel | Rated load(KN) | Weight(kg) | Features |
| SHD660 | 1 | 20 | 30 | Rubber lined aluminous sheave |
| SHS660 | 3 | 40 | 106 | Middle:cast steel sheave conductor:cementation aluminous sheave |
| SHW660 | 5 | 60 | 150 | |
| SHDN660 | 1 | 20 | 24 | MC nylon sheave |
| SHSLN660 | 3 | 40 | 92 | Middle:MC nylon sheave conductor:cementation aluminous sheave |
| SHWLN660 | 5 | 60 | 120 | |
| SHSQN660 | 3 | 40 | 76 | MC nylon sheave |
| SHWQN660 | 5 | 60 | 110 | |
| SHQZ660 | 7 | 80 | 268 | Middle:cast steel sheave conductor:cementation aluminous wheel |
| SHQ660A | 7 | 80 | 190 | Middle:cast steel sheave conductor:MC nylon wheel |
