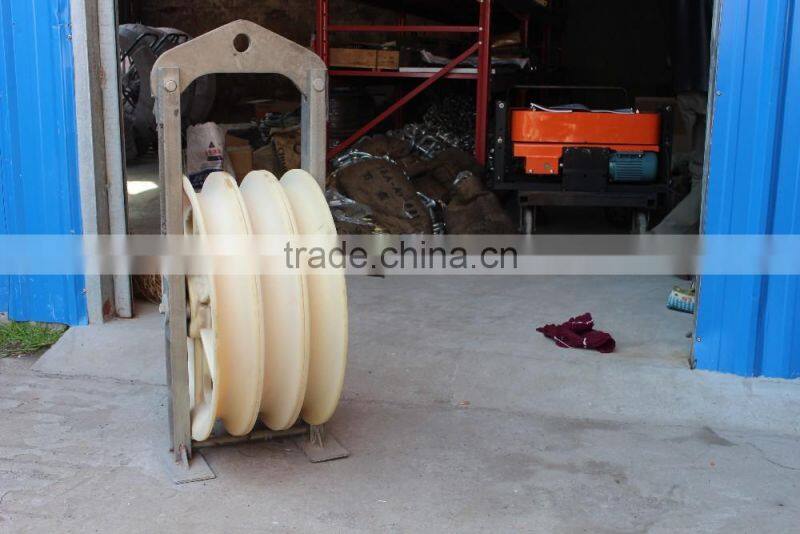

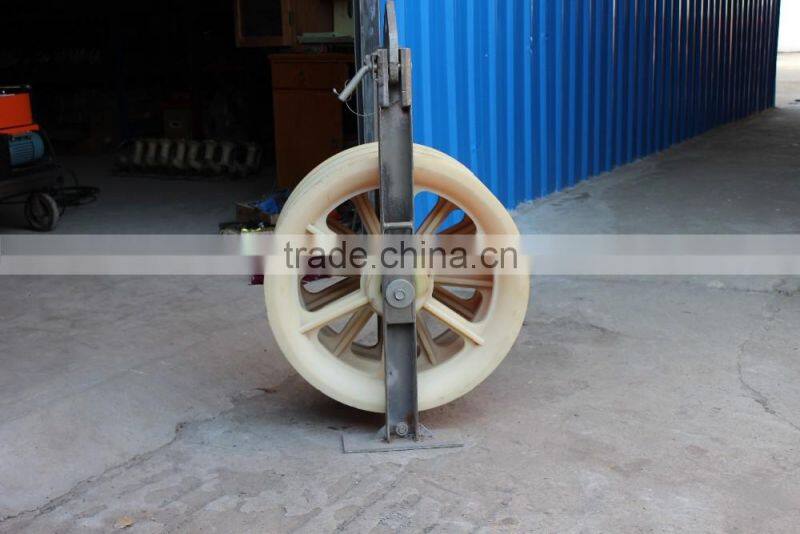

508mm Large Diameter Bundled Conductor Pulley Stringing Block
US$ 50 - 1,000
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Xinya
Model Number:
model 508
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Coir Rope Aluminum Wheel Hoisting Pulley BlockUS$ 30 - 120MOQ: 10 Pieces -
Large 660mm Diameter Bundled Conductor Pulley Stringing Block With Nylon WheelUS$ 50 - 400MOQ: 10 Pieces
-
508mm Large Diameter Bundled Conductor Pulley Large Diameter Stringing Block for Line Stringing MachineUS$ 50 - 800MOQ: 10 Pieces
-
Overhead Transmission Line OPGW Stringing Pulley Blocks 660x100mmUS$ 10 - 50MOQ: 5 Pieces
-
V Shaped Cable Rollers With Zinc Plate Finish With Steel Roller 60mm DiameterUS$ 20 - 100MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
Xinya
Model Number
model 508
Type
Other, stringing block
508mm Large diameter bundled conductor pulley stringing block
Application
508mm Large diameter bundled conductor pulley stringing block is used for stringing wire in electric power transmission line construction.We have designed series of these stringing blocks for single conductor, 2 bundled conductor and 4 bundled conductors stringing.
Note:
1.Maximum suitable conductor ACSR400
2.Block dimension (outside diameter *root diameter*sheave width)Φ508*Φ408*75mm
Technical Data of 508mm Large diameter bundled conductor pulley stringing block
| Model | Number of wheel | Rated load(KN) | Weight(kg) | Features |
| SHD508 | 1 | 20 | 18 | Rubber lined aluminous sheave |
| SHS508 | 3 | 40 | 61 | Middle:cast steel sheave conductor:rubber lined aluminous sheave |
| SHW508 | 5 | 60 | 93 | |
| SHDN508 | 1 | 20 | 16 | MC nylon sheave |
| SHSLN508 | 3 | 40 | 47 | Middle:MC nylon sheave conductor:rubber lined aluminous sheave |
| SHWLN508 | 5 | 60 | 79 | |
| SHSQN508 | 3 | 40 | 43 | MC nylon sheave |
| SHWQN508 | 5 | 60 | 70 |
