Large Diameter Bundled Conductor Pulley Stringing Block for 822 Model
US$ 30 - 1,000
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Xinya
Model Number:
model 822
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
660mm Nylon Large Diameter Bundled Conductor Pulley Stringing Block Suitable For ACSRUS$ 25 - 600MOQ: 10 Pieces -
508mm Large Diameter Bundled Conductor Pulley Stringing BlockUS$ 50 - 1,000MOQ: 10 Pieces
-
Coir Rope Aluminum Wheel Hoisting Pulley BlockUS$ 30 - 120MOQ: 10 Pieces
-
Large 660mm Diameter Bundled Conductor Pulley Stringing Block With Nylon WheelUS$ 50 - 400MOQ: 10 Pieces
-
508mm Large Diameter Bundled Conductor Pulley Large Diameter Stringing Block for Line Stringing MachineUS$ 50 - 800MOQ: 10 Pieces
Place of Origin
Jiangsu, China
Brand Name
Xinya
Model Number
model 822
Type
Other, stringing block

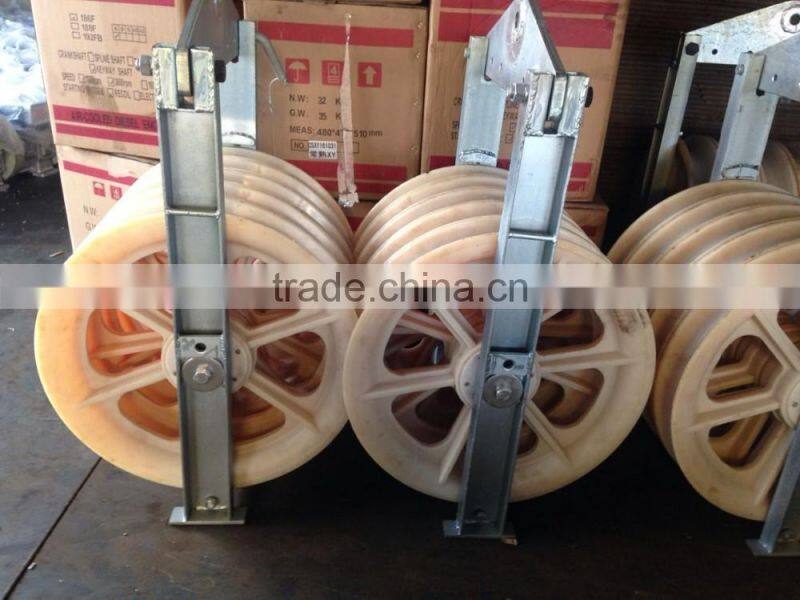

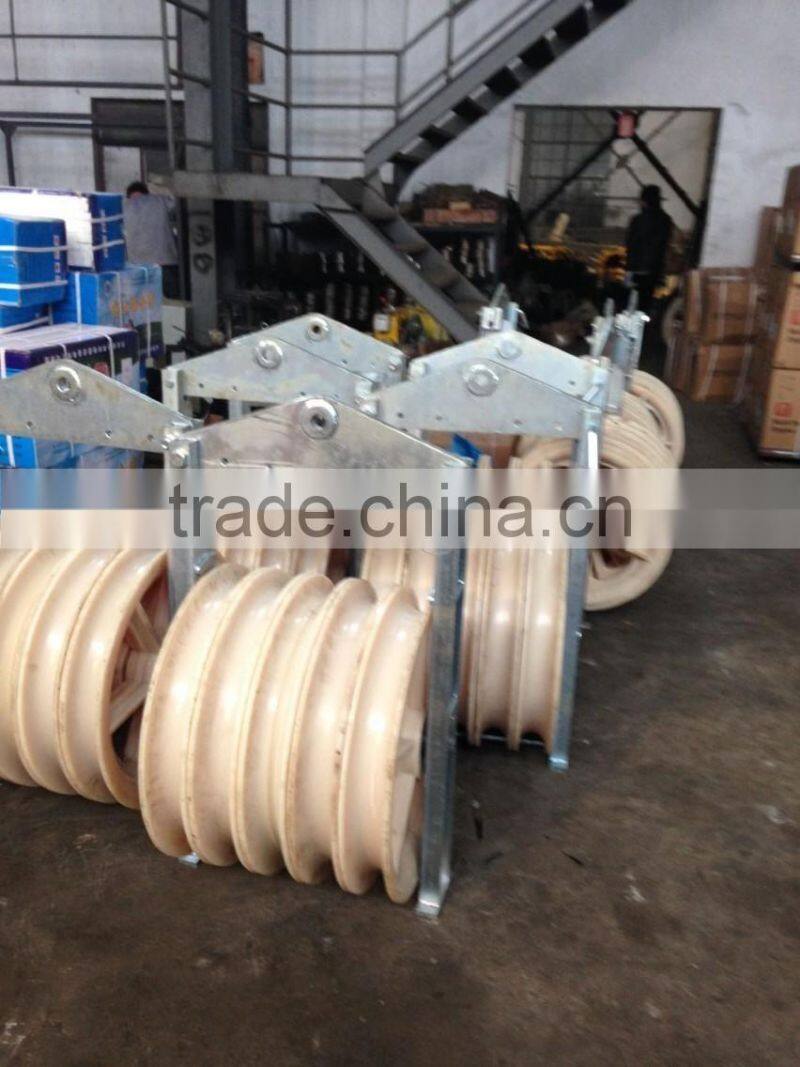

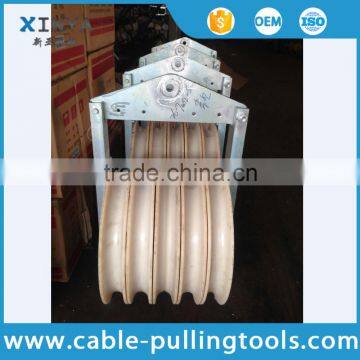

Large diameter bundled conductor pulley stringing block for 822 model
Application
Large diameter bundled conductor pulley stringing block for 822 model is used for stringing wire in electric power transmission line construction.
Note:
1.Maximum suitable conductor ACSR630
2.Sheave dimension (outside diameter *root diameter*sheave width)Φ822*Φ710*110mm
3.Rubber lined MC nylon sheave for conductor can be customized.
Technical Data of Large diameter bundled conductor pulley stringing block for 822 model
| Model | Number of wheel | Rated load(KN) | Weight(kg) | Features |
| SHDN822 | 1 | 30 | 40 | NC nylon sheave |
| SHSQN822 | 3 | 60 | 118 | |
| SHWQN822 | 5 | 120 | 170 | |
| SHQ822 | 7 | 120 | 285 |

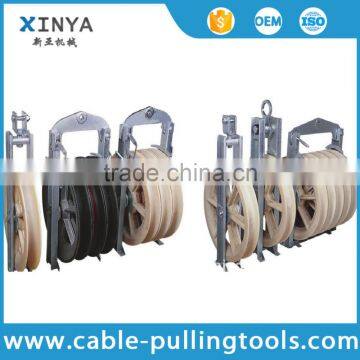

Middle:cast steel sheave Conductor: MC nylon sheave |
| SHJ822 | 9 | 150 | 445 |
