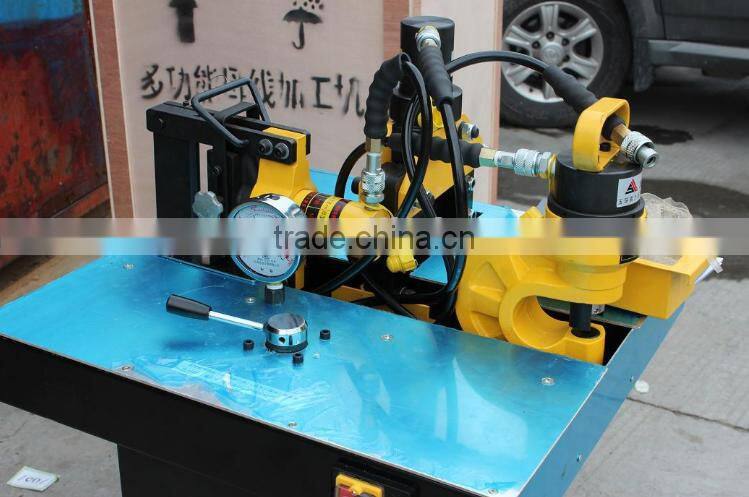

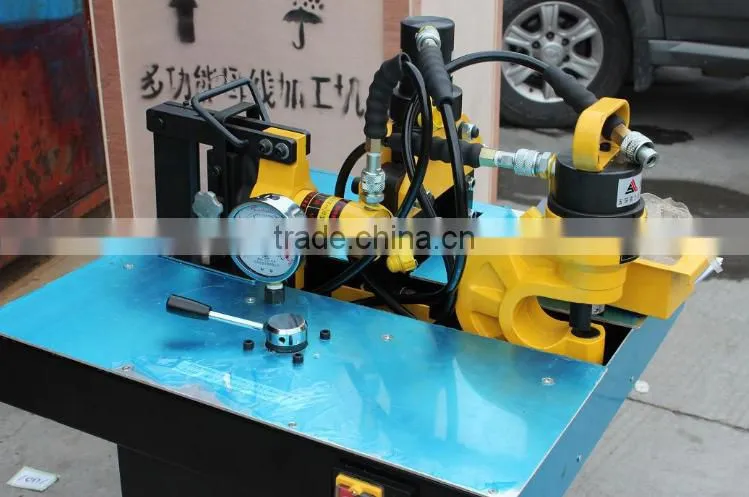

Multi-functional hydraulic busbar punching cutting bending machine DHY-150
Application
Multi-functional hydraulic busbar punching cutting bending machine DHY-150 is suitable for the site construction in the large workshop and transmission and distribution engineering construction site,ect..Each function has a calibration instructions, it can observe the work point of view to ensure the construction quality of the user.This machine is equipped with three functions that punching, cutting and bending, It is easy to operate with optional foot switch and line switch.Electric pump adopt aluminum alloy shell motor,so it has light weight and low noise.
Technical Data of Multi-functional hydraulic busbar punching cutting bending machine DHY-150
| Name | Multi-functional hydraulic busbar punching cutting bending machine DHY-150 |
| Functions | Three function:cutting, punching, bending |
| Dimension | 700mm(L)*700mm(W)*1100mm(H) |
| Input voltage | Single phase 50Hz,220V |
| Rating oil pressure | 700kg/cm2 |
| Cutting force | 20T |
| Cutting range | 150mm(Width)*12mm(Thickness) |
| Punching force | 31T |
| Punching range | Impact(Φ7,Φ9,Φ10.5,Φ13.8,Φ17,Φ20.5) |
| Distance from hole to sheet side | 95mm |
| Weight | 170kg |
