Anti Twisted Pilot Rope Hexagon With 12 Strands Galvanized
US$ 1 - 3
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Steel Grade:
High Carbon Steel, steel
Standard:
GB
Wire Gauge:
5.5-20mm, 9mm-28mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Anti Twisted Steel Wire Rope Hexagon 12 Strands 18 StrandsUS$ 1 - 3MOQ: 1000 Meters -
Galvanized Anti-twisting Braided Wire RopeNegotiableMOQ: 500 Meters
-
Anti-twisting Knitted Wire RopeNegotiableMOQ: 500 Meters
-
Anti-twisting Woven Steel Wire RopeNegotiableMOQ: 500 Meters
-
Anti-twisting Knitted Steel Wire RopeUS$ 1 - 10MOQ: 500 Meters
Steel Grade
High Carbon Steel, steel
Standard
GB
Wire Gauge
5.5-20mm, 9mm-28mm
Place of Origin
Jiangsu, China
Type
Other, Galvanized, anti twisted steel wire rope
Application
Construction
Special Use
Cold Heading Steel
Model Number
NT HT ST, Hexagon with 12 strands & 18 strands
Brand Name
XINYA

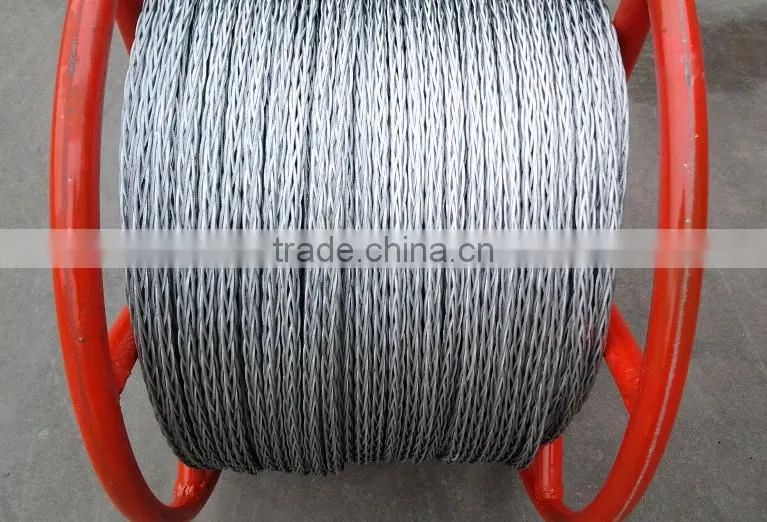

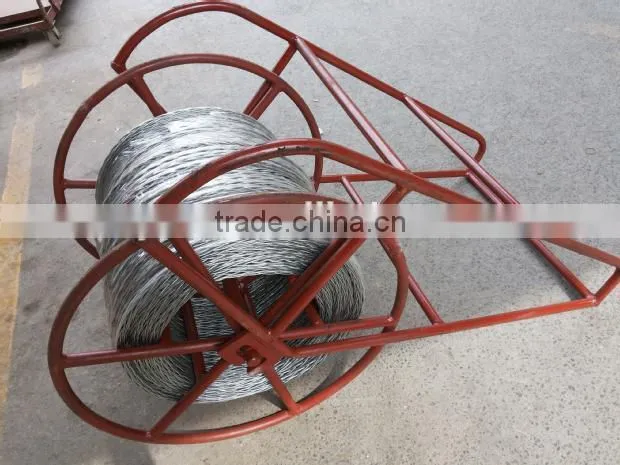

Anti Twisted Pilot Rope Hexagon with 12 strands galvanized
Application
It is specially braided from galvanized steel wire and widely used as pilot rope in overhead power transmission line stringing operation.
Features
- The rotation angle is zero,and the combined rotation torque is also zero while it is bearing tension at free state .It is suitable to be used in various fields which require wire rope with no rotation .
- The wire rope has fine flexibility with long using life .There is no twist and no tangling up when the tension released. You can change the length and repair local damage by grafting ,which will not reduce the flexibility.
- Hexagon is more suitable for puller, tensioner,winch, hoisting etc .
Technical Data
| Model | Structure |
Nominal Dia (mm) |
Single bundle Dia (mm) |
Ref Weight (kg/100m) |
Breaking Force(KN) |
Standard Length (m) |
|
| HL9-12×19W | Hexagon with 12 strands | 9 | 2.0 | 26.69 | 55.0 | 1000 | |
| HL11-12×19W | Hexagon with 12 strands | 11 | 2.5 | 45.73 | 80.5 | 1000 | |
| HL13-12×19W | Hexagon with 12 strands | 13 | 3.0 | 57.96 | 120.0 | 1000 | |
| HL16-12×19W | Hexagon with 12 strands | 16 | 3.5 | 82.80 | 158.0 | 1000 | |
| HL18-12×19W | Hexagon with 12 strands | 18 | 4.0 | 103.82 | 210.0 | 1000 | |
| HL20-12×T25Fi | Hexagon with 12 strands | 20 | 4.5 | 129.62 | 250.0 | 800 | |
| HL22-12×T25Fi | Hexagon with 12 strands | 22 | 4.8 | 147.88 | 320.0 | 800 | |
| HL24-12×T25Fi | Hexagon with 12 strands | 24 | 5.0-5.2 | 160.23 | 360.0 | 800 | |
| HL26-12×T25Fi | Hexagon with 12 strands | 26 | 5.5-5.6 | 193.71 | 420.0 | 700 | |
| HL28-12×T29Fi | Hexagon with 12 strands | 28 | 6.0 | 230.50 | 480.0 | 500 | |
| HL30-12×T29Fi | Hexagon with 12 strands | 30 | 6.5 | 272.04 | 540.0 | 500 | |
| HL20-18×19W | Hexagon with 18 strands | 20 | 4.0 | 159.80 | 300.0 | 800 | |
| HL22-18×T25Fi | Hexagon with 18 strands | 22 | 4.2 | 189.80 | 389.0 | 800 | |
| HL24-18×T25Fi | Hexagon with 18 strands | 24 | 4.8 | 216.20 | 440.0 | 800 | |
| HL26-18×T25Fi | Hexagon with 18 strands | 26 | 5.2 | 276.80 | 480.0 | 700 | |
| HL28-18×T29Fi | Hexagon with 18 strands | 28 | 5.4 | 301.20 | 580.0 | 500 | |
| HL30-18×T29Fi | Hexagon with 18 strands | 30 | 5.6 | 361.60 | 658.0 | 500 | |
| HL32-18×T29Fi | Hexagon with 18 strands | 32 | 6.0 | 423.00 | 780.0 | 500 |
Note:
The single length of rope can be made according to your requirement.
