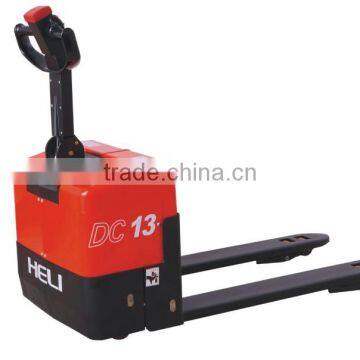

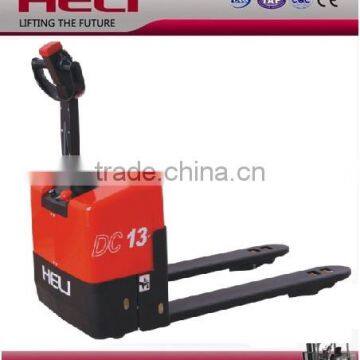

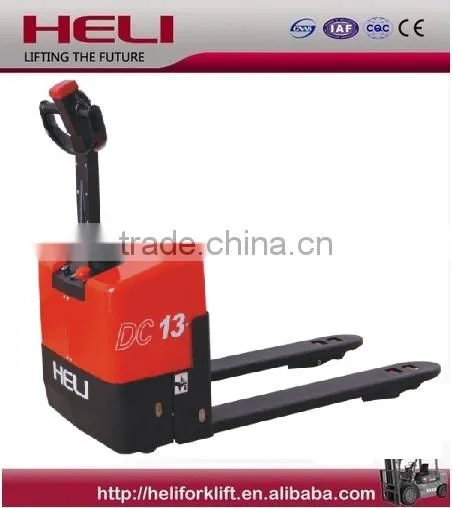

Heli Brand Electric Pallet Truck Battery Charger

Heli Brand Electric Pallet Truck Battery Charger thumbnail-1
Heli Brand Electric Pallet Truck Battery Charger thumbnail-2
Heli Brand Electric Pallet Truck Battery Charger thumbnail-3
Heli Brand Electric Pallet Truck Battery Charger thumbnail-4
Heli Brand Electric Pallet Truck Battery Charger photo-1
Heli Brand Electric Pallet Truck Battery Charger photo-2
Heli Brand Electric Pallet Truck Battery Charger photo-3
Heli Brand Electric Pallet Truck Battery Charger photo-4
US$ 2,500 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
HELI BRAND
Contact Supplier Request Quote Chat Now
Shanghai Hanli Industrial Vehicle Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name HELI BRAND
Model Number CBD13
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 1300kg
Max. Lifting Height 205mm
Min. Lifting Height 85mm
Fork Length 1150mm
Fork Width 160mm
Overall Dimensions 1520*704mm (L*W)
Certification ISO9001,ISO14001,OHASA18001,CE
After-sales Service Provided No overseas service provided
  Feature Unit
1 Model CBD13
2 Configuration No.   600
3 Load capacity kg 1300
4 Load center mm 600
5 Wheel base mm 1165
6 Operating type   Walkie
  Wheels
7 Wheels type   PU
8 Wheel quantity
Driving wheel/Balance wheel /Bearing wheel		   1/2/4
9 Driving wheel size mm ¢252×67
10 Balance wheel size mm ¢80×58
(/Double wheels)
11 Bearing wheel size mm ¢99.5×40
  Dimension
12 Min.fork lowered  height mm 85
13 Max.fork lifting height mm 205
14 Max.lifting height mm 120
15 Overall fork width mm 540/600/685
16 Fork length mm 1150/1200
17 Fork width mm 160
18 Fork thickness mm 44
19 Overall length mm 1520
20 Overall width mm 704
21 Overall height(With handle) mm 1255
22 Overall height(Without handle) mm 680
23 Min.Turning radius mm 1400
24 Min.Aisle width for pallets 800×1200 mm 1760
25 Min.Aisle width for pallets 1000×1200 mm 1805
  Performance
26 Travel speed,laden/unladen km/h 3.5/4
27 Lift speed,laden/unladen mm/s 56/60
28 Travel speed,laden/unladen mm/s 57/59
29 Gradeability,laden/unladen % 5/7
  Electrical configuration
30 Drive motor  KW DC 0.63
31 Lift motor   KW DC 0.8
32 Steering motor KW /
33 Battery voltage / capacity V/Ah 24/70
34 Brake   Electromagnetic / Regenerative
35 Controller   CURTIS 1243
  Weight
36 Battery weight kg 48
37 Service weight with battery kg 285

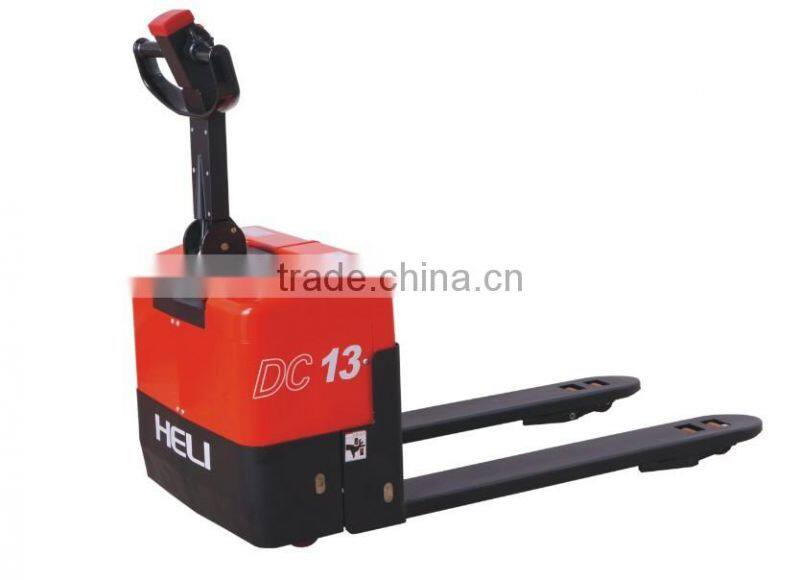

 Heli Brand electric pallet truck battery charger

Why Choose Heli ?

1.Well-Know Trademark Of China

2. First Brand of in Forklift Market in China

3. First Brand Of Indepent Innovation Forklift in China

4. AAA-Class Quality Service of China

5. Professional design team and work fast sales department of your service

6. Ranking 8th in Forklift Manufacturing Industry in the World

7. Alibaba golden supplier,VIP trade assurance supplier

8. Professional Components(Forklift Parts) Manufacturing,So that We can supply whole series HELI forklift parts



HELI Parts Room Show



Heli Forklift Show



World Wide Market

HELI is authorized with the independent  export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60  countries.

FAQ

1. What is your terms of package?

A: We pack our goods with HELI brand  boxes and cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

2. What is your terms of payment?

A: We can accept the terms of payment is L/C at sight, T/T, D/P, Western Union ,cash .

3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF.

4. How about your delivery time?

A: Generally, it will take two week after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.If we have stock about your order,just 1-2 Days.

5. What is your sample policy?

A: We are honored to offer you samples.Please pay the sample charge and postage in advance. We accept the sample payment via Western Union or T/T.

6: What's the MOQ?

The minimum order amount should be at least USD10000.
