Home > Transportation > Forklifts & Parts > Forklift > Top1 Manufacturer Anhui Heli Brand 3 Ton Forklift Specification

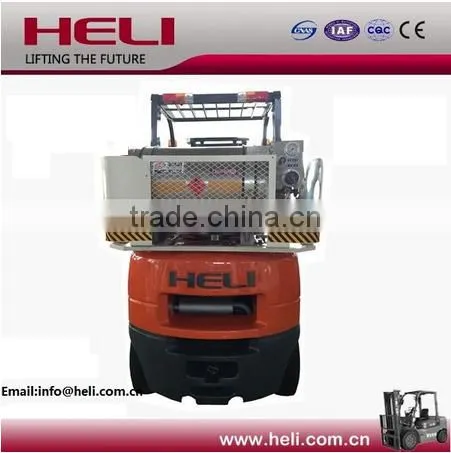

Top1 Manufacturer Anhui Heli Brand 3 Ton Forklift Specification
US$ 8,500 - 11,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
HELI BRAND
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Top1 Manufacturer HELI New H3 Series Gasoline 3 Ton Forklift Truck PriceUS$ 1 - 20,000MOQ: 1 Acre -
ANHUI HELI BRAND 3.0T GASOLINE NISSAN ENGINE LPG FORKLIFT CPQYD30 WITH CE FOR SALEUS$ 25,000 - 40,000MOQ: 1 Set
-
China Top1 Manufacturer Heli Brand 3 Ton Lpg ForkliftUS$ 12,000 - 14,000MOQ: 1 Set
-
Top1 Manufacturer Heli Brand the Best Forklift BrandUS$ 11,000 - 20,000MOQ: 1 Set
-
Anhui Heli Brand Manual Pallet Truck HandUS$ 100 - 1,000MOQ: 1 Set
Condition
New
Place of Origin
Anhui, China
Brand Name
HELI BRAND
Model Number
CPQYD30-BFTC
Type
Other, COUNTER BALANCED FORKLIFT
Power Souce
CNG Gas Engine
Rated Loading Capacity
3000kg
Max. Lifting Height
4250mm ( Optional )
Min. Lifting Height
135mm
Fork Length
1070mm
Fork Width
125mm
Overall Dimensions
2702*1225*2190mm
Certification
ISO9001,ISO14001,OHASA18001,CE
After-sales Service Provided
No overseas service provided
| Heli Forklift Characteristics | ||
| Manufacturer | HELI | |
| Model | CPQYD30-BFTC | |
| Rated capacity | kg | 3000 |
| Load center | mm | 500 |
| Power unit | CNG | |
| Operation | Seated | |
| Dimensions | ||
| Lift height (standard ) | mm | 3000 |
| Height mast retracted (upright) | mm | 2070 |
| Overall max. lifting height (with backrest) | mm | 4250 |
| Free lift height | mm | 160 |
| Overall height (overhead guard ) | mm | 2190 |
| Min. ground clearance under mast | mm | 135 |
| Distance from seat to overhead guard | mm | 1135 |
| Overall length (with forks ) | mm | 3772 |
| Wheelbase | mm | 1700 |
| Overhang (front/rear) | mm | 487/515 |
| Fork length | mm | 1070 |
| Overall width | mm | 1225 |
| Adjustable distance of forks | mm | 250/1055 |
| Tread base ( front/rear ) | mm | 1000/970 |
| Fork width/thickness | mm | 125/45 |
| Min. turining radius | mm | 2400 |
| Mast tilt angle (forward/backward ) | deg | 6°/12° |
| Cylinder volume | L | 90 |
| Performance | ||
| Lifting speed (laden) | mm/s | 420 |
| Lowering speed (laden) | mm/s | 500 |
| Travelling speed (laden/unladen) | km/h | 18/19 |
| Max.gradeability (laden/unladen) | % | 20/17 |
| Tyres | ||
| Front tyres | 2-28x9-15-12PR | |
| Rear tyres | 2-6.50-10-10PR | |
| Driving system | ||
| Battery voltage/capacity | V/Ah | 12/80 |
| Engine manufacturer /model | Baofa/E25 | |
| Cylinders /displacement | /L | 4/2.54 |
| Rated power/speed | Kw/rpm | 38/2650 |
| Max.torque/speed | Nm/rpm | 165/1500 |
| Transmission number of speed fw/bwd type | 1-1 automatic | |
| Weight | ||
| Service weight | kg | 4370 |
For 3 ton diesel forklift Series ,we have New H3 Series 3 ton forklift ,h2000 series,K series.Please visit our website for visiting.
Why Choose Heli Forklift As Your Forklift And Parts Supplier?
1.Well-Know Trademark Of China
2.First Brand of in Forklift Market in China
3.First Brand Of Indepent Innovation Forklift in China
4.AAA-Class Quality Service of China
5.Professional design team and work fast sales department of your service
6.Alibaba golden supplier,VIP trade assurance supplier
7.Ranking 8th in Forklift Manufacturing Industry in the World
8.Ourselves' Product R&D PlatForm
9.Perfect Manufacturing System
10.Professional Components(Forklift Parts) Manufacturing,So that We can supply whole series HELI forklift parts

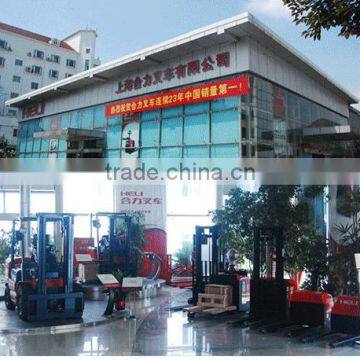

HELI Forklift Parts Warehouse&Room Show:

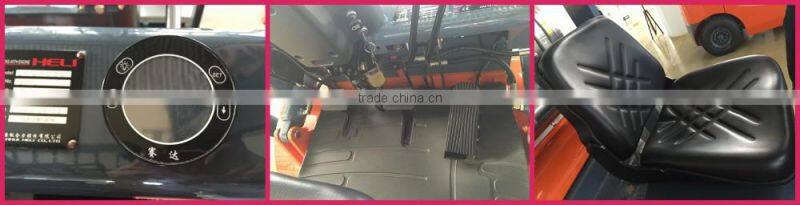

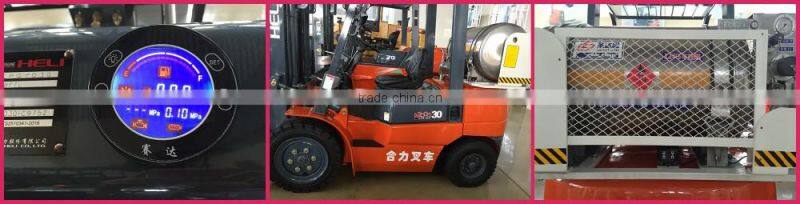

What Are the Main Products ?(Heli Forklift Show)
HELI Forklift Company Culture Show:
Video Demo
Online video demo of heli forklift: https://youtu.be/GAv9g8DoVxA
