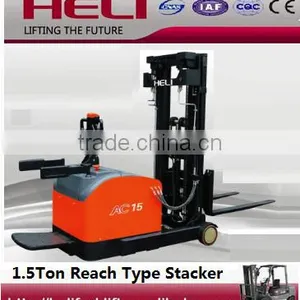

China Top1 Brand 1500KG Heli Electric Reach Stacker

China Top1 Brand 1500KG Heli Electric Reach Stacker thumbnail-1
China Top1 Brand 1500KG Heli Electric Reach Stacker thumbnail-2
China Top1 Brand 1500KG Heli Electric Reach Stacker thumbnail-3

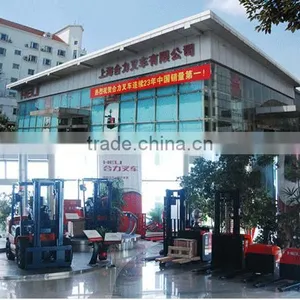

China Top1 Brand 1500KG Heli Electric Reach Stacker thumbnail-4
China Top1 Brand 1500KG Heli Electric Reach Stacker thumbnail-5
China Top1 Brand 1500KG Heli Electric Reach Stacker thumbnail-6
China Top1 Brand 1500KG Heli Electric Reach Stacker photo-1

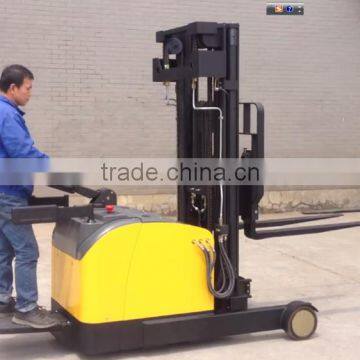

China Top1 Brand 1500KG Heli Electric Reach Stacker photo-2

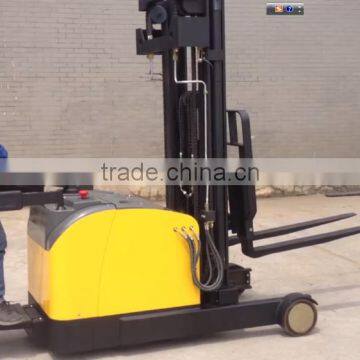

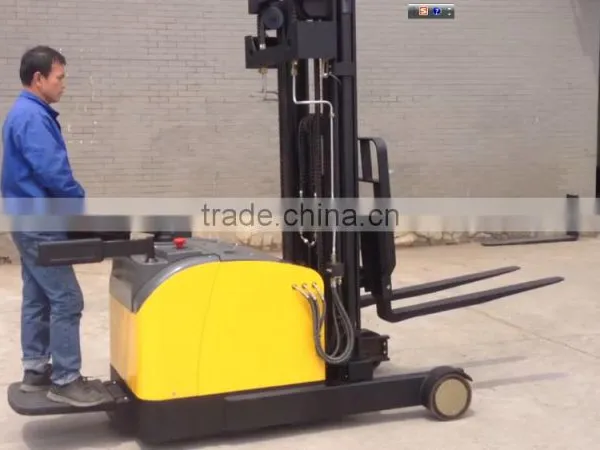

China Top1 Brand 1500KG Heli Electric Reach Stacker photo-3

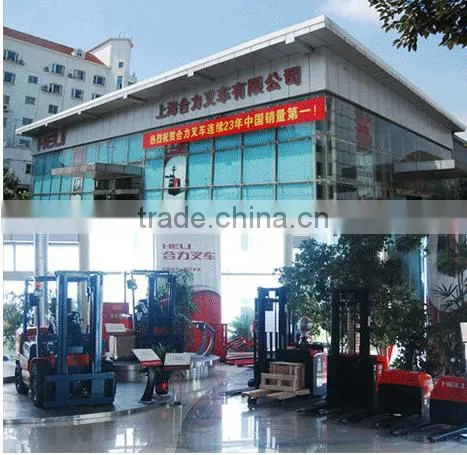

China Top1 Brand 1500KG Heli Electric Reach Stacker photo-4
China Top1 Brand 1500KG Heli Electric Reach Stacker photo-5
China Top1 Brand 1500KG Heli Electric Reach Stacker photo-6
US$ 7,000 - 8,000 MOQ: 1 Acre
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
HELI
Contact Supplier Request Quote Chat Now
Shanghai Hanli Industrial Vehicle Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name HELI
Model Number CQDM15
Type Other, Diesel Heli Forklift
Power Souce Diesel Engine
Rated Loading Capacity 1500kg
Max. Lifting Height 2290mm
Min. Lifting Height 40mm
Fork Length 1070mm
Fork Width 100mm
Overall Dimensions 2440x1083x2290
Certification ISO9001,ISO14001,OHASA18001,CE
After-sales Service Provided No overseas service provided

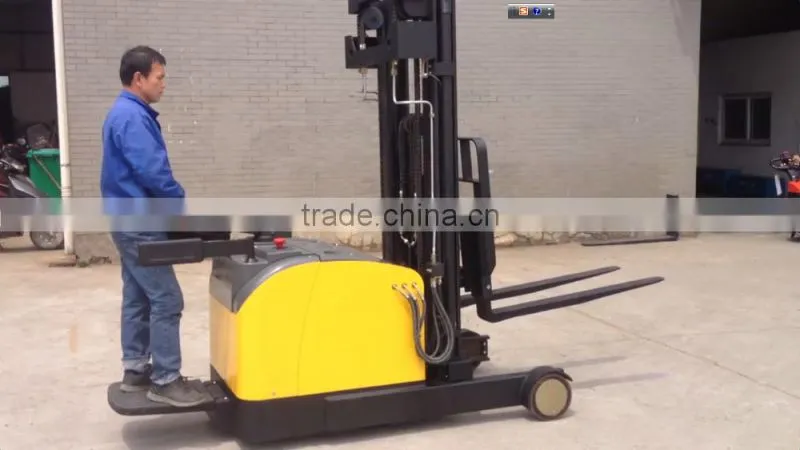

China Top1 Brand 1500KG Heli electric reach stacker

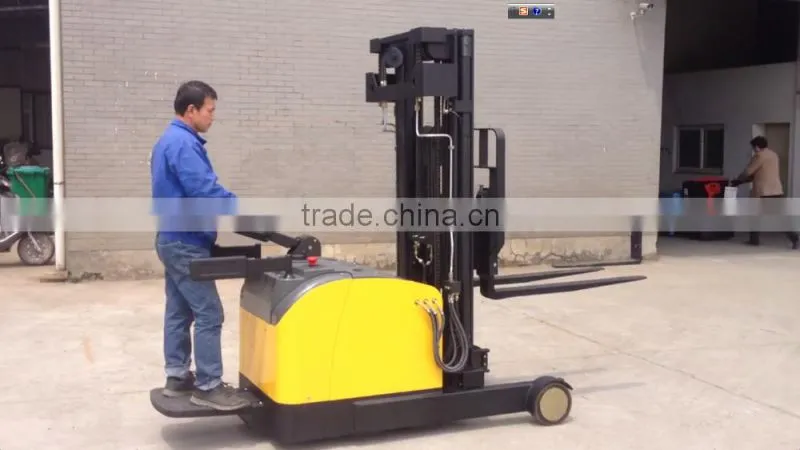

China Top1 Brand 1500KG Heli electric reach stacker

China Top1 Brand 1500KG Heli electric reach stacker

Heli electric stacker which is a multi functional material handing equipment that created by Anhui heli forklift

Co.,ltd. Shanghai Heli Forklift Co., Ltd. Is Anhui Heli Co. in Shanghai, Suzhou and Nantong (including under the jurisdiction of cities and counties) are the only sales company,

You could call it SHANGHAI HANLI INDUSTRIAL VEHICLES CO.,LTD too. We set up this company for doing international trade business.

Product Description
Specification                       HELI
Model                              CQDM12/15
type                                     Reach
Load capacity       kg                          1500
Mast Tyre   2-Stage,full free 3-Stage
Load center       mm                           500
Wheel base       mm                           1332
Operating type                                        Stand-Down
Size
Standard lifting height        mm                           3000
Mast height        mm                           2290
Overall height        mm                           2290
Overall length        mm                           2440
Ground clearance        mm                           60
Overall width        mm                           1083
Min.turning radius         mm                          2040
Tilt of fork        Grad                          3/ 5
Fork size        mm                    1070x100x40
Performance
Max. travel speed(loaded/unloaded)       km/h                        5.5
Lifting speed       mm/s                     130/230
Lowering speed       mm/s                     130/230
Max. gradeability (loaded/unloaded)         %                     3/5
Weight
Service weight                               2100
Wheels
Tyre Type                             PU
Wheel qty/driving wheel/balance wheel/bearing wheel                        1/0/2
Electrical Configuration
Drive motor/Lift motor/Steering motor      kW                AC1.5/DC3.0/DC0.15
Battery Voltage      V                24
Battery Capacity      Ah                280
Brake       Electromagnetic/Regenerative
Controller                   Curtis

Electric pallet stacker Advantages:

1.Fork tilt,double oil cylinder more smoothly;

2.Electro-hydraulic intefrated control,multi-function handle;

3.Electronic power steering system,light and low noise;

4.Two-way magnetic valve,three drop speed mode;

5.AC Driving system,No carbon brush,maintenance free;

6.USA Curtis driving controller;

7.Electromagnetic,regenerative braking system;

8.Automatic lifting limit,proximity switch,long life

Satety

Curve automatic deceleration devices,more safe

Good high position,vehicle automatic deceleration

Stepless speed control system,safe and quiet;

Emergency reversing device/Emergency brake swtich

China Top1 Brand 1500KG Heli electric reach stackerChina Top1 Brand 1500KG Heli electric reach stacker

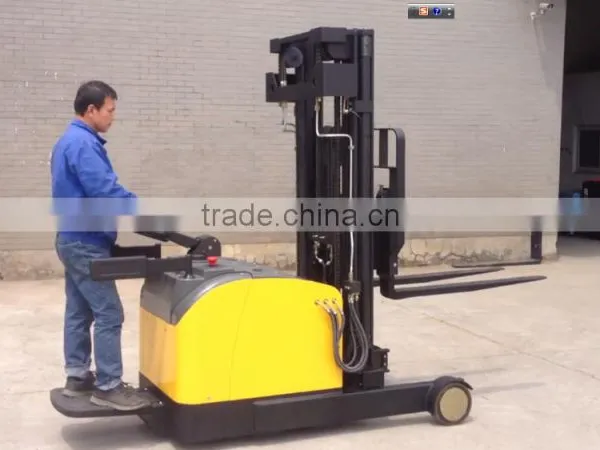

Electric pallet stacker Operation Video pls add facebook friend pobby_guo for visiting.

Video Demo

China Top1 Brand 1500KG Heli electric reach stacker Online video demo of  heli forklift:  https://youtu.be/GAv9g8DoVxA

Customer Visiting

China Top1 Brand 1500KG Heli electric reach stacker

Why Choose Heli ?

1.Well-Know Trademark Of China

2.First Brand of in Forklift Market in China

3.First Brand Of Indepent Innovation Forklift in China

4.AAA-Class Quality Service of China

5.Professional design team and work fast sales department of your service

6.Alibaba golden supplier,VIP trade assurance supplier

7.Ranking 8th in Forklift Manufacturing Industry in the World

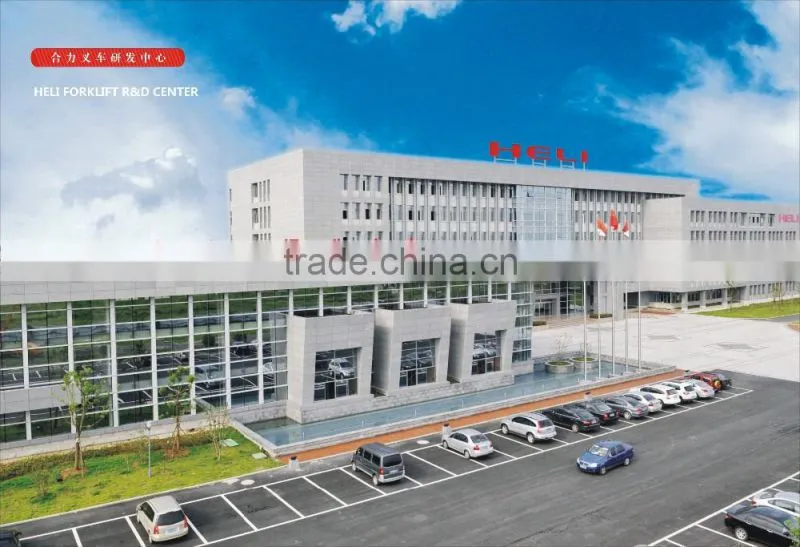

8.Ourselves' Product R&D PlatForm
9.Perfect Manufacturing System
10.Professional Components(Forklift Parts) Manufacturing,So that We can supply whole series HELI forklift parts
HELI Parts Room Show





World Wide Market

HELI is authorized with the independent  export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60  countries.
