Electric Reach Truck HELI Brand 1.6 Tons

Electric Reach Truck HELI Brand 1.6 Tons thumbnail-1
Electric Reach Truck HELI Brand 1.6 Tons thumbnail-2
Electric Reach Truck HELI Brand 1.6 Tons thumbnail-3
Electric Reach Truck HELI Brand 1.6 Tons photo-1

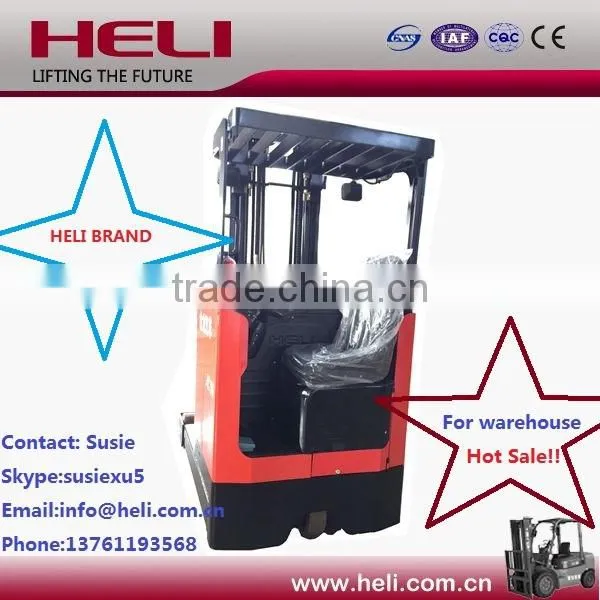

Electric Reach Truck HELI Brand 1.6 Tons photo-2

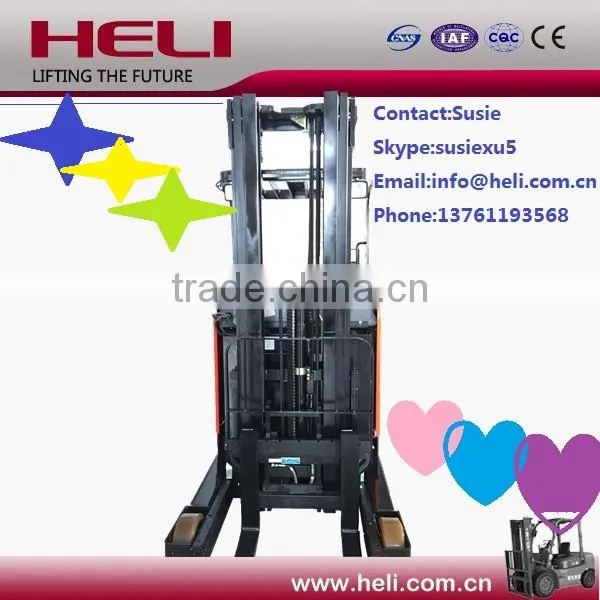

Electric Reach Truck HELI Brand 1.6 Tons photo-3
US$ 8,500 - 11,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Qinghai, China
Brand Name:
HELI BRAND
Contact Supplier Request Quote Chat Now
Shanghai Hanli Industrial Vehicle Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Qinghai, China
Brand Name HELI BRAND
Model Number CQD16
Type Other, COUNTER BALANCED FORKLIFT
Power Souce AC Motor
Rated Loading Capacity 1600kg
Max. Lifting Height 4250mm ( Optional )
Min. Lifting Height 95mm
Fork Length 1070mm
Fork Width 100mm
Overall Dimensions 1800*1120*2210mm
Certification ISO9001,ISO14001,OHASA18001,CE
After-sales Service Provided No overseas service provided

Performance:

Features
Manufacturer Heli
Model  CQD16
Configuration number  GA2S
Load capacity  kg 1600
Load center  mm 600
Power type  Battery
Driving style  Sit-down
Wheelbase  mm 1425
Wheel
Tire type  Polyurethane
Number of tires.driven wheel/bearing wheel (x= driven wheels) 1x/2
Wheelbase (driven wheel )  null
Wheelbase (bearing wheel) mm 988
Bearing wheel size  mm 285X108
Driven wheel size  mm 343X114
Size
Standard mast ift height  mm 4250
Free lift height  mm 1370
Fork size, thinckness/width/legnth mm 45x100x1070
Length (the distance frin the rear frame to backrest) mm 1383
Length(without forks ) mm 1800
Body width/outside leg width  mm 1120/1148
Forward distance  mm 500
Leg length  mm 300
Lowered mast height  mm 2090
Maximum height of mast operation  mm 5335
Overhead guard height  mm 2210
Seat height  mm 1015
Minimum ground clearance(wheelbase midpoint) mm 95
Turning radius  mm 1700
Distance from fork front end face to bearing wheel center  mm 252
Width of right-angle stacking pallets 1000Lx1200W,gap200 mm 2650
Width of right-angle stacking pallets 1200Lx1200W,gap200 mm 2850
Fork width adjustment  mm 200~680
Performance
Travelling speed,with/without load  km/h 10/11
Lifting speed, with/without load  m/s 0.33/0.44
Desending speed, with/without load  m/s 0.5/0.5
Forward speed, with/without load  m/s 0.11/0.11
Maximum gradability,with/without load  % 10/15
Acceleration time, with/without load  s 5.3/5.8
Weight
Vehicle weight (including battery ) kg 3450
Without load, driven wheel/bearing wheel  kg 1970/1480
Full load, driven wheel/bearing wheel (fork forward ) kg 620/4430
Full load, drieven wheel /bearing wheel (fork backwward) kg 1650/3400
Battery
Battery voltage/rated capacity ( 5 hou discharge) 500Ah/48V
Battery weight  920
Battery Box Size  974X404X750
Motor and Control
Dirve motor power  kw 5.5
Lifting motor power  kw 11.5
Steering motor power  kw 0.6
Dirve control  MOSEET/AC
Lift control  MOSFET/AC
Steering control  MOSFET/AC
Brake  Hydraulic/Electric
Hydraulic system working pressure  Mpa

14.5

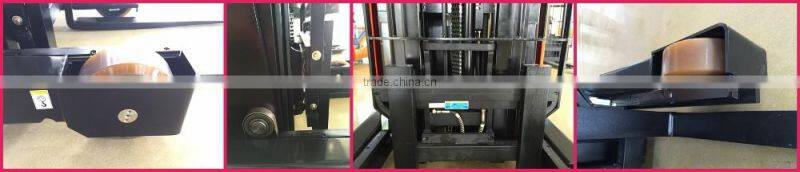

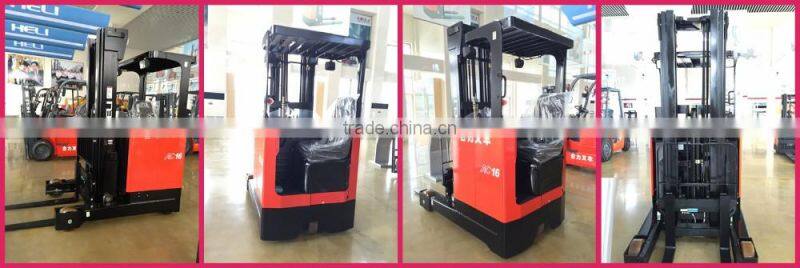

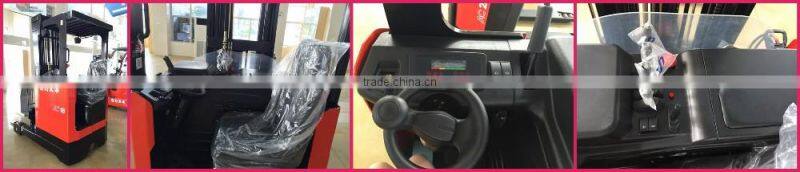

Detail photos:



Electric Reach Truck HELI Brand 1.6 tonsElectric Reach Truck HELI Brand 1.6 tonsElectric Reach Truck HELI Brand 1.6 tons



Electric Reach Truck HELI Brand 1.6 tonsElectric Reach Truck HELI Brand 1.6 tonsElectric Reach Truck HELI Brand 1.6 tonsElectric Reach Truck HELI Brand 1.6 tons

Electric Reach Truck HELI Brand 1.6 tons

Electric Reach Truck HELI Brand 1.6 tonsElectric Reach Truck HELI Brand 1.6 tons Electric Reach Truck HELI Brand 1.6 tons

HELI Company Culture Show:

Electric Reach Truck HELI Brand 1.6 tonsElectric Reach Truck HELI Brand 1.6 tons

Electric Reach Truck HELI Brand 1.6 tons





Parts Supply Including:



1.Genuine parts from the source parts manufacturer for China HELI brand forklift spare parts.



2.Chinese made forklift like counterbalanced forklift , electric battery pallet truck, electric

   carrier stacker,Hydraulic system forklift, diesel forklift and so on.







Packaging & Shipping


(1) IN GENRAL, WE DELIVERY BT SEA, TO MAIN COUNTRIESE   INCLUDING SOUTH AMERICA, AFRICA,

      OCEANIA AND EUROPE ETC.
(2) FOR NEIGHBOURHOOD CUNTRIES OF CHINA, INCLUDING KAZAKHSTAN,UZBEKISTAN  ETC. WE CAN SHIP

      BY ROAD OR RAILWAY.
(3) FOR SOME SPARE PARTS URGENTLY, WE USUALLY DELIVERY BY INTERNATIONAL COURIER SERVICE SUCH

      AS DHL, TNT, UPS AND SO ON.



Company Information

  SHANGHAI HELI FORKLIFT TRUCK CO.,LTD IS ONE HOLDING COMPANY  OF ANHUI HELI CO.,LTD,FOUNDED IN 2001, IT IS MAINLY ENGAGED IN R&D AND MANUFACTURING OF INDUSTRIAL VEHICLES, CONSTRUCTION NACHINERY AND KEY COMPONENTS, AND OUR FACTORY IS IN ANHUI HELI, AT PRESENT, ITS  THE EXPORT BASE OF INDUSTRIAL VEHICLES WIITH LARGEST SCALE, THE MOST COMPLETE INDUSTRY CHAIN, AND THE BEST COMPREHENSIVE AND ECONOMIC PERFORMANCE IN CHINA, IT OWENS A NATIONAL-LEVEL "ENTERPRISE TECHNICAL CENTRE" AND IT HAS BEEN AWARDED AS :NATIONAL INNOVATIVE ENTERPRISE ","STATE-HIGH-TECH ENTERPRISE IN NATIONAL TORCH PROJECT"."HELI' TRADEMARK IS THE "WELL KNOWN TRADEMARK OF CHINA".
