Home > Products > Diesel Forklift > China Top1 Heli Brand 3t 3000kg 3 tons diesel forklift truck

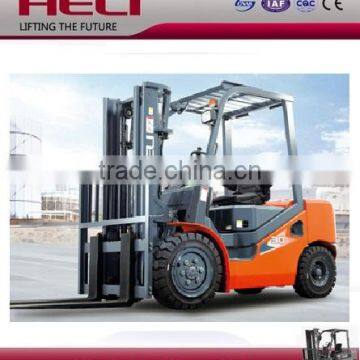

China Top1 Heli Brand 3t 3000kg 3 tons diesel forklift truck
- 1000 Piece / Pieces per Month
- SHANGHAI
You May Like
-
3 tons 3 m lifting height Diesel forklift with 2017 Japanese engine
-
competitive 3tons counter balance forklift
-
Forklift 3TON DIESEL for sale MADE in china JAPAN techs
-
Heli 3ton diesel forklift for sale with engine japanese
-
3ton diesel forklift with Japanese Engine for Sale
-
Heli 3ton diesel counterbalance trucks for sale with good price
Product Details
Condition | New | Place of Origin | Anhui, China | |
Brand Name | HELI | Model Number | CPC30-WS1H | |
Type | Other, (diesel forklift truck) | Power Souce | Diesel Engine | |
Rated Loading Capacity | 3000kg | Max. Lifting Height | 3000mm | |
Min. Lifting Height | 135mm | Fork Length | 1070mm | |
Fork Width | 125mm | Overall Dimensions | 2748*1225*2170(MM) | |
Certification | CE CQC | After-sales Service Provided | No overseas service provided |
Product Description
Shanghai heli forklift Co.,ltd is one holding company of anhui heli co.,ltd,founded in 2001, it is mainly engaged in r&d and manufacturing of industrial vehicles, construction nachinery and key components, and our factory is in anhui heli, at present, its the export base of industrial vehicles wiith largest scale, the most complete industry chain, and the best comprehensive and economic performance in china, it owens a national-level "enterprise technical centre" and it has been awarded as :national innovative enterprise ","state-high-tech enterprise in national torch project"."heli' trademark is the "well known trademark of china". Shanghai Hanli Industrial Vehicles Co.,Ltd belongs to Shanghai heli forklift Co.,Ltd.
Characteristic | Unit | ||
1 | Manufacturer | HELI | |
2 | Model | CPC30-WS1H | |
3 | Load Capacity | kg | 3000 |
4 | Load center | mm | 500 |
5 | Power Type | DIESEL | |
6 | Operation mode | Seat-Type | |
Tire | |||
7 | Front Tire | 28*9-15-12PR | |
8 | Rear Tire | 6.50-10-10PR | |
Dimension Parameter | |||
9 | Lifting height(standard) | mm | 3000 |
10 | Mast Tilt(fwd/bwd) | deg | 6/12 |
11 | Min.Turning Radius | mm | 2400 |
12 | Overall Length(with/without Forks) | mm | 3818/2748 |
13 | Overall Width | mm | 1225 |
14 | Overall Height(Mast without activity) | mm | 2170 |
15 | Wheel Base | mm | 1700 |
16 | Tread(fwd/bwd) | mm | 1000/970 |
17 | Overhang(fwd/bwd) | mm | 478/570 |
18 | Min.Under clearance(At the mast) | mm | 135 |
19 | Lateral Fork Adjustment(Outside of Forks) | mm | 250-1060 |
20 | Fork Length | mm | 1070 |
21 | Fork Width/Thickness | mm | 125/45 |
Performance Parameter | |||
22 | Lifting speed(Loaded) | mm/s | 500 |
23 | Lowing speed(Loaded) | mm/s | 450 |
24 | Traveling speed(Unloaded/Loaded) | km/h | 20/19 |
25 | Max.Gradeability(Loaded/Unloaded) | % | 17/20 |
Weight | |||
26 | Service weight | kg | 4370 |
Engine and Gearbox | |||
27 | Engine Manufacturer/Model | Japanese Isuzu C240 | |
28 | Engine rated power | Kw/rpm | 34.3/2500 |
29 | Engine rated torque | Nm/rpm | 137.7/1800 |
30 | Engine Cyliner number-borexstroke | 4-86*102 | |
31 | Engine Displancement | L | 2.369 |
32 | Emission | Euro Stage3A | |
33 | Engine fuel tank capacity | L | 40 |
1.Well-Know Trademark Of China
2.First Brand of in Forklift Market in China
3.First Brand Of Indepent Innovation Forklift in China
4.AAA-Class Quality Service of China
5.Professional design team and work fast sales department of your service
6.Alibaba golden supplier,VIP trade assurance supplier
7.Ranking 8th in Forklift Manufacturing Industry in the World
HELI is authorized with the independent export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60 countries.
Online video demo of heli forklift: https://youtu.be/GAv9g8DoVxA
