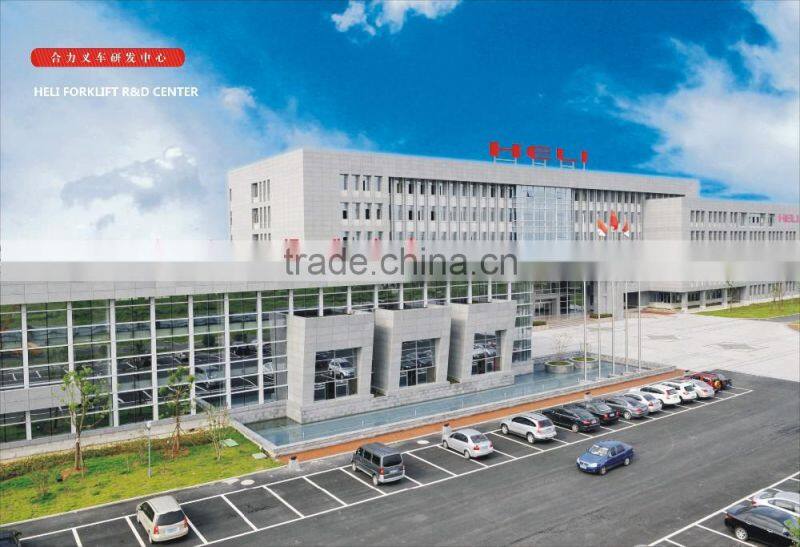

Shanghai heli forklift Co.,ltd is one holding company of anhui heli co.,ltd,founded in 2001, it is mainly engaged in r&d and manufacturing of industrial vehicles, construction nachinery and key components, and our factory is in anhui heli, at present, its the export base of industrial vehicles wiith largest scale, the most complete industry chain, and the best comprehensive and economic performance in china, it owens a national-level "enterprise technical centre" and it has been awarded as :national innovative enterprise ","state-high-tech enterprise in national torch project"."heli' trademark is the "well known trademark of china". Shanghai Hanli Industrial Vehicles Co.,Ltd belongs to Shanghai heli forklift Co.,Ltd.
| Characteristic | Unit | ||
| 1 | Manufacturer | HELI | |
| 2 | Model | CPC30-WS1H | |
| 3 | Load Capacity | kg | 3000 |
| 4 | Load center | mm | 500 |
| 5 | Power Type | DIESEL | |
| 6 | Operation mode | Seat-Type | |
| Tire | |||
| 7 | Front Tire | 28*9-15-12PR | |
| 8 | Rear Tire | 6.50-10-10PR | |
| Dimension Parameter | |||
| 9 | Lifting height(standard) | mm | 3000 |
| 10 | Mast Tilt(fwd/bwd) | deg | 6/12 |
| 11 | Min.Turning Radius | mm | 2400 |
| 12 | Overall Length(with/without Forks) | mm | 3818/2748 |
| 13 | Overall Width | mm | 1225 |
| 14 | Overall Height(Mast without activity) | mm | 2170 |
| 15 | Wheel Base | mm | 1700 |
| 16 | Tread(fwd/bwd) | mm | 1000/970 |
| 17 | Overhang(fwd/bwd) | mm | 478/570 |
| 18 | Min.Under clearance(At the mast) | mm | 135 |
| 19 | Lateral Fork Adjustment(Outside of Forks) | mm | 250-1060 |
| 20 | Fork Length | mm | 1070 |
| 21 | Fork Width/Thickness | mm | 125/45 |
| Performance Parameter | |||
| 22 | Lifting speed(Loaded) | mm/s | 500 |
| 23 | Lowing speed(Loaded) | mm/s | 450 |
| 24 | Traveling speed(Unloaded/Loaded) | km/h | 20/19 |
| 25 | Max.Gradeability(Loaded/Unloaded) | % | 17/20 |
| Weight | |||
| 26 | Service weight | kg | 4370 |
| Engine and Gearbox | |||
| 27 | Engine Manufacturer/Model | Japanese Isuzu C240 | |
| 28 | Engine rated power | Kw/rpm | 34.3/2500 |
| 29 | Engine rated torque | Nm/rpm | 137.7/1800 |
| 30 | Engine Cyliner number-borexstroke | 4-86*102 | |
| 31 | Engine Displancement | L | 2.369 |
| 32 | Emission | Euro Stage3A | |
| 33 | Engine fuel tank capacity | L | 40 |
1.Well-Know Trademark Of China
2.First Brand of in Forklift Market in China
3.First Brand Of Indepent Innovation Forklift in China
4.AAA-Class Quality Service of China
5.Professional design team and work fast sales department of your service
6.Alibaba golden supplier,VIP trade assurance supplier
7.Ranking 8th in Forklift Manufacturing Industry in the World
HELI is authorized with the independent export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60 countries.
Online video demo of heli forklift: https://youtu.be/GAv9g8DoVxA
For more information please visit
Send your Inquiry Details in the Below, Click "Send" Now!
Whatsapp: 0086 13072186360
Tel: 0086 13761611524 ; 0086 13072186360(wechat)
Email: info at
Skype:pobby_guo258
