Shanghai heli forklift truck co.,ltd (Shanghai Hanli )is one holding company of anhui heli co.,ltd,founded in 2001, it is mainly engaged in r&d and manufacturing of industrial vehicles, construction nachinery and key components, and our factory is in anhui heli, at present, its the export base of industrial vehicles wiith largest scale, the most complete industry chain, and the best comprehensive and economic performance in china, it owens a national-level "enterprise technical centre" and it has been awarded as :national innovative enterprise ","state-high-tech enterprise in national torch project"."heli' trademark is the "well known trademark of china".

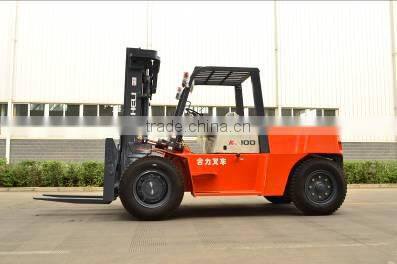

| Specification | Forklift Manufacturer Heli 10 ton forklift | |
| Model | CPCD100 | |
| Powe type | Diesel | |
| Load capacity | kg | 3000 |
| Load center | mm | 600 |
| Operating type | Sit-Down | |
| Size | ||
| Standard lifting height | mm | 3000 |
| Overall height | mm | 2560 |
| Overall length(with fork) | mm | 5497 |
| Wheel Base | mm | 2800 |
| Min Ground clearance | mm | 250 |
| Overall width | mm | 2164 |
| Min.turning radius | mm | 4100 |
| Mast tilt angle | % | 6° / 12° |
| Fork size | mm | 1220x175x80 |
| Performance | ||
| Max. travel speed(loaded/unloaded) | km/h | 26/30 |
| Lifting speed | mm/s | 330/350 |
| Lowering speed | mm/s | <=600/>=300 |
| Max. Draw-bar pull,with load | k/N | 58 |
| Max.Negotiable Gradient (loaded/unloaded) | % | 22/20 |
| Weight | ||
| Service weight | 12510 | |
| load wheel with load(front/rear) | kg | 20380/2130 |
| load wheel without load(front/rear) | kg | 5700/6810 |
| Wheel and Tyre | ||
| Wheels Number front/rear(x=driven) | 4x/2 | |
| Tyre Type | pneumatic | |
| Tyre size (front) | 9.00-20-14PR | |
| Tyre size (rear) | 9.00-20-14PR | |
| Service brake | Hydraulic- foot pedal | |
| Parking brake | Mechanical- hand Brake Rod | |
| Drive | ||
| Engine model | Chinese Engine(Optional) | |
| Rated power | kW/rpm | 85/2200 |
| Rated torque | Nm/rpm | 488/1500 |
| Engine cylinder number | 4 | |
| Engine displacement | L | 4/4.75 |
| Transmission Type | Power Shift | |
Online video demo of heli forklift: https://youtu.be/GAv9g8DoVxA
1.Well-Know Trademark Of China
2.First Brand of in Forklift Market in China
3.First Brand Of Indepent Innovation Forklift in China
4.AAA-Class Quality Service of China
5.Professional design team and work fast sales department of your service
6.Alibaba golden supplier,VIP trade assurance supplier
7.Ranking 8th in Forklift Manufacturing Industry in the World
HELI is authorized with the independent export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60 countries.
