China Top1 Material Handing Equip Manufacturer Heli Forklift 2.5 Ton

China Top1 Material Handing Equip Manufacturer Heli Forklift 2.5 Ton photo-1

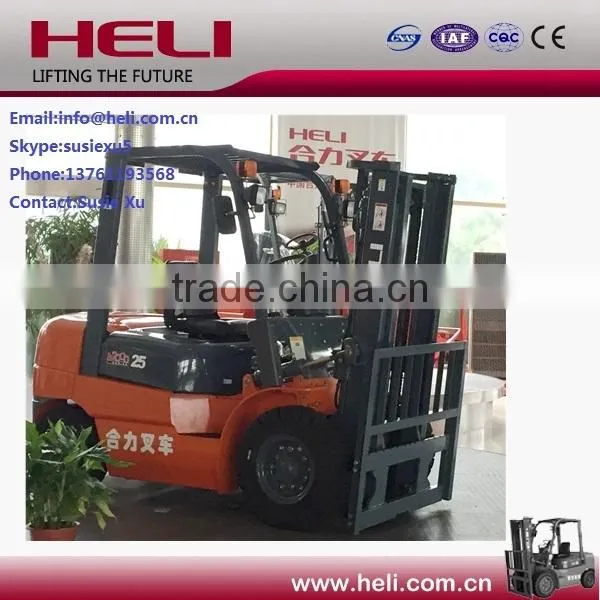

China Top1 Material Handing Equip Manufacturer Heli Forklift 2.5 Ton photo-2

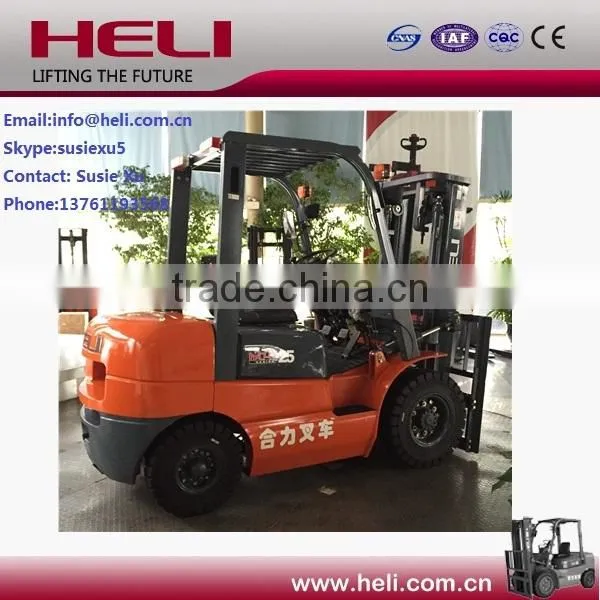

China Top1 Material Handing Equip Manufacturer Heli Forklift 2.5 Ton photo-3

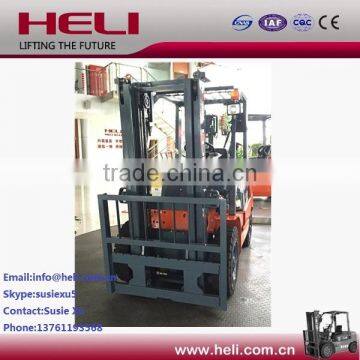

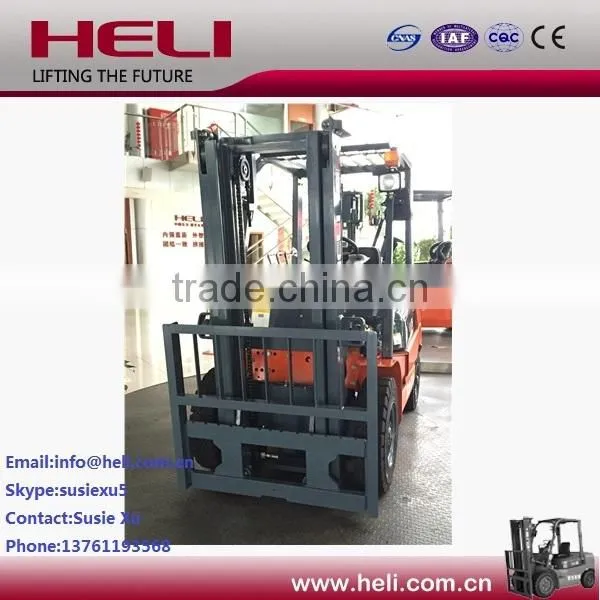

China Top1 Material Handing Equip Manufacturer Heli Forklift 2.5 Ton photo-4

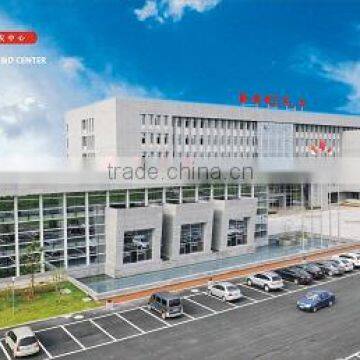

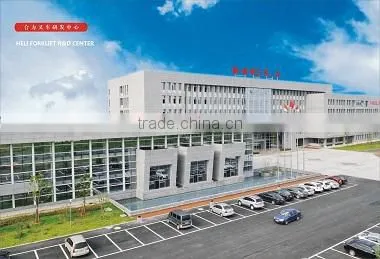

China Top1 Material Handing Equip Manufacturer Heli Forklift 2.5 Ton photo-5

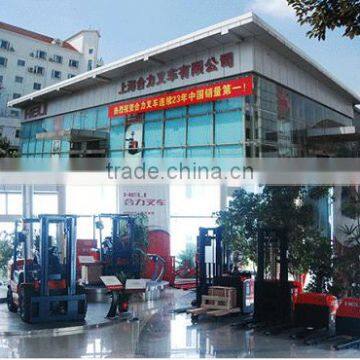

China Top1 Material Handing Equip Manufacturer Heli Forklift 2.5 Ton photo-6
US$ 1 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
HELI BRAND
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Anhui, China
Brand Name HELI BRAND
Model Number CPCD25
Type Other, Internal Combustion Counterbalanced forklift
Power Souce Diesel Engine
Rated Loading Capacity 2500kg
Max. Lifting Height 3000mm
Min. Lifting Height 170mm
Fork Length 1070MM
Fork Width 122 Mm
Overall Dimensions 2766X1225X2150mm
Certification ISO9001,ISO14001,OHASA18001,CE
After-sales Service Provided No overseas service provided

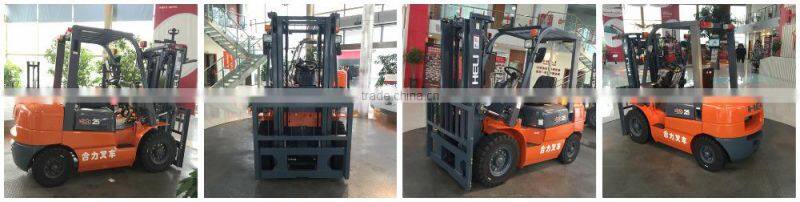

 China Top1 Material Handing Equip Manufacturer heli forklift 2.5 tonChina Top1 Material Handing Equip Manufacturer heli forklift 2.5 tonChina Top1 Material Handing Equip Manufacturer heli forklift 2.5 ton

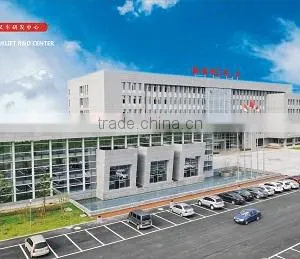

Company Information

Shanghai heli forklift Co.,ltd is one holding company  of anhui heli co.,ltd,founded in 2001, it is mainly engaged in r&d and manufacturing of industrial vehicles, construction nachinery and key components, and our factory is in anhui heli, at present, its  the export base of industrial vehicles wiith largest scale, the most complete industry chain, and the best comprehensive and economic performance in china, it owens a national-level "enterprise technical centre" and it has been awarded as :national innovative enterprise ","state-high-tech enterprise in national torch project"."heli' trademark is the "well known trademark of china". Shanghai Hanli Industrial Vehicles Co.,Ltd belongs to Shanghai heli forklift Co.,Ltd.

China Top1 Material Handing Equip Manufacturer heli forklift 2.5 tonChina Top1 Material Handing Equip Manufacturer heli forklift 2.5 ton

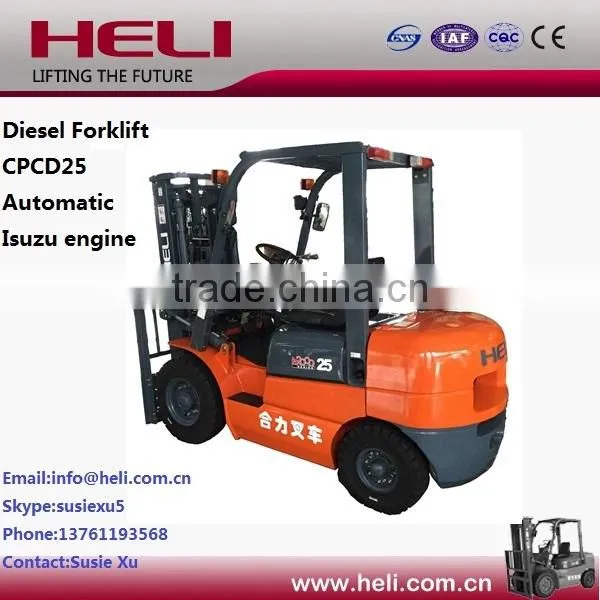

Specification           HELI Forklift 2.5 ton
Model                                          CPCD25
Powe type                                    Diesel
Load capacity      kg                         2500
Load center      mm                          500
Operating type                                               Sit-Down
Size
Standard lifting height       mm                          3000
Mast height       mm                          2000
Free lifting height       mm                          170
Overall height       mm                          2070
Overall length       mm                          3667
Front overhang       mm                          477
Rear overhang       mm                          515
Overall width       mm                          1150
Min.turning radius (exterior)       mm                         2240
Min.turning radius (interior)       mm                          160
Mast tilt angle        %                         6° / 12°
Fork size       mm                   1070x122x40
Performance
Max. travel speed(loaded/unloaded)      km/h                       17/19
Lifting speed      mm/s                    570/600
Lowering speed      mm/s                    450/550
Max. traction force (loaded/unloaded)      k/N                    18.7/12.5
Max. gradeability (loaded/unloaded)        %                    24/22
Weight
Service weight                              3800
Weight distribution loaded(front/rear)       kg                  5480/820
Weight distribution unloaded(front/rear)       kg                  1560/2240
Wheel and Tyre
Tyre quantity     X=driving wheel                             2x/2
Tyre Type                            pneumatic
Tyre size (front)                         28x9-15-12PR
Tyre size (rear)                         6.50-10-10PR
Service brake                       Hydraulic- foot pedal
Parking brake                       Mechanical- hand lever
Drive and transmission control device
Battery (Voltage/Capacity)      V/Ah                  12/80
Engine manufacturer/ model                       Quanchai QC490GP
Rated power     kW/rpm                39/2650
Rated torque     Nm/rpm               162/1950
Engine cylinder number                            4-90x110
Engine displacement        L                 2.67
Fuel tank capacity        L                  60
Electric forklift 2.5 ton China Top1 Material Handing Equip Manufacturer heli forklift 2.5 ton
Video Demo

China Top1 Material Handing Equip Manufacturer heli forklift 2.5 ton Online video demo of  heli forklift:  https://youtu.be/GAv9g8DoVxA

Customer Visiting

China Top1 Material Handing Equip Manufacturer heli forklift 2.5 ton

Why Choose Heli ?

1.Well-Know Trademark Of China

2.First Brand of in Forklift Market in China

3.First Brand Of Indepent Innovation Forklift in China

4.AAA-Class Quality Service of China

5.Professional design team and work fast sales department of your service

6.Alibaba golden supplier,VIP trade assurance supplier

7.Ranking 8th in Forklift Manufacturing Industry in the World

8.Ourselves' Product R&D PlatForm
9.Perfect Manufacturing System
10.Professional Components(Forklift Parts) Manufacturing,So that We can supply whole series HELI forklift parts
World Wide Market

HELI is authorized with the independent  export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60  countries.
