Shanghai heli forklift truck co.,ltd is one holding company of anhui heli co.,ltd,founded in 2001, it is mainly engaged in r&d and manufacturing of industrial vehicles, construction nachinery and key components, and our factory is in anhui heli, at present, its the export base of industrial vehicles wiith largest scale, the most complete industry chain, and the best comprehensive and economic performance in china, it owens a national-level "enterprise technical centre" and it has been awarded as :national innovative enterprise ","state-high-tech enterprise in national torch project"."heli' trademark is the "well known trademark of china".
| Specification | HELI forklift of China | |
| Model | CPCD15 | |
| Powe type | Diesel | |
| Load capacity | kg | 1500 |
| Load center | mm | 500 |
| Operating type | Sit-Down | |
| Size | ||
| Max. Fork height | mm | 4030 |
| Standard lifting height | mm | 3000 |
| Mast height | mm | 1995 |
| Free lifting height | mm | 155 |
| Backrest height | mm | 1000 |
| Seat height | mm | 1025 |
| Overall height | mm | 2070 |
| Overall length | mm | 3151 |
| Front overhang | mm | 425 |
| Rear overhang | mm | 410 |
| Wheel Base | mm | 1400 |
| Traction pin height | mm | 250 |
| Ground clearance | mm | 110 |
| Overall width | mm | 1070 |
| Tread (Front/Rear) | mm | 890/920 |
| Min.turning radius (exterior) | mm | 1955 |
| Min.turning radius (interior) | mm | 110 |
| Mast tilt angle | % | 6° / 12° |
| Fork size | mm | 920x100x35 |
| Performance | ||
| Max. travel speed(loaded/unloaded) | km/h | 13.5/14.5 |
| Lifting speed (loaded/unloaded) | mm/s | 590/650 |
| Lowering speed (loaded/unloaded) | mm/s | 450/500 |
| Max. traction force (loaded/unloaded) | k/N | 18.5/8.9 |
| Max. gradeability (loaded/unloaded) | % | 45/28 |
| Weight | ||
| Service weight | 2660 | |
| Weight distribution loaded(front/rear) | kg | 3640/520 |
| Weight distribution unloaded(front/rear) | kg | 1170/1490 |
| Wheel and Tyre | ||
| Tyre quantity X=driving wheel | 2x/2 | |
| Tyre Type | pneumatic | |
| Tyre size (front) | 6.50-10-10PR | |
| Tyre size (rear) | 5.00-8-8PR | |
| Service brake | Hydraulic- foot pedal | |
| Parking brake | Mechanical- hand lever | |
| Drive and transmission control device | ||
| Battery (Voltage/Capacity) | V/Ah | 12/80 |
| Engine manufacturer/ model | ISUZU C240 PKJ | |
| Rated power | kW/rpm | 34.5/2500 |
| Rated torque | Nm/rpm | 139/1800 |
| Engine cylinder number | 4 | |
| Engine displacement | L | 2.369 |
| Fuel tank capacity | L | 38 |
This heli forklift of china that made with the latest technical design provide you excellent operating performance. HELI forklift trucks high standard performance, comfortable driving experience and the simple and safe operation will make your work handier.
Environmental Friendly
- The emission meets EC and EPA new regulation.
- High efficiency hydraulic system to lower the fuel consumption.
- Using environmental friendly material.
- Damping device on the mast to reduce impact and vibration.
- Sound insulating and absorbing device are used to reduce the noise.
Ergonomics design
- Using power braking system to reduce footplate strength.
- Control lever right located to effectively reduce drivers arm tiredness.
- Dual combined switch lever as a car to enable easy operating.
- Wide mast with good visibility.
- Wide space for boarding and driving , increasing leg space.
- Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off.
Safety performance
- Enclose cabin is made of assembling steel plate, high strength overhead is designed to ensure the safety.
- Parking brake with safety protection device, when parking brake is working, the forklift will not move even the direction lever is turned.
- Safety device in mast hydraulic system prevents material falling down in case of hose broken.
- High pressure hose is designed far away from the driver.
- Safety wire harness, using waterproof plug.

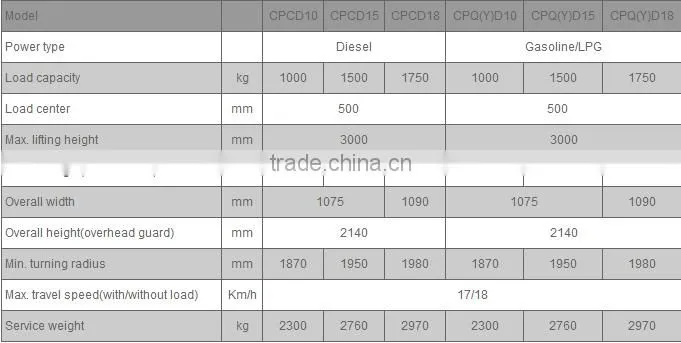

heli forklift of china 1-1.8Ton

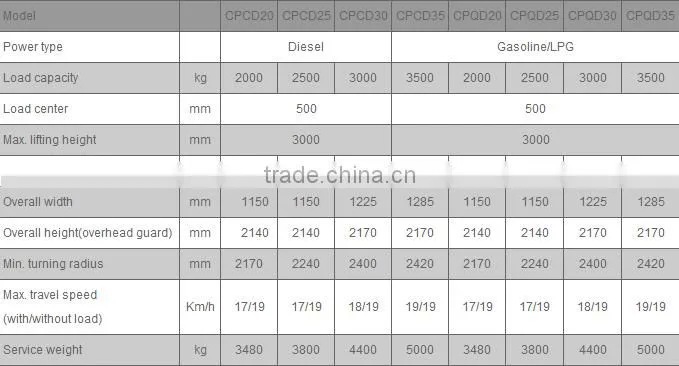

Heli forklift of China 2-3.5Ton

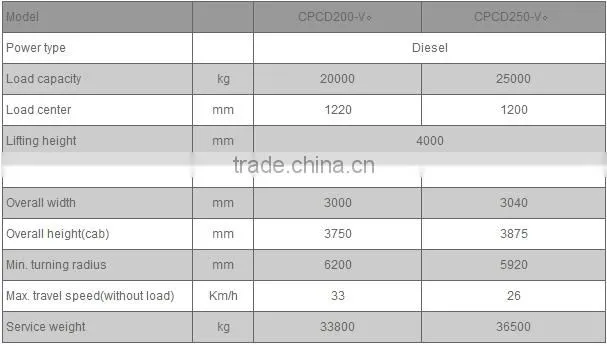

Heli forklift of china 20-25Ton
Online video demo of heli forklift: https://youtu.be/GAv9g8DoVxA
1.Well-Know Trademark Of China
2.First Brand of in Forklift Market in China
3.First Brand Of Indepent Innovation Forklift in China
4.AAA-Class Quality Service of China
5.Professional design team and work fast sales department of your service
6.Alibaba golden supplier,VIP trade assurance supplier
7.Ranking 8th in Forklift Manufacturing Industry in the World
HELI is authorized with the independent export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60 countries.
