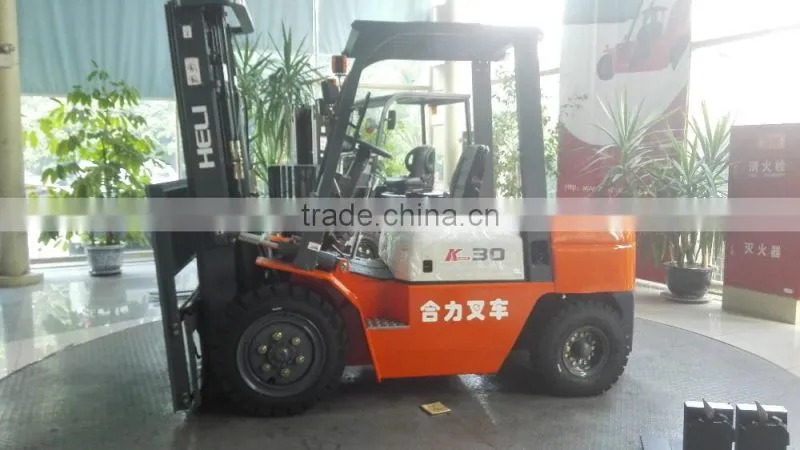

Help CenterChina Top1 Manufacturer HELI Brand K Series 3Ton Anhui Heli Forklift
Related Products
-
China Top1 Forkift 1-46ton Heli Forklift PriceUS$ 11,000 - 20,000MOQ: 1 Acre -
HELI Brand G Series 1.5Ton Heli Forklift of ChinaUS$ 1 - 10,000MOQ: 1 Acre
-
HELI FORKLIFT 25T Empty Container SalesUS$ 55,000 - 80,000MOQ: 1 Set
-
China Top1 Forklift Manufacturer Heli Diesel Forklift 3 TonsUS$ 8,500 - 11,200MOQ: 1 Set
-
Top1 Heli Brand Diesel Engine Explosion Proof 3ton ForkliftUS$ 8,500 - 11,200MOQ: 1 Set

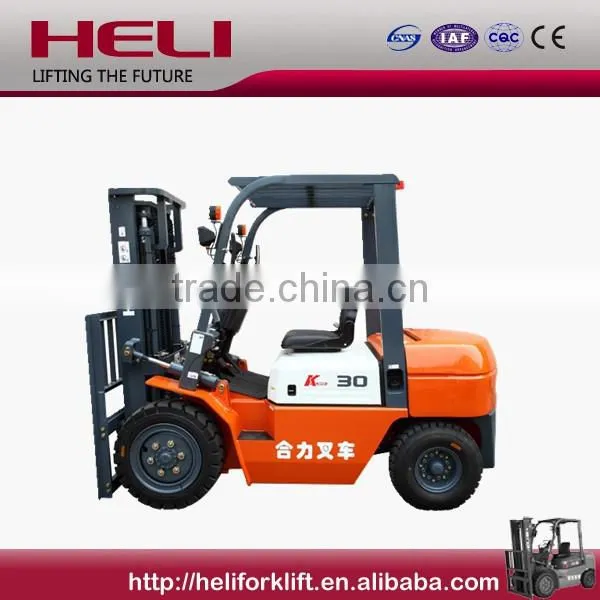

Anhui Heli forklift which is a multi functional material handing equipment that created by Anhui heli forklift
Co.,ltd. Shanghai Heli Forklift Co., Ltd. Is Anhui Heli Co. in Shanghai, Suzhou and Nantong (including under the jurisdiction of cities and counties) are the only sales company,
You could call it SHANGHAI HANLI INDUSTRIAL VEHICLES CO.,LTD too. We set up this company for doing international trade business.
| Specification | Anhui HELI Forklift | |
| Model | CPCD 30 | |
| Powe type | Diesel | |
| Load capacity | kg | 3000 |
| Load center | mm | 500 |
| Operating type | Sit-Down | |
| Size | ||
| Standard lifting height | mm | 3000 |
| Mast height | mm | 2070 |
| Free lifting height | mm | 160 |
| Backrest height | mm | 1227 |
| Seat height | mm | 1000 |
| Overall height | mm | 2090 |
| Overall length | mm | 3752 |
| Front overhang | mm | 487 |
| Rear overhang | mm | 495 |
| Wheel Base | mm | 1700 |
| Traction pin height | mm | 310 |
| Ground clearance | mm | 135 |
| Overall width | mm | 1225 |
| Tread (Front/Rear) | mm | 1000/970 |
| Min.turning radius (exterior) | mm | 2400 |
| Min.turning radius (interior) | mm | 200 |
| Mast tilt angle | % | 6° / 12° |
| Fork size | mm | 1070x125x45 |
| Performance | ||
| Max. travel speed(loaded/unloaded) | km/h | 18/19 |
| Lifting speed | mm/s | 440/480 |
| Lowering speed | mm/s | 450/500 |
| Max. traction force (loaded/unloaded) | k/N | 21/16 |
| Max. gradeability (loaded/unloaded) | % | 20/20 |
| Weight | ||
| Service weight | 4270 | |
| Weight distribution loaded(front/rear) | kg | 6543/727 |
| Weight distribution unloaded(front/rear) | kg | 1708/2562 |
| Wheel and Tyre | ||
| Tyre quantity X=driving wheel | 2x/2 | |
| Tyre Type | pneumatic | |
| Tyre size (front) | 28x9-15-12PR | |
| Tyre size (rear) | 6.50-10-10PR | |
| Service brake | Hydraulic- foot pedal | |
| Parking brake | Mechanical- hand lever | |
| Drive and transmission control device | ||
| Battery (Voltage/Capacity) | V/Ah | 12/80 |
| Engine manufacturer/ model | Quanchai QC490GP | |
| Rated power | kW/rpm | 39/2650 |
| Rated torque | Nm/rpm | 162/1950 |
| Engine cylinder number | 4-90x110 | |
| Engine displacement | L | 2.67 |
| Fuel tank capacity | L | 60 |
•Simple and fluency appearance with strong sense of contemporaneity.
•Adopt with enclosed cabin, enhance the outer appearance of the truck, increases the leg space for driver, and efficiently reduce the noise leaking from the motor.
•Optimize the ergonomic size of the steering wheel, seat and dashboard; provide a comfortable operating experience and better sight for the driver.
•Adopt with forged steering axle, sealed main components to maintain stable water proof and dust proof. Increase the working period and reliability of the connector. Reserve install space for the steering cylinder for convenient dismounting, highly improve the maintainability; the joint of the steering king pin and axle adopt the tapered roller bearing to bear the axial force and radial force, massively improve the serve time of the steering axle and lower the operate and maintenance cost.
•The joint of exhaust cylinder steering axle and truck frame adopt the damping rubber pad to support, reduce the vibration, and improve the operating comfort.
•Adopt the new design of steering wheel adjustment mechanism, improves the operating comfort.
The maximum open angle of the cabin can reach 80°
Anhui Heli Forklift H2000 Series 3 ton
Anhui Heli Forklift New H3 Series 3 ton

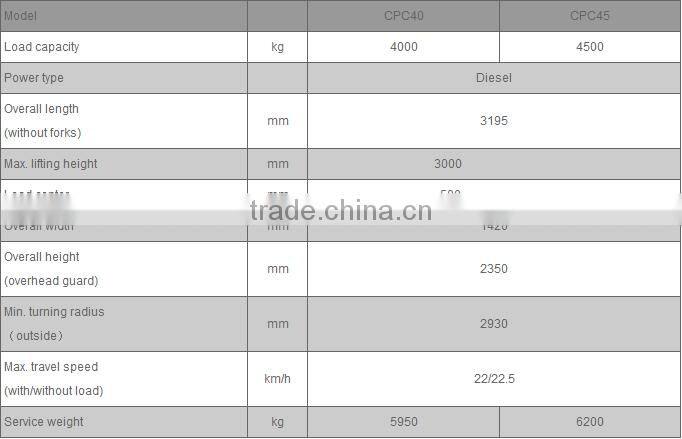

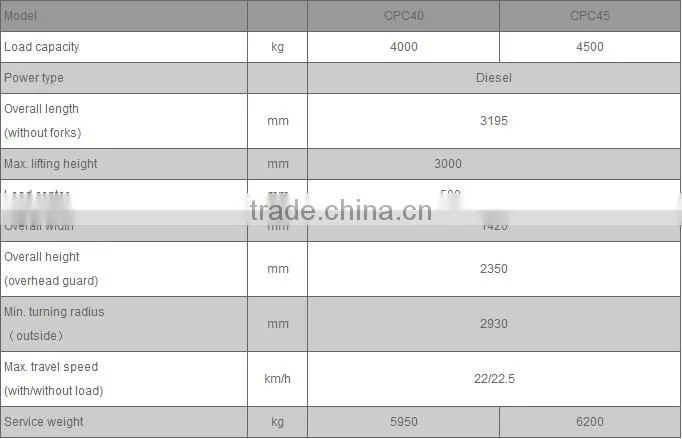

anhui heli forklift 4-4.5Ton
anhui heli forklift 2-3.5Ton Gas,Diesel
anhui heli forklift 5-7Ton
Online video demo of heli forklift: https://youtu.be/GAv9g8DoVxA
1.Well-Know Trademark Of China
2.First Brand of in Forklift Market in China
3.First Brand Of Indepent Innovation Forklift in China
4.AAA-Class Quality Service of China
5.Professional design team and work fast sales department of your service
6.Alibaba golden supplier,VIP trade assurance supplier
7.Ranking 8th in Forklift Manufacturing Industry in the World
HELI is authorized with the independent export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60 countries.
Whatsapp: 0086 13761611524;0086 13072186360
Tel: 0086 13761611524;008613072186360
Email: info at
Skype:sinosky54457 ;pobby_guo258
For more information please visit /
