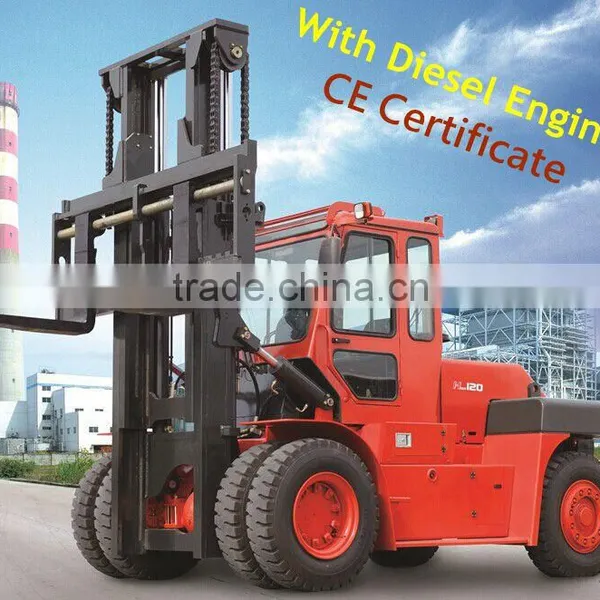

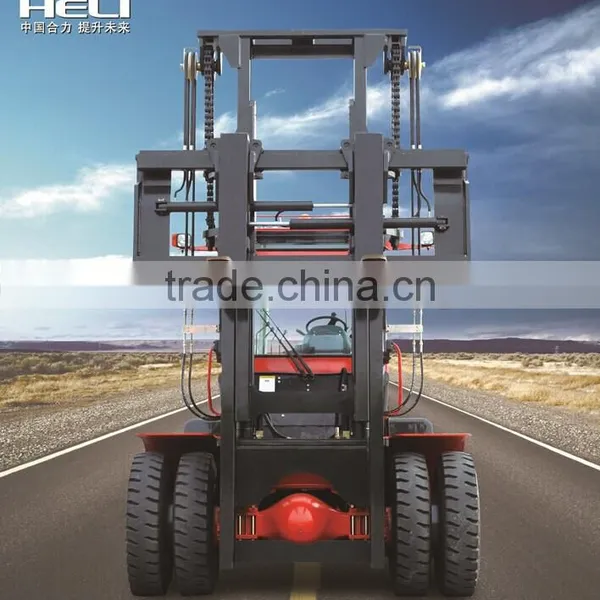

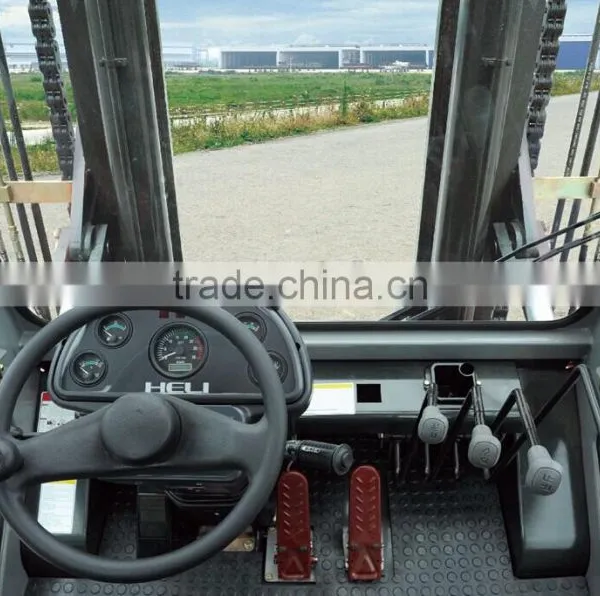

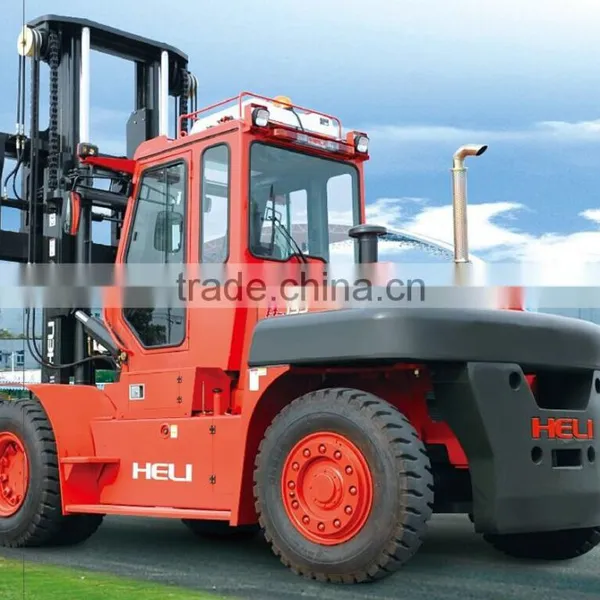

Help CenterHELI FORKLIFT 13.5t H2000 SERIES CPCD135 DIESEL ENGINE WITH CE FOR SALE
Related Products
-
HELI FORKLIFT Empty Container 2 Layer WITH CE FOR SALE HandlerUS$ 5,000 - 15,000MOQ: 1 Set -
HELI FORKLIFT Empty Container 25T WITH CE FOR SALE HandlerUS$ 5,000 - 15,000MOQ: 1 Set
-
HELI FORKLIFT Empty Container 5 Layers WITH CE FOR SALE HandlerUS$ 5,000 - 15,000MOQ: 1 Set
-
HELI FORKLIFT Empty Container 7-8 Layers WITH CE FOR SALE HandlerUS$ 5,000 - 15,000MOQ: 1 Set
-
China Top1 Manufacturer HELI Brand K Series 3Ton Anhui Heli ForkliftUS$ 8,000 - 10,000MOQ: 1 Acre
| No. | Description | CPCD135 | |
| 1 | Fork lifting height | mm | 4715 |
| 2 | Max. lifting height | mm | 3000 |
| 3 | Fork lowed height | mm | 3215 |
| 4 | Fork arm carrier height | mm | 1505 |
| 5 | Free lifting height | mm | 0 |
| 6 | Fork thickness | mm | 85 |
| 7 | Min. ground clearance | mm | 215 |
| 8 | Overall length | mm | 5820 |
| 9 | Overall length (without fork) | mm | 4600 |
| 10 | Fork length | mm | 1220 |
| 11 | Front overhang | mm | 780 |
| 12 | Wheel base | mm | 3000 |
| 13 | Rear overhang | mm | 820 |
| 14 | Traction pin height | mm | 610 |
| 15 | Distance from the surface of the seat to the overhead | mm | 1050 |
| 16 | Overall height | mm | 3300 |
| 17 | Overall width | mm | 2520 |
| 18 | Fork adjustable range | mm | 500-2370 |
| 19 | Front tread | mm | 1950 |
| 20 | Rear tread | mm | 2050 |
| 21 | Fork width | mm | 200 |
| 22 | Min. turning radius | mm | 4500 |
| 23 | Min. right angle stacking aisle width | mm | 3940 |
| 24 | Tilt angle | 6° / 12° | |
| 25 | Load capacity | Kg | 13500 |
| 26 | Load centre | mm | 600 |
| 27 | Engine type | Diesel | |
| 28 | Tyre type | Pneumatic | |
| 29 | Lifting speed (Loaded ) | mm/s | 350 |
| 30 | Lowing speed ( Loaded) | mm/s | 370 |
| 31 | Travelling speed (Loaded/Unloaded) | Km/h | 28/29 |
| 32 | Gradibilty (Loaded/Unloaded) | % | 22 |
| 33 | Wheel ( Front/Rear) | 4/2 | |
| 34 | Tyre (Front/Rear) | 11.00-20-18PR/11.00-20-18P | |
| 35 | Wheel load loaded ( Front/Rear) | Kg | 27850/3650 |
| 36 | Wheel load loaded ( Front/Rear) | Kg | 7500/10500 |
| 37 | Battery voltage/capacity | V/Ah | 24/120 |
| 38 | Service braking | Gas crap --Pedal | |
| 39 | Parking braking | Mechancial --Handle | |
| 40 | Engine model | Xichai CA6110/125ZT-HL20 | |
| 41 | Power/speed | Kw/rpm | 117/2200 |
| 42 | Torque/speed | Nm/rpm | 580/1500 |
| 43 | Engine cylinders | 6 | |
| 44 | Engine displacement | L | 7.127 |
| 45 | Engine fuel capacity | L | 180 |
| 46 | Transmission case ( Front/Rear) | 2/2 Automatic | |
| 47 | Weight | Kg | 18000 |
HELI Company Warehouse:
HELI Company Culture Show:
Parts Supply Including:
1.Genuine parts from the source parts manufacturer for China HELI brand forklift spare parts.
2.Chinese made forklift like counterbalanced forklift , electric battery pallet truck, electric
carrier stacker,Hydraulic system forklift, diesel forklift and so on.
(1) IN GENERAL, WE DELIVER BY SEA, TO MAIN COUNTRIES INCLUDING SOUTH AMERICA, AFRICA,
OCEANIA AND EUROPE ETC.
(2) FOR NEIGHBOUR COUNTRIES OF CHINA, INCLUDING KAZAKHSTAN,UZBEKISTAN ETC. WE CAN SHIP
BY ROAD OR RAILWAY.
(3) FOR SOME SPARE PARTS URGENTLY, WE USUALLY DELIVER BY INTERNATIONAL LOGISTIC SERVICE SUCH
AS DHL, TNT, UPS AND SO ON.
SHANGHAI HELI FORKLIFT TRUCK CO.,LTD IS ONE HOLDING COMPANY OF ANHUI HELI CO.,LTD,FOUNDED IN 2001, IT IS MAINLY ENGAGED IN R&D AND MANUFACTURING OF INDUSTRIAL VEHICLES, CONSTRUCTION NACHINERY AND KEY COMPONENTS, AND OUR FACTORY IS IN ANHUI HELI, AT PRESENT, ITS THE EXPORT BASE OF INDUSTRIAL VEHICLES WIITH LARGEST SCALE, THE MOST COMPLETE INDUSTRY CHAIN, AND THE BEST COMPREHENSIVE AND ECONOMIC PERFORMANCE IN CHINA, IT OWENS A NATIONAL-LEVEL "ENTERPRISE TECHNICAL CENTRE" AND IT HAS BEEN AWARDED AS :NATIONAL INNOVATIVE ENTERPRISE ","STATE-HIGH-TECH ENTERPRISE IN NATIONAL TORCH PROJECT"."HELI' TRADEMARK IS THE "WELL KNOWN TRADEMARK OF CHINA".
