Q-225 Large Spindle Bore Pipe Thread Lathe(Oil Country Lathe)
US$ 20,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
China port.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QK-350A CNC Pipe Threading LatheUS$ 50,000 - 200,000MOQ: 1 Set -
Normal Economical Horizontal Threading LatheUS$ 60,000 - 130,000MOQ: 1 Set
-
Large Bore CNC Horizontal Lathe for Oil FieldUS$ 50,000 - 200,000MOQ: 1 Set
-
Large Bore CNC Oil Field LatheUS$ 50,000 - 200,000MOQ: 1 Set
-
Q-460S Big Hollow Spindle Conventional Pipe Threading LatheUS$ 30,000 - 200,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
Normal
Automatic Grade
Manual
Max. Swing Diameter
630mm
Place of Origin
Henan, China
Brand Name
TIMAC
Model Number
Q-225x1500mm
Voltage
As Customer's Request
Power(W)
7.5kw
Dimension(L*W*H)
3657x1449x1393mm
Weight
4500kg
Certification
ISO, CE
After-sales Service Provided
Engineers available to service machinery overseas
Large Spindle Bore Pipe Thread Lathe(Oil Country Lathe)

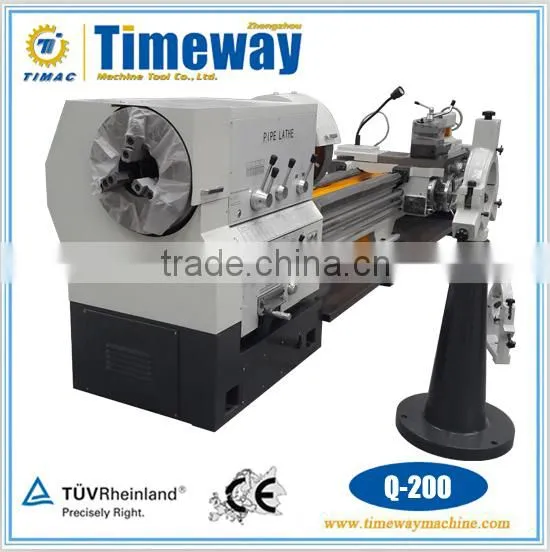

Q-130 Q-200 Q-225
Main Outlook
Product Description
Features:
- The oil country lathes are used for turning pipe threads, inside and outside.
- They can be used to make external circles, holes and end surfaces of shafts or discs as general machine tools.
- Massive headstock with precision spindle running in tapered roller bearings, 2 lathe chuck mounts on both sides
- High torque at the working spindle ensures high chip removal rates when machining parts with large diameters.
- Heavy machine bed made of premium cast-iron with hardened and ground guideways.
- Central, practical controls for feeds and thread leads.
- Wide spectrum of inch and metric threads.
- Gears are hardened and ground.
- Heavy-duty 4-station tool holder.
- Coolant system is included.
Technical Parameter:
| Specification | Q-130 | Q-200 | Q-225 |
| Max. swing dia. over bed | Φ630mm | Φ630mm | Φ630mm |
| Max. swing dia. over carriage | Φ340mm | Φ340mm | Φ340mm |
| Distance between two centers | 1500, 3000mm | ||
| Width of bed | 490mm | 490mm | 490mm |
| Diameter of spindle inner hole | Φ130mm | Φ200mm | Φ225mm |
| Max. Clamped pipe diameter | Φ30~126mm | Φ50~193mm | Φ50~220mm |
| Step of spindle speed | 18 steps | 12 steps | 12 steps |
| Range of spindle speed | 12~642r.p.m | 24~300r.p.m | 20~460r.p.m |
| No. of Metric thread and range | 52 kinds, 1~24mm | 24 kinds, 1~14mm | 21 kinds, 1~15mm |
| No. of Inch thread and range | 40kinds, 2~28T.P.I | 40kinds, 2~28T.P.I | 26kinds, 1~14T.P.I |
| Kind of Longitudinal Feed | 26kinds, 0.07 ~1.33mm | 32kinds, 0.1~1.46mm | |
| Kind of Cross Feed and range | 22kinds, 0.02~0.45mm | 32kinds, 0.04~0.65 | |
| Tool section ( H×W ) | 30×30mm | 30×30mm | 30×30mm |
| Diameter of tailstock sleeve | Φ100mm | Φ100mm | Φ100mm |
| Travel of tailstock sleeve | 205mmmm | 205mmmm | 250mm |
| Taper of tailstock sleeve | Morse No. 5 | Morse No. 5 | Morse No. 5 |
| Main motor power | 7.5kw | 7.5kw | 11kw |
| Overall size ( L x W x H) | (3657, 5157) × 1449 × 1393mm | ||
| Weight | 4260, 5110kg | 4440, 5290kg | 4500, 5350kg |
Standard Configuration:
- 4 - jaw independent chuck, 2 sets
- Taper turning device, 1 set
- Out board support, 1 piece
- Manual moving tailstock
- Chuck & tool post guard
- Coolant system, Halogen light
- Maintenance tool & tool box
- Operation manual in English

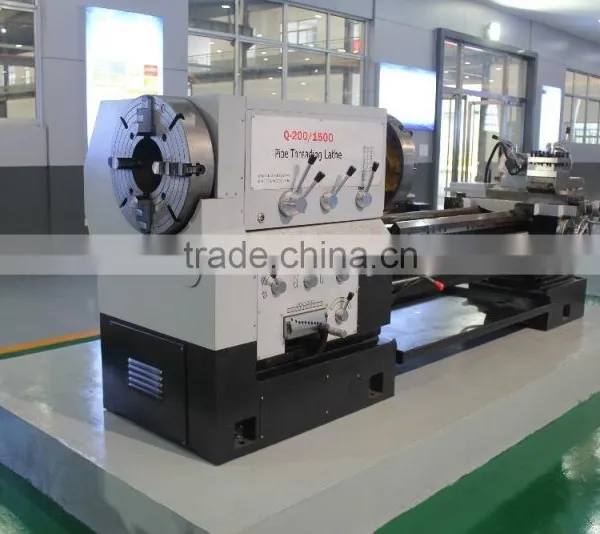

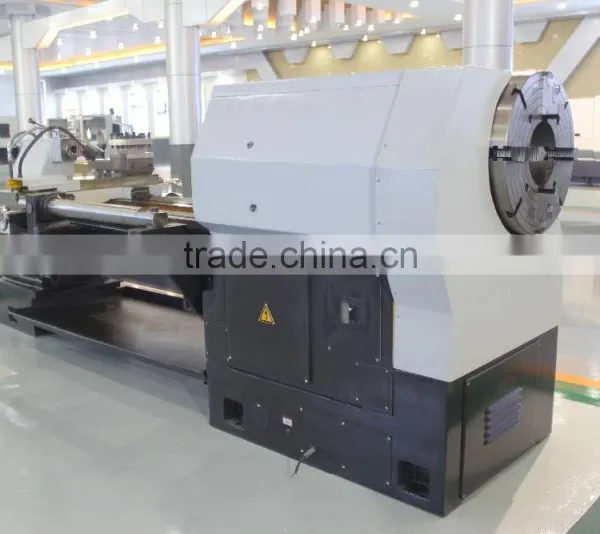

Detail Images

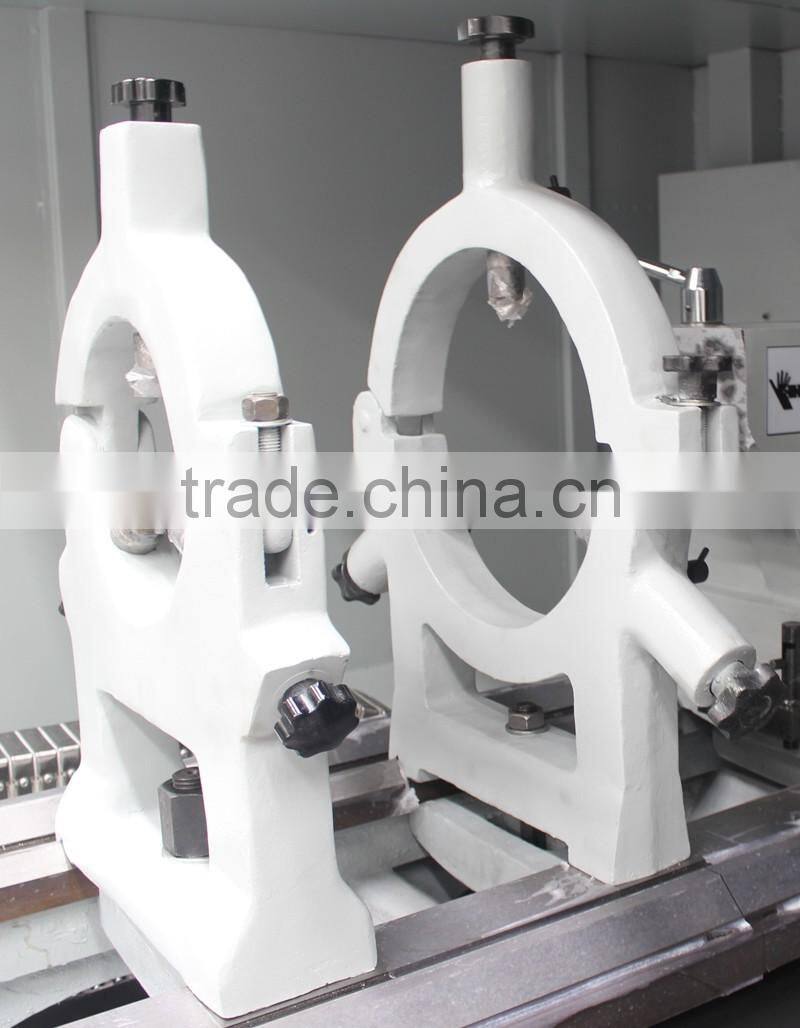

• Taper Turning Device • Steady Rest(Optional) • Follow Rest

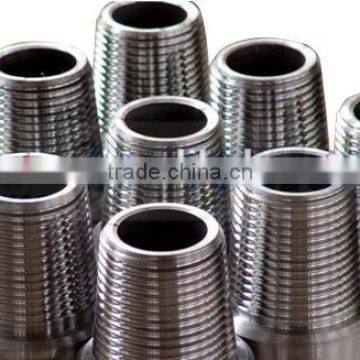

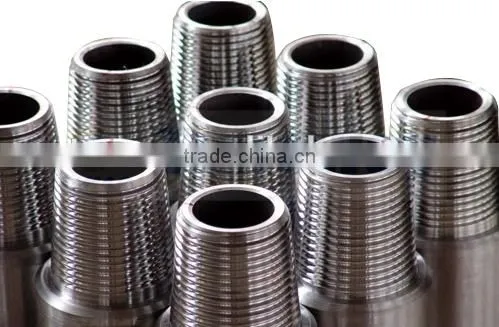

• Fine turning for taper threads(Thread pitch: 3.175mm, Taper: 1:16), After tested by special measuring device, ensure that the clients can get the workpieces they want.

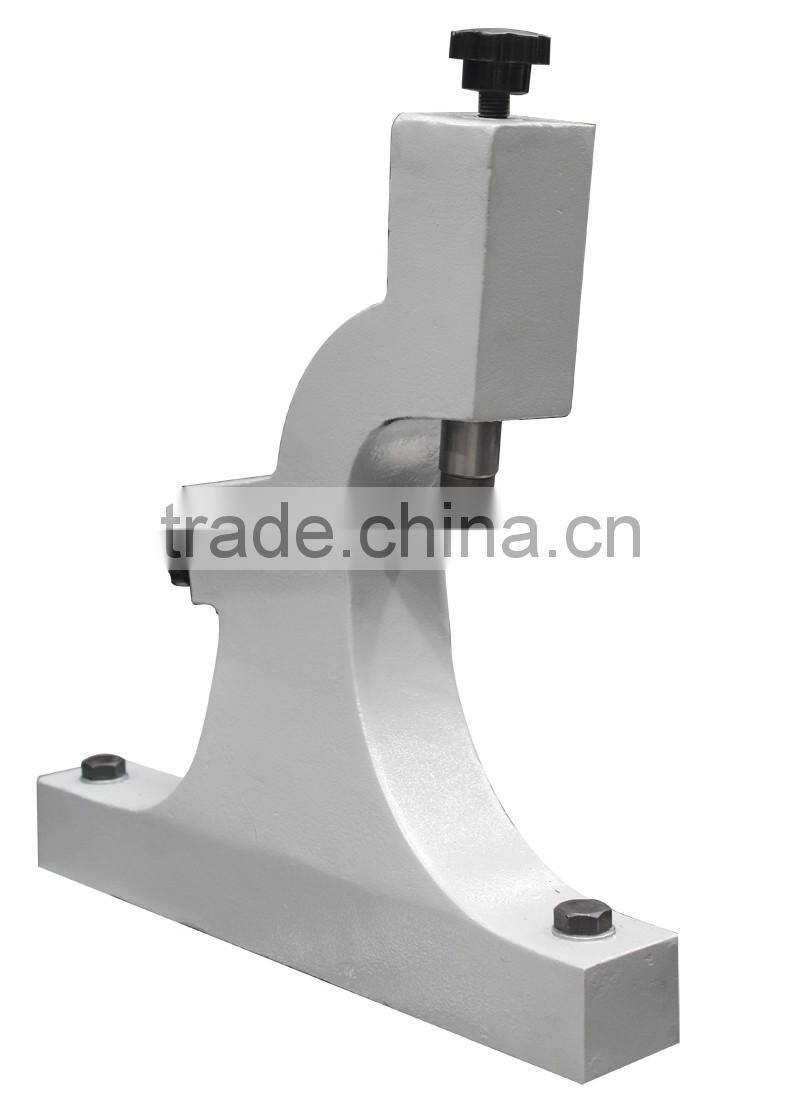

• According diffetent spindle bore machine tool, we provide two rear support (light-type and heavy-type) for customers, conveniently machining long workpieces.
