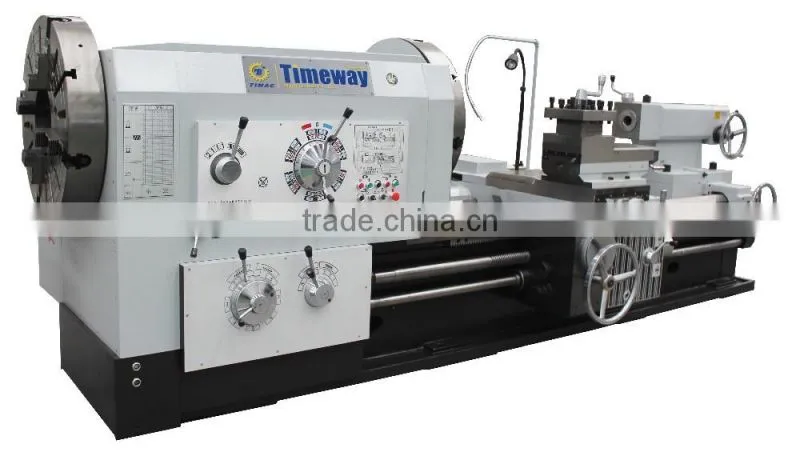

Q-330 Oil Country Heavy Duty Manual Lathe

FOB Price

USD $20,000 - $150,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port China Port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Horizontal	CNC or Not:	Normal
Automatic Grade:	Manual	Max. Swing Diameter:	1000mm	Brand Name:	TIMAC
Model Number:	Q-330	Voltage:	380v 50hz	Power(W):	22kw
Dimension(LWH):	5000x2100x1630mm	Weight:	11500kg	Certification:	CE ISO
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Oil Country Heavy Duty Manual Lathe

Application:

The series lathe is including all functions and performances of common lathe, it is used for turning internal and external (taper) threads. So pipe threading lathe can become a kind of special-use lathe.

According to different diameter of workpieces, customer can choose different machine tools. We can provide follows:

Q-130 (130mm), Q-200 (200mm),

Q-225 (225mm), Q-240 (240mm),

Q-280 (280mm), Q-330 (330mm),

Q-390 (390mm), Q-440 (440mm),

Q-520 (520mm).

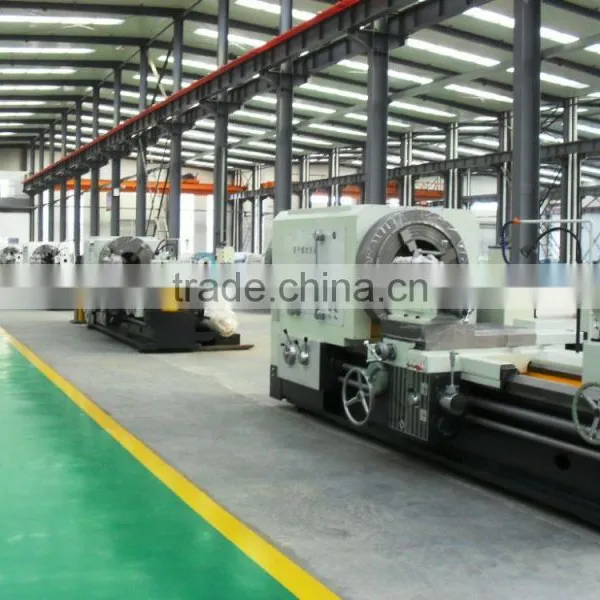

Main Outlook

Product Description

Features:

The oil country lathes are used for turning pipe threads, inside and outside.
They can be used to make external circles, holes and end surfaces of shafts or discs as general machine tools.
Massive headstock with precision spindle running in tapered roller bearings, 2 lathe chuck mounts on both sides
High torque at the working spindle ensures high chip removal rates when machining parts with large diameters.
Heavy machine bed made of premium cast-iron with hardened and ground guideways.
Central, practical controls for feeds and thread leads.
Wide spectrum of inch and metric threads.
Gears are hardened and ground.
Heavy-duty 4-station tool holder.
Coolant system is included.

Technical Parameter:

Q-130 Q-200 Q-225 Q-240

Specification		Unit	Q-130	Q-200	Q-225	Q-240
Capacity	Swing over bed	mm	Φ630/Φ800	Φ630/Φ800	Φ630/Φ800	Φ800
	Swing over cross slide	mm	Φ340/Φ540	Φ340/Φ540	Φ340/Φ540	Φ480
	Distance between centers	mm	1500/3000	1500/3000	1500/3000	1500/3000
	Pipe threading range	mm	Φ30-126	Φ50-193	Φ50-220	Φ60-230
	Bed width	mm	550	550	550	705
	X-axis travel	mm	320	320	320	320
	Z-axis travel	mm	1310/2810	1310/2810	1310/2810	1310/2810
	Max. load capacity	kg	3000	3000	3000	3000
Spindle	Spindle bore	mm	Φ130	Φ200	Φ225	Φ240
	Spindle speed steps	steps	FWD.18/REV.9	FWD.12/REV.6	FWD.12/REV.6	12
	Spindle speed	rpm	12-642/19-800	24-300/38-384	24-300/38-384	20-460
	Chuck size	mm	Φ400	Φ520	Φ520	Φ630
	Chuck type	-	3-jaw manual	4-jaw manual	4-jaw manual	4-jaw electric
Turret	Turret type	-	Manual 4 stations	Manual 4 stations	Manual 4 stations	Manual 4 stations
	Tool shank size	mm	32x32	32x32	32x32	32x32
	Turret travel	mm	200	200	200	200
Feed	X-axis feed kinds/range	mm/r	22/0.02-0.45	22/0.02-0.45	22/0.02-0.45	22/0.02-0.45
	X-axis rapid feed	mm/min	2300	2300	2300	2300
	Z-axis feed kinds/range	mm/r	26/0.07-1.33	26/0.07-1.33	26/0.07-1.33	26/0.07-1.33
	Z-axis rapid feed	mm/min	4000	4000	4000	4000
Thread Cutting	No. of Metric thread and range	mm	52/1-224	24/1-14	24/1-14	1-15
	No. of Inch thread and range	T.P.I.	40/2-28	40/2-28	40/2-28	1-14
	No. of Module thread and range	mm	-	-	-	0.5-7.5
	No. of DP thread and range	D.P.	-	-	-	2-28
Tailstock	Tailstock quill diameter	mm	Φ100	Φ100	Φ100	Φ100
	Tailstock quill taper	-	MT5#	MT5#	MT5#	MT5#
	Tailstock quill travel	mm	250	250	250	250
Power	Main motor power	kw	7.5	7.5	7.5	18.5
	Rapid motor power	kw	0.3	0.3	0.3	1.1
	Coolant motor power	kw	0.125	0.125	0.125	0.125
Others	Machine dimensions	mm	3657/5157 x1360x1480	3657/5157 x1360x1555	3657/5157 x1360x1555	4190/5690 x2000x1520
Others	Machine weight	kg	3800/4600	4200/5050	4300/5150	8500/9500

Q-280 Q-330 Q-390 Q-440 Q-520

Specification		Unit	Q-280	Q-330	Q-390	Q-440	Q-520
Capacity	Swing over bed	mm	Φ1000	Φ1000	Φ1000	Φ1000	Φ1250
	Swing over cross slide	mm	Φ610	Φ610	Φ610	Φ610	Φ810
	Distance between centers	mm	1500/3000	1500/3000	1500/3000	1500/3000	1500/3000
	Pipe threading range	mm	Φ130-270	Φ190-320	Φ190-380	Φ270-430	Φ350-510
	Bed width	mm	755	755	755	755	755
	X-axis travel	mm	520	520	520	520	520
	Z-axis travel	mm	1300/2800	1300/2800	1300/2800	1300/2800	1300/2800
	Max. load capacity	kg	5000	5000	5000	5000	5000
Spindle	Spindle bore	mm	Φ280	Φ330	Φ390	Φ440	Φ520
	Spindle speed steps	steps	12	9	9	9	9
	Spindle speed	rpm	16-380	7.5-280	6-205	4.9-180	4.9-180
	Chuck size	mm	Φ800	Φ780	Φ850	Φ1000	Φ1000
	Chuck type	-	4-jaw manual	4-jaw electric	4-jaw electric	4-jaw electric	4-jaw electric
Turret	Turret type	-	Manual 4 stations	Manual 4 stations	Manual 4 stations	Manual 4 stations	Manual 4 stations
	Tool shank size	mm	40x40	40x40	40x40	40x40	40x40
	Turret travel	mm	300	300	300	300	300
Feed	X-axis feed kinds/range	mm/r	64/0.05-12.15	22/0.02-0.45	32/0.095-1.44	22/0.02-0.45	32/0.095-1.44
	X-axis rapid feed	mm/min	1870	1870	1870	1870	1870
	Z-axis feed kinds/range	mm/r	64/0.1-24.3	26/0.07-1.33	32/0.095-1.4	26/0.07-1.33	32/0.095-1.4
	Z-axis rapid feed	mm/min	3740	3740	3740	3740	3740
Thread Cutting	No. of Metric thread and range	mm	30/1-30	23/1-15	23/1-15	23/1-15	23/1-15
	No. of Inch thread and range	T.P.I.	27/1-28	22/2-28	22/2-28	22/2-28	22/2-28
	No. of Module thread and range	mm	-	-	-	-	-
	No. of DP thread and range	D.P.	-	-	-	-	-
Tailstock	Tailstock quill diameter	mm	Φ140	Φ140	Φ140	Φ140	Φ140
	Tailstock quill taper	-	MT6#	MT6#	MT6#	MT6#	MT6#
	Tailstock quill travel	mm	300	300	300	300	300
Power	Main motor power	kw	22	22	22	22	22
	Rapid motor power	kw	1.5	1.5	1.5	1.5	1.5
	Coolant motor power	kw	0.125	0.125	0.125	0.125	0.125
Others	Machine dimensions	mm	5000/6500 x2100x1600	5000/6500 x2100x1630	5000/6500 x2100x1680	5000/6500 x2100x1680	5000/6500 x2100x1700
Others	Machine weight	kg	10000/11500	11500/13000	12800/14300	13000/14500	15000/16500

Standard Configuration:

3/4 - jaw chuck, 2 sets
Taper turning device, 1 set
Out board support, 1 piece
Manual moving tailstock
Chuck & tool post guard
Coolant system, Halogen light
Maintenance tool & tool box
Operation manual in English

Detail Images

Q-130 & Q-200:

Q-280 & Q-330:

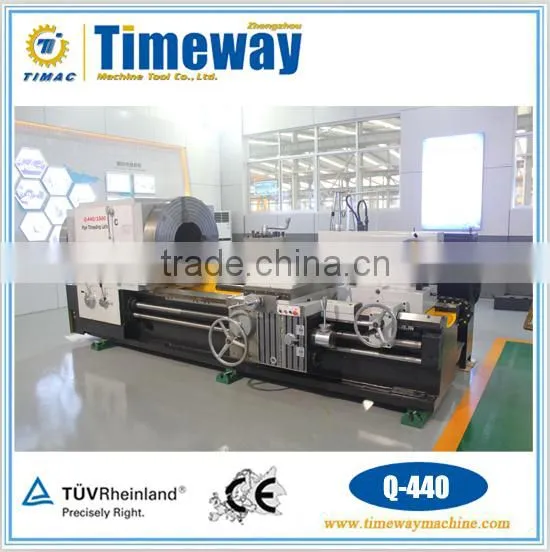

Q-440 & Q-520:
