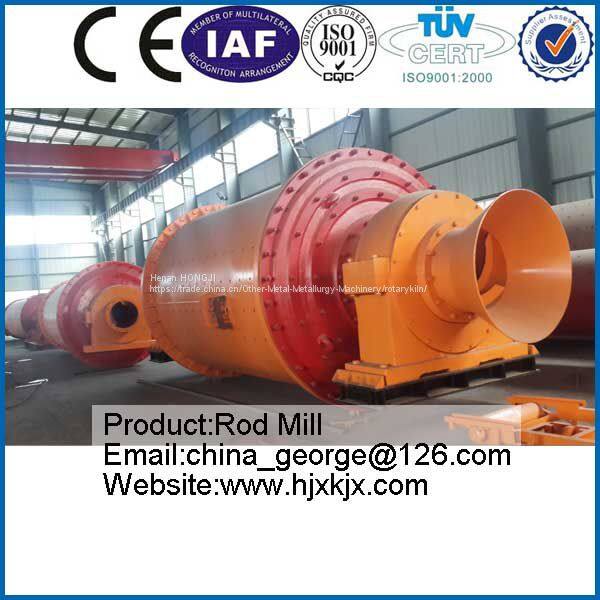

Purpose: the key equipment for recrushing the materials after they are primarily crushed & widely used for the dry type or wet type grinding of all kinds of ores and other grindable materials
Material handling: cement, cement clinker, silicate, fertilizer, construction waste, ferrous metal and non-ferrous metal, glass ceramics, etc.
Application Fields: in cement, silicate product, new building material, refractory material, fertilizer, ferrous and non-ferrous metals and glass ceramic industry
Feeding Size: ≤25mm;
Discharge Granularity: 0.074-0.4 mm, 45-200 mesh;
Capacity: 0.65-615 t/h
MOQ: 1set
Payment Terms: L/C; TT
Delivery: About 10 working days after receive of the payment
Packaging: seaworthy and long ditance transportation sustainable packaging
Certificate: ISO, CE
Features & Advantages
This machine has stable operation and reliable performance.
The hollow shaft uses steel casting, the inner lining can be dismantled and changed.
The rotary rack wheel uses casting gear hobbing.
Inside the cylinder there is wear-resisting lining board which has fine abrasion performance.
Cylinder takes overall annealing process, eliminating welding stress and prevent deformation.
Flanges on both ends of the cylinder adopt large CNC lathes and special processing technology which fully guarantee concentricity.
Working Principle
This machine is a horizontal type cylinder rotary device and outside the cylinder there is drive gear which drives the cylinder to rotate during the working process. Materials spirally and evenly go into the first cabin of the grinding machine through the feeding hollow shaft from the feeding device, and inside the first cabin, there are ladder lining boards or ripple lining board in which there are many steel balls with different specifications. The cylinder rotates and produces eccentric force to bring the steel balls to a certain height, and then the steel balls will fall down to impact and grind the materials. After being coarsely ground in the first cabin, the materials will go through the single-layer partition board and into the secondary cabin in which there are flat lining board, and in the lining board there are steel balls to further grind the materials. Finally the powdery materials will be discharged from the discharging grating bar to complete the powder grinding process.
