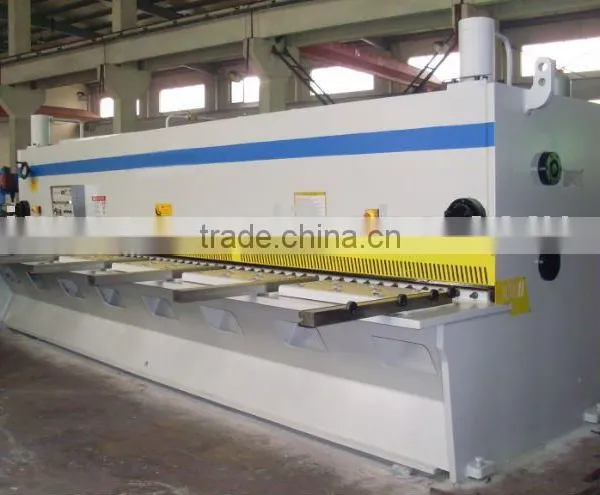

Hydraulic Guillotine Shear Machine

Model: HGS-20x6000

Main features:

1. Welded steel plate construction, heating to eliminate stress, with high strength and good rigidity;

2. Advanced integrated hydraulic system with an excellent reliability.

3. The rolling guide with 3-point support and improves the shearing quality.

4. Rapidly, accurately and conveniently adjusting the blade clearance with the handwheel.

5. The rectangular monoblock blades featuring long lifetime with 4cut-ting edges.

6. The adjustable rake angle can minimize plate deformation.

7. As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can be also guaranteed.

8. Shearing in sections, shadow-line cutting.

Technical parameter :

Cutting thickness: 20mm;

Cutting width: 6000mm;

Stroke Number(time/min): 3~4(Max stroke );

Travel of back-gauge: 1000mm;

Range Cutting angle: 0.5°-2.5°;

Throat depth: 100mm;

Power of main motor: 60KW;

Gross Weight: 46000KG;

Dimensions (Iron Pallet): LxWxH=7100x2650x3200mm

Main component of the machine:

1. Main electrical equipments: Schneider;

2. The backgauge with Mechanical digital Display: SIKO made in Germany;

3. Main oil seals of the cylinders: NOK-made in Japan;

4. Advanced integrated hydraulic system;

5. Fully Safety guard protects the rear, throat and front;

6. Rear Safety guard with Photoelectric;

7. Foot Pedal with emergency stop;

8. The safety of electrical cabinet with interlock;

9. With workpiece receiver.
