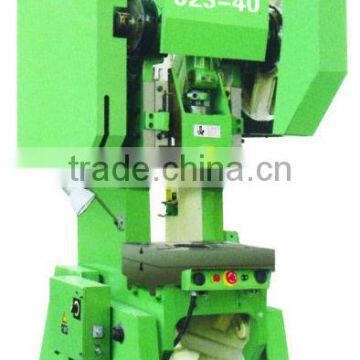

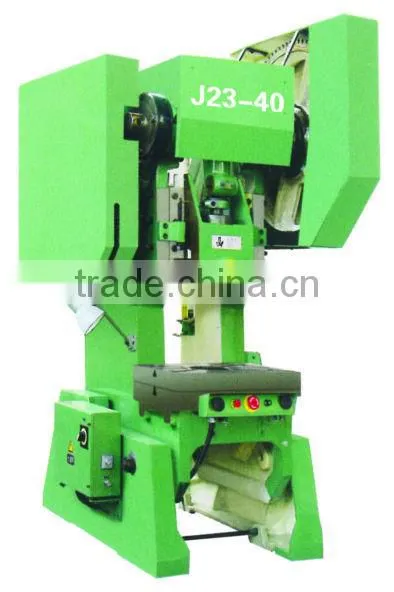

POWER PRESS MACHINE

Specifications

1. C-Frame inclinable power press
2. Switch-button type rigid clutch-brake
3. Nominal pressure 6.3-80ton

Specifications		Unit	J23-6.3	J23- 10	J23-16	J23-16A	J23-20	J23-25A	J23-35	J23-40	J23-63	J23-80
Norminal pressure		kN	63	100	160	160	200	250	350	400	630	800
Norminal pressure stroke		mm	1.5	2	2	2	2	2.5	3	4	4	5
Stroke of slide		mm	35	60	70	90	90	90	100	100	120	120
Strokes		S.P.M	170	145	122	125	90	55	53	55	50	50
Max. die set height		mm	115	130	160	140	180	180	150	220	270	270
Die height adjustment		mm	30	50	60	60	70	70	70	80	90	90
Depth of throat		mm	110	130	160	200	175	190	205	240	260	280
Distance between uprights		mm	145	185	220	305	240	260	290	300	350	380
Size of table	L-R	mm	310	360	450	620	500	560	610	700	710	710
	F-B	mm	200	240	300	380	330	360	380	460	480	480
	Thickness	mm	35	50	60	60	70	70	70	80	90	90
Hole of table	Diameter	mm	φ60	φ100	φ110	φ110	φ110	φ120	φ130	φ150	φ180	φ180
Bottom size of slide	L-R	mm	140	170	200	200	220	250	255	320	320	320
	F-B	mm	120	150	180	180	200	210	210	270	280	280
Holr for punch shank	Diameter	mm	φ30	φ30	φ40	φ40	φ40	φ40	φ40	φ50	φ50	φ50
	Depth	mm	55	55	60	60	60	60	60	70	80	80
Motor power		kW	0.75	1.1	1.5	1.5	2.2	2.2	3	4	5.5	7.5
Overall dimension	F-B	mm	780	850	1140	1200	1200	1350	1480	1500	1890	1890
	L-R	mm	550	670	905	850	880	950	1050	1180	1400	1400
	Height	mm	1500	1670	1890	1850	2000	2130	2220	2300	2750	2820
Total weight		kg	380	560	1090	1190	1400	1950	2250	3400	4600	5300







Features:

1. The machine body in inclinable casting structure, with high-rigidity, less deformation and excellent performance of shock absorption.

2. With switch-button type rigid clutch-brake, fast response, and the safety performance is reliable.

3. The crankshafts lay across, the slide adopts V-type guides for orientation, with high precision.

4. Equipped with press-down type safety device, which ensure the safety production of press.

5. Manual moulding-adjustment, scale display.

6. The machine adopts emergency brake, which can control the emergent events during the process of slider coming down, such as when arms or something else enter into the slider working area, the slider can stop at any position of down stroke.

7. Can equip with optional photoelectric protection, transmission output shaft, feeding device, air cushion etc. accorind to customer request.
