1. Universal dividing head
2. Milling dividing
3. TS-2
4. Popular export & competitive price

UNIVERSAL DIVIDING HEAD



Features:

1. The Universal dividing head (Index Center) has been designed to carry out all types of gear cutting.

2. Precision dividing and spiral word with greater precision and efficiency than before .

3. The center face can adjust from elevation 90 to depression 10,It suits for high standard inspection and test.

4.  In order to  satisfied customers,the worm gear radio is designed for 1:40.



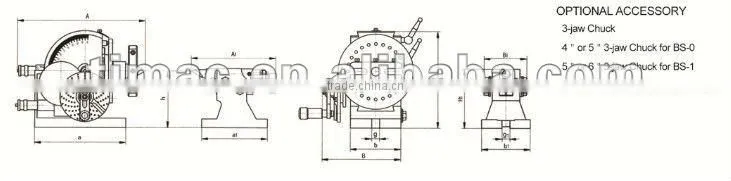

UNIVERSAL DIVIDING HEAD



UNIVERSAL INDEX CENTER (HEAD-STOCK)

Unit:mm/in
Model A B H h a b g Work hole taper N.W.(kg)
TBS-2 370 280 236 133 212 134 16 MT4 73
14.57 11.02 9.29 5.24 8.35 5.28 0.63 B&SN0.10



UNIVERSAL INDEX CENTER (TAIL-STOCK)
Unit:mm/in
Model A1 B1 H1 h a1 b1 g1 N.W.(kg) Measurement m³
TBS-2 183 87 156 133 175 122 16 Packed with the Dividing Head
7.2 3.42 6.14 5.24 6.89 4.8 0.63



STANDARD ACCESSORIES
Dividing plate A,B,C.



Numbers of holes of dividing plate(worm gear reduction ratio 1:40)
Unit:mm/in
Numbers of hole. Plate A 15 16 17 18 19 20
Plate B 21 23 27 29 31 33
Plate C 37 39 41 43 47 49
