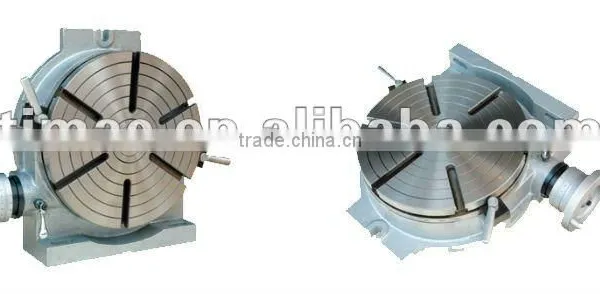

VERTICAL/HORIZONTAL ROTARY TABLE



Features:

1. TSL vertical & horizontal rotary table is one of the main accessory of milling machine, it is used for index boring ,milling, circle cutting, spot facing and boring hole etc on milling machine.Rotary table in vertical with tailstock working together, it can used on complex work for circle index boring and milling .
2. As clients’ special requirements, the TSL with left handwheel can be offered.



Main specifications:

Specification TSL150 TSL200 TSL250 TSL300 TSL350 TSL400
Table diameter mm Φ150 Φ200 Φ250 Φ300 Φ350 Φ400
Morse taper of the center hole 3# 4# 4# 4#
Height of center for Verti.mounting mm 100 135 165 195 230 260
width of the T-slot mm 12 14
Adjacent angle of table T-slot 90° 60°
Width of the locating key mm 16 18
Modules of worm and worm gear 1.5 2 2.5 3.5
Transmission ratio of the worm gear 0.104166667
Graduation of the table 360°
Rotating angle of table with one 4°(1' per graduation)
revolution of the worm

Minimum value of vernier 10"
Indexing accuracy   80° 60°
Max.bearing(with tabele Hor.)kg 100 150 200 250 300 350
Max.bearing(with table Vert.)kg 50 75 100 125 150 175

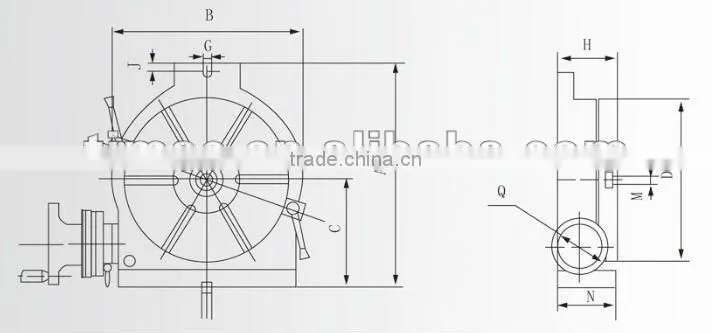

DIMENSIONAL SKETCH:

VERTICAL/HORIZONTAL ROTARY TABLE



Installation sketch and dimensions:

Model TSL150 TSL200 TSL250 TSL300 TSL350 TSL400
A 200 265 325 388 450 525
B 160 220 280 330 390 450
C 100 135 165 195 230 260
D Φ150 Φ200 Φ250 Φ300 Φ350 Φ400
E 16 18
G 17
H 83 105 115 135 138 150
J 10 10 15
M MT2 MT3 MT4
N 78 98 113 133 128 145
Net weight kg 14 28 43 71 83 93
Gross weight kg 15 30 45 73 85 95
Case dimensions 27×24×13 38×30×16 45×35×18 55×45×19 55×48×19 55×50×20
