Home > Manufacturing & Processing Machinery > Machine Tools > Grinding Machine > BUG-320G High Precision Semi-automatic Universal Cylindrical Grinder Machine

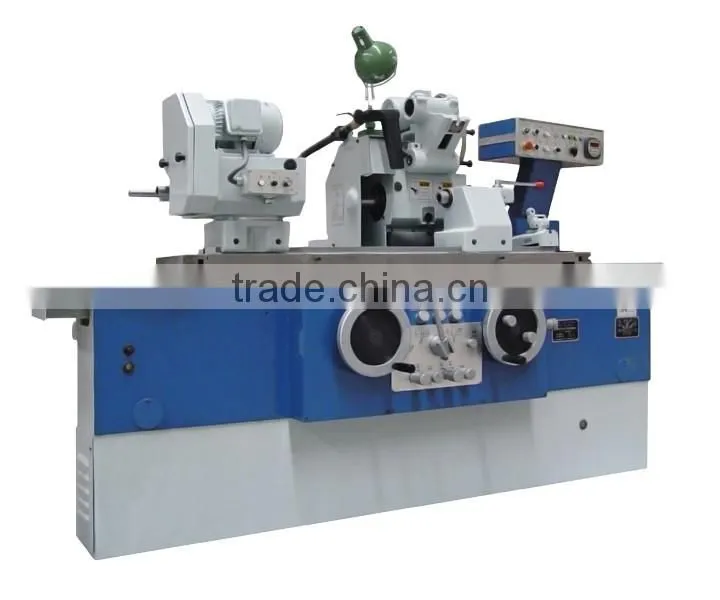

BUG-320G High Precision Semi-automatic Universal Cylindrical Grinder Machine

Name: BUG-320G High Precision Semi-automatic Universal Cylindrical Grinder Machine
Brand: TIMAC
SKU: 140797368
Availability: InStock

BUG-320G High Precision Semi-automatic Universal Cylindrical Grinder Machine thumbnail-1

BUG-320G High Precision Semi-automatic Universal Cylindrical Grinder Machine photo-1

US$ 10,000 - 35,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Cylindrical Grinding Machine

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Cylindrical Grinding Machine

CNC or Not Normal

Max. Grinding Diameter 320mm

Max. Grinding Length 1000mm

Brand Name TIMAC

Model Number BUG-320G

Voltage 380V 50Hz

Power(W) 7.5kw

Dimension(L*W*H) 3800*2200*2200mm

Weight 3500kg

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

High Precision Universal Cylindrical Grinding Machine

BG-320G BGB-320G BUG-320G BUGB-320G

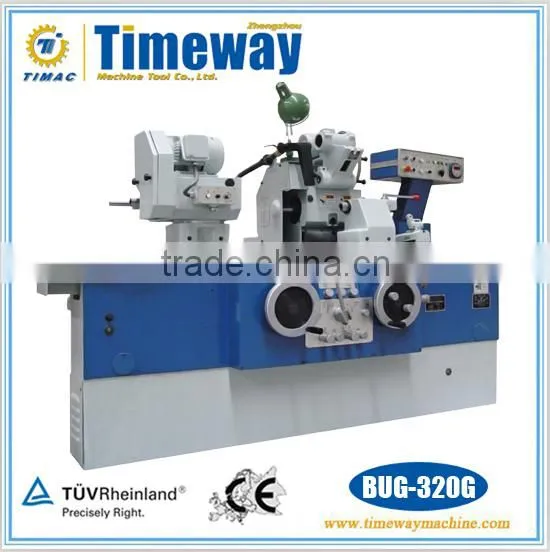

Main Outlook

Main Performances

Features and Performance

With the screw pump adopted in the hydraulic drive system and it gains features of smooth running and low running noise.
Equipped with sleeve type big conical degree hydrodynamic bearing shafting with integral bearing bush in wheel head, high rotary precision and rigidity are realized.
The feeding guideway uses antifriction & plastic-filming guideway, thus promoting the smoothness and vibration resistance of low-speed operations.
Besides the advantages of high machining accuracy, reasonable overall layout and attractive appearance, the operating handles of the machine are centralized arranged and viesualization, thus to make the machine easy to control and safe to operate.
With the function of semi-automatic plunge-cut grinding and longitudinal grinding controlled by the sizematic grinding or automatic measuring instrument, the machine of BGB/BUGB type (high-precision semi-automatic) can be used for processing small lot or batched high precision parts.
For the BGB/BUGB type machine (high-precision semi-automatic), all the grinding functions and sequence of operation in the processing cycle are controlled by PLC.

Main Accessories

Balancing mandrel
Wheel balancing stand
Three-jaw chuck(Only for universal machines Φ130mm)
Internal grinding attachment(Only for universal machines)
Wheel flange
Coolant tank (Optional magnetic coolant separator is available)
Stand grinding wheel dresser

Special Accessories

Closed center rest(Φ10-Φ75mm)
Open center rest(Φ5-Φ50mm)
Four-jaw chuck(Φ160mm)
Automatic measuring device(For semi-automatic machines)
Paper filter(High precision machine tool accessory)
Magnetic coolant separator

Specifications List

Technical Parameters

Specifications		Units	BG-320G BGB-320G			BUG-320G BUGB-320G
			*500	*750	*1000	*500	*750	*1000
Height of center		mm	180			180
Distance between centers		mm	520	765	1050	520	765	1050
Maximum swiveling diameter		mm	350			350
Maximum grinding length		mm	500	750	1000	500	750	1000
Range of external grinding		mm	5-320			5-320
Range of internal grinding		mm	-			16-125
Maximum internal grinding depth(over 45mm)		mm	-			160
Maximum workpiece weight between centers		kg	50
Grinding wheel	OD.WID.	mm	400(32-50)203
	Maximum linear speed	m/s	35
Swiveling angle of worktable	Clockwise	°	9	8	3	9	8	3
	Counter-clockwise	°	9	8	7	9	8	7
Taper hole of spindle	Work head		Morse4
	Tailstock		Morse4
Total power		Kw	7			7.5
Net weight		kg	2500	3000	3500	2500	3000	3500
Gross weight		kg	3100	3600	4100	3100	3600	4100
Overall dimensions	Length	mm	2800	2900	3800	2800	2900	3800
	Width	mm	2200
	Height	mm	2200

Working Accuracy

Inspection content	Sketch oftest-piece and machining condition(mm)	Inspection item	Units	BG-320G BGB-320G			BUG-320G BUGB-320G
				*500	*750	*1000	*500	*750	*1000
Grinding accuracy of testpiece between centers	L=150 d=50	Roundness	mm	0.0005			0.0005
	L=200 d= 60
	L=350 d=35	Consistency of the diameter in longitudina section	mm	0.003		-	0.003		-
	L=750 d=75			-		0.005	-		0.005
	-	Roughness	um	Ra≤0.01			Ra≤0.01
The grinding accuracy of short testpiece on chuck	L=30 d=60	Roundness	mm	-			0.002
	-	Roughness	um	-			Ra≤0.04
The accuracy of testpiece internal grinding on chuck	L=50 d=30	Roundness	mm	-			0.002
	L=100 d=60
	-	Roughness	um	-			Ra≤0.04
Accuracy of testpiece plunge cut grinding	L=30 d=25	Consistency of batched parts diameter after grinding	Fixed distance grinding: 0.012/20 pieces Automatic measuring device: 0.005/20 pieces
	L=30 d=40
