Home > Manufacturing & Processing Machinery > Machine Tools > Grinding Machine > 300x600, 300x1000 CNC Hydraulic Surface Grinding Machine

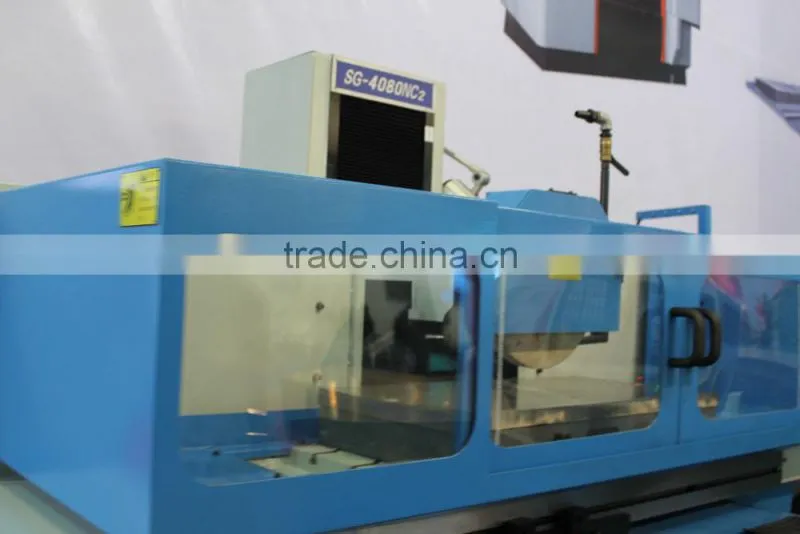

300x600, 300x1000 CNC Hydraulic Surface Grinding Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Surface Grinding Machine
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BGK-320 High Speed CNC Cylindrical Grinding MachineUS$ 20,000 - 50,000MOQ: 1 Set -
BGDK-200 CNC End Face Cylindrical Grinding MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
CNC Retifica Cilindrica Universal GK-320US$ 26,560 - 29,850MOQ: 1 Set
-
BUG-500 Large-size Cylindrical Grinding MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
BUG-320 Internal and External Cylindrical Grinding MachineUS$ 10,000 - 40,000MOQ: 1 Set
Condition
New
Type
Surface Grinding Machine
CNC or Not
CNC
Place of Origin
Henan, China
Brand Name
TIMAC
Model Number
SG-3063CNC, SG-30100CNC
Certification
ISO, CE, TUV
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.CNC surface grinding machine;2.Siemens Sinumerik 808D CNC control;
3.Working area of 30/600mm;
4.Saddle-move arrangement;

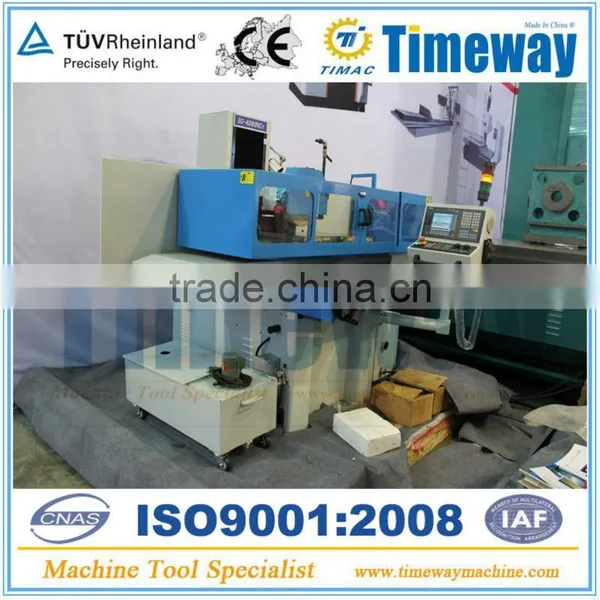

CNC Hydraulic Saddle Moving Type Surface Grinding Machine
CNC controller: Siemens SINUMERIK 808D;
CNC2 series : hydraulic for longitudinal direction, CNC for cross and vertical direction;
CNC3 series: CNC for longitudinal, cross and vertical direction.
***Standard Accessories:
SIEMENS SINUMERIK 808D CNC system;
Coolant tank, Electronic magnetic chuck, Wheel balancing arbor, Wheel flange,
Wheel extractor, Leveling wedge and bolt, Tool box & tools, Standard grinding wheel,
Wheel dresser stand, Diamond pen, Built in electro magnetic chuck controller, etc.
| Specification | Unit | SG-3063CNC2 | SG-30100CNC2 | |
| SG-3063CNC3 | SG-30100CNC3 | |||
| Table size(WxL) | mm | 305x635 | 305x1020 | |
| Max. longitudinal travel | mm | 765 | 1130 | |
| Max. cross travel | mm | 340 | 340 | |
| Max.distance from spindle center to table surface | mm | 580 | 580 | |
| Electro magnetic chuck size | mm | 300x600 | 300x1000 | |
| Table longitudinal movement | Speed | m/min | 5~25(CNC2 model); 0.02~15(CNC3 model) | |
| Feed of electro hand wheel | mm/div. | 0.005 (CNC3 model) | ||
| Table transverse movement | Auto feed | mm/stroke | 0.1~8 | |
| Rapid speed | mm/min | 0.05~1 | ||
| Feed of handwheel | mm/div. | 0.005 | ||
| Wheelhead vertical movement | Auto feed | mm/stroke | 0.005~0.05 | |
| Rapid speed | mm/min | 0.05~1 | ||
| Feed of handwheel | mm/div. | 0.005 | ||
| Grinding wheel | Speed | rpm | 1450(50Hz), 1750(60Hz) | |
| Size(ODxWxID) | mm | 350x40x127 | ||
| Spindle motor | kw | 5.5 | ||
| Hydraulic motor | kw | 2.2 (CNC2 model) | ||
| Cooling pump motor | kw | 0.125 | ||
| Parellism of working surface to mounting base | mm | 300:0.005 | ||
| Roughness of working surface | μm | Ra≤0.63 | ||
| Max.loading capacity of table(include magnetic chuck) | kg | 270 | 400 | |
| Height of machine | mm | 1890 | ||
| Floor space(LxW) | mm | 3800x2200 | 4400x2200 | |
| Gross weight | kg | 2800 | 3500 | |
