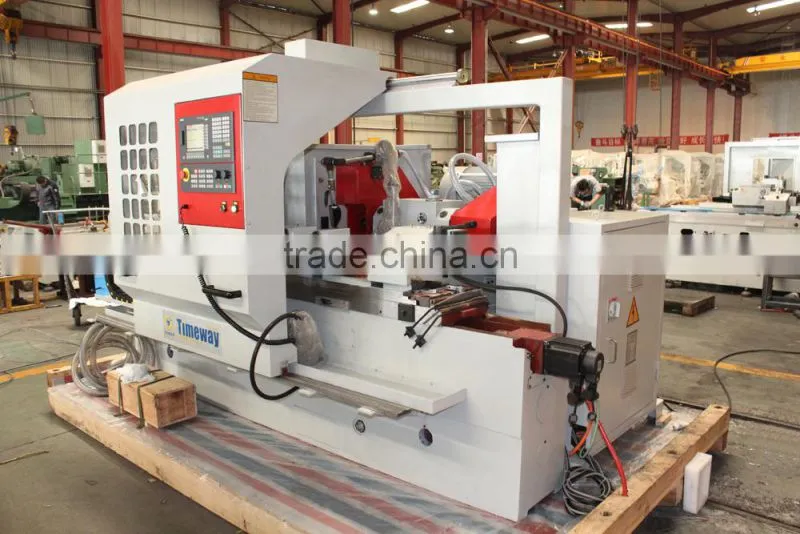

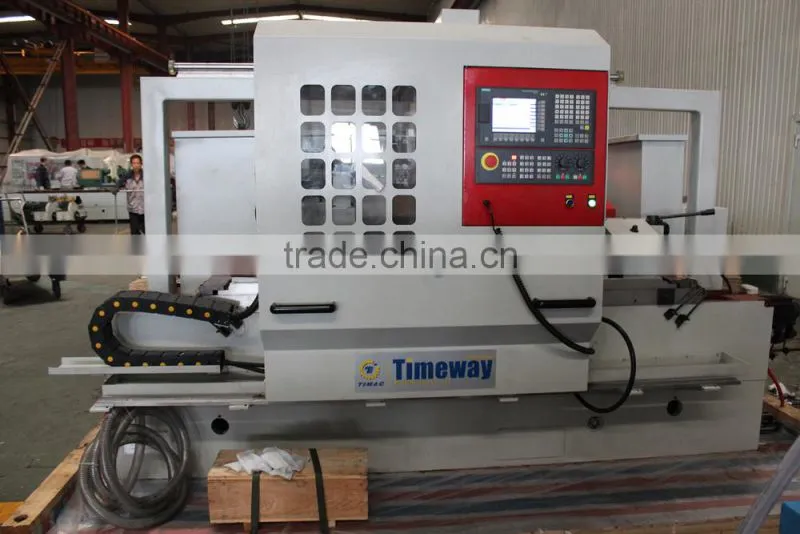

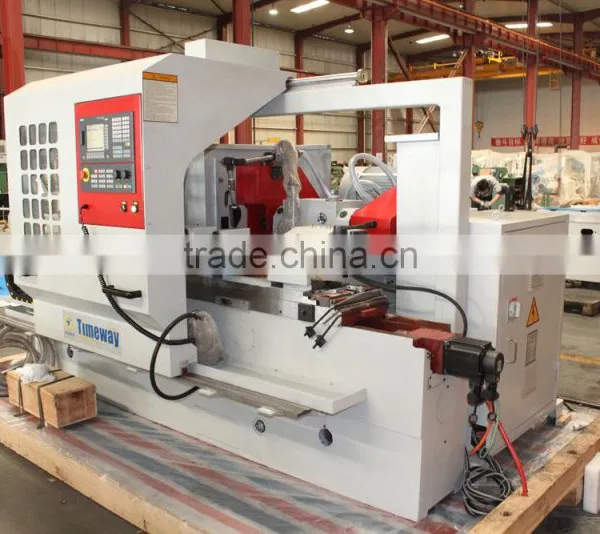

Help CenterCNC Retifica Cilindrica Universal GK-320
Related Products
-
BUG-500 Large-size Cylindrical Grinding MachineUS$ 20,000 - 50,000MOQ: 1 Set -
BUG-320 Internal and External Cylindrical Grinding MachineUS$ 10,000 - 40,000MOQ: 1 Set
-
BUG-320C Heavy Duty Universal Cylindrical GrinderUS$ 10,000 - 35,000MOQ: 1 Set
-
BUG-200 Universal Cylindrical Grinding MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
BUG-320G High Precision Semi-automatic Universal Cylindrical Grinder MachineUS$ 10,000 - 35,000MOQ: 1 Set

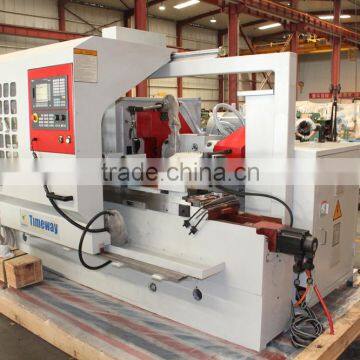

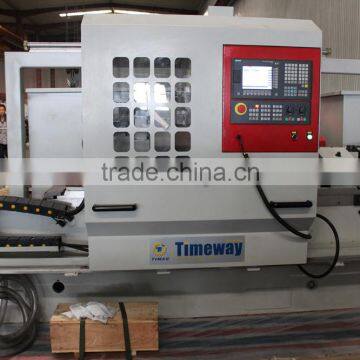

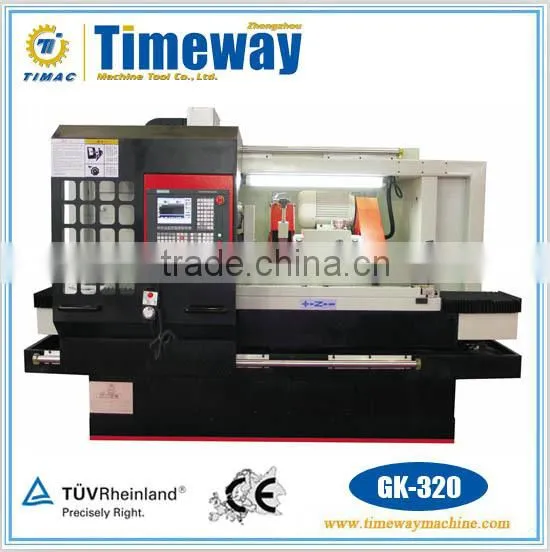

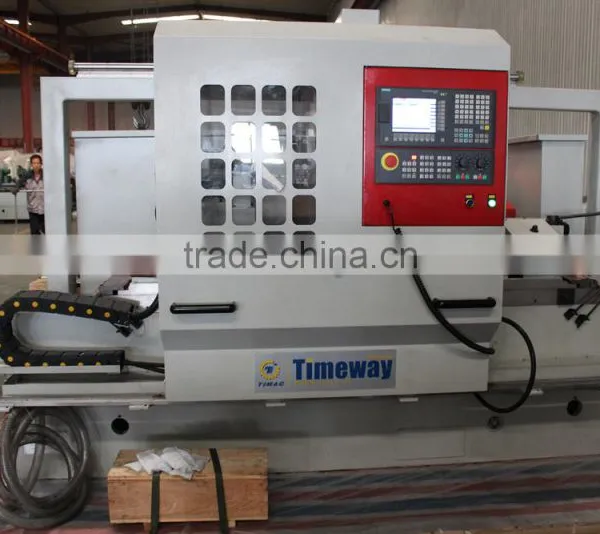

CNC Cylindrical Grinder
Parameter:
| Specification | Unit | GK-200 | GK-320 | ||
| * General capacity | |||||
| Distance between centers | mm | 500,750 | 1000 1500 | ||
| Center height | mm | 135 | 180 | ||
| Dia.ground(O.D) | mm | 5-200 | 8-320 | ||
| Max.length to be ground(O.D) | mm | 500,750 | 1000 1500 | ||
| * Workhead | |||||
| Center taper(MT) | MT | 4 | 5 | ||
| Spindle speed/stepless | r/min | 50HZ:25-380 | 50HZ:25-220 | ||
| * Wheel head | |||||
| Wheel size(O.D×W×I.D) | mm | 500×50×203 | 600×75×305 | ||
| Wheel peripheral velocity | m/s | 35 | |||
| Min. set unit | mm | 0.002 | |||
| * Internal grinding device | |||||
| Spindle speed | r/min | ---------- | |||
| * Table | |||||
| Max. swiveling angle of table | Clockwise | º | 3º | ||
| Anticlockwise | º | 9º(500), 8º(750) | 7º(1000), 6º(1500) | ||
| * Tailstock | |||||
| Center taper(MT) | MT | 4 | |||
| Quill travel | mm | 30 | |||
| * Electric system | |||||

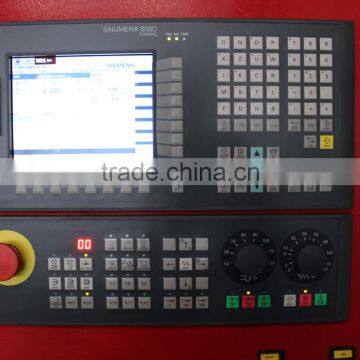

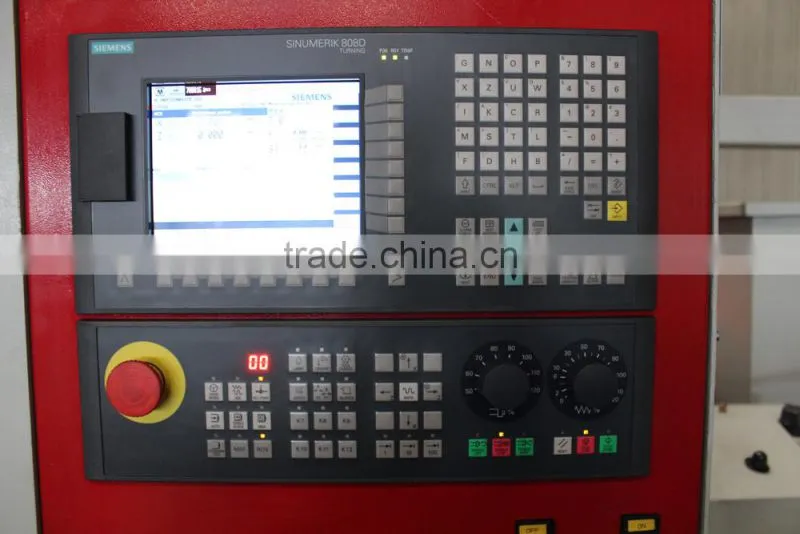

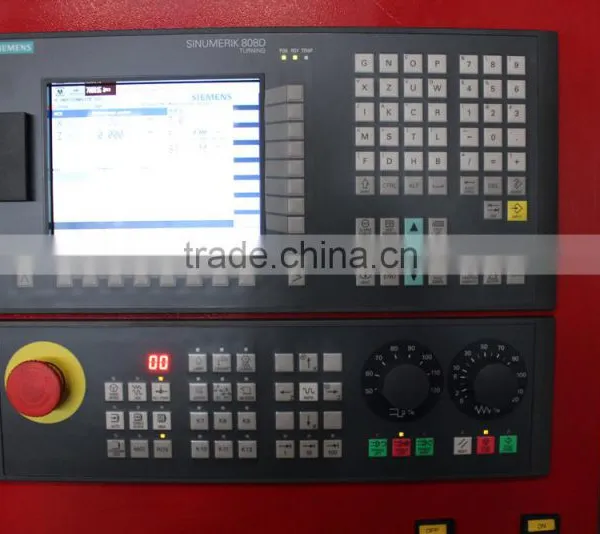

| CNC system | Siemens SINUMERIK 808D | ||||
| Wheelhead motor power | kw | 5.5 | 11 | ||
| Internal grinding motor power | kw | ---------- | |||
| Workhead motor power | kw | 1.1 | 1.5 | ||
| *Machine accuracy | |||||
| Roundness | μm | 3 | |||
| Cylindricity | μm | 5(500), 8(750) | 8 | ||
| Roughness | μm | Ra0.32 | |||
| * Machine | |||||
| Gross weight | T | 4(500), 4.2(750) | 5.3(1000), 6.1(1500) | ||
| Packing size (L×W×H) | 260×206×205(500) | 338×200×205(1000) | |||
| 300×206×205(750) | 438×200×205(1500) | ||||
*** Standard Accessories:
Semi isolated table shield, Coolant tank, Wheel dresser, 2 points steady rest (Standard dimension), wheel flange
Wheel, Wheel extractor, Wheel balancing arbor, Center points, 3-jaw chuck, Siemens electrical equipment &
delta transducer, Operation Manual (English edition).
*** Optional Accessories:
Full-closed safety cover, Coolant tank with magnetic separator, Coolant tank with paper filter, Machine safety
relay protection.
Package: Wooden plallet & plastic cover (fumigated)
Packing size:
One piece in one case: 3380*2000*2050MM G.W.: 5300KG
Container loaded: 1set / 20'GP
