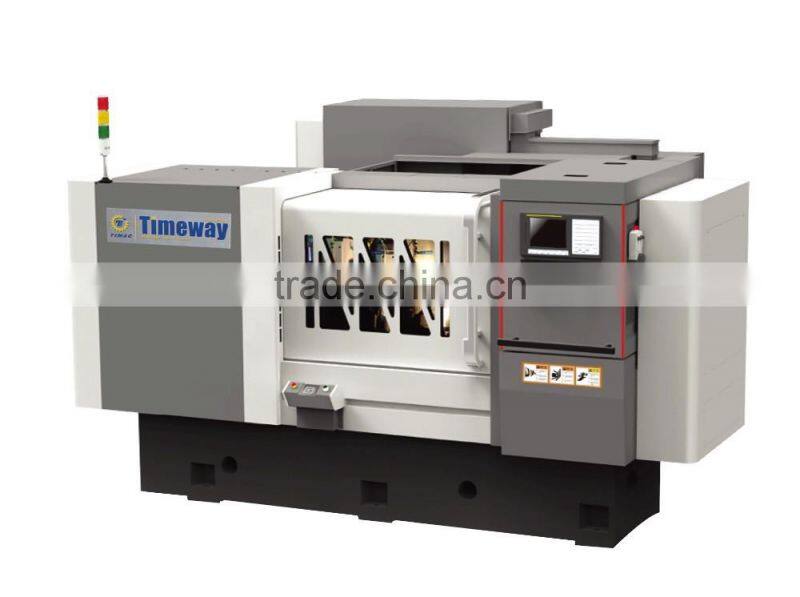

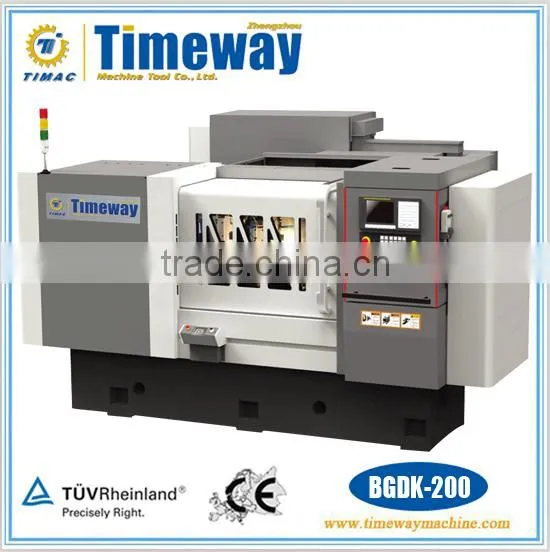

BGDK-200 CNC End Face Cylindrical Grinding Machine

CNC End Face Cylindrical Grinding Machine

BGDK-200     BGK-200

Machine Summary

• As medium-size CNC cylindrical grinding machines with international advanced level, BGK-200 and BGDK-200 CNC(endface) cylindrical grinding machines are independently developed and manufactures through the conpany's import, digestion and absorption of advanced technologies. They are with the characteristics of high rigidity, high efficiency and high adaptability. Being the productive CNC cylindrical grinding machines with features easy-to-operate, reliable performance and high processing precision, these machine tools are suitable for the usage in mass productions for industries including automobile, motorbikes, air compressors, bearings and also small-scale high precision productions in workshops of military industries, aviation industry, aerospace industry.

Features and Performance

• With structural layout of mechatronics and integral protective cover, the machine tool is covenient for maintenance and in conformity with human engineering requirements.
• With a sleeve type hydrostatic/hydrodynamic mainshafting adopted for the grinding wheel spindle, the machine tool features on the high rotary precision and good rigidity. The linear speed of the grinding wheel can reach 60m/s (for specially ordered) and that of CBN grinding wheel is 80m/s(for specially ordered).
• With two-axis linkage feeding, the machine tool is equipped with worktable(Z axis) and a wheel head(X axis) driven by AC servomotor and ball screws, the maximum feed speed of 10m/min; the feed of the wheel head is equipped with special vibration absorbing measures.
• The machine tool can be provided with various types of diamond dressers (installed on the rear side of the work head) according to the needs of customers, thus realizing precise CNC dressing, adapting to grinding of external cylindrical surfaces, taper surfaces, end faces, shaped cylindrical surfaces arc surfaces and grooves, ensuring the stability of the fitted precision not less than 80% in case of grinding batches of tapered surfaces and achieving automatic compensation.
• The machine tool is provided with an imported or a domestic active measuring device, thus realizing the closed-loop control of grinding process.
• The machine tool adopts an imported advanced CNC system and is provided with all-around controlling functions including grinding program changes, workpiece quality control, machine condition monitoring, fault self-diagnostics, abnormal alarm, and convenient menu type interface input.

Technical Parameters

 Working Accuracy

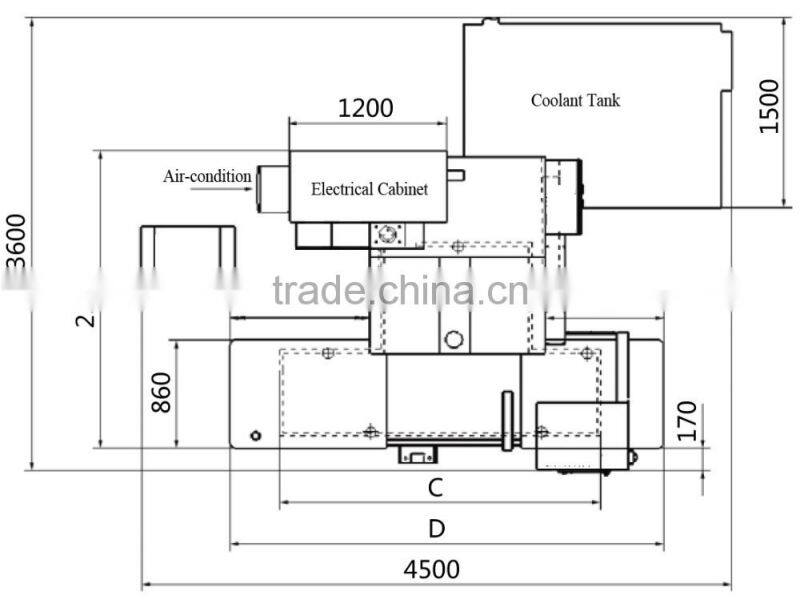

Layout Plan(Unit:mm)
