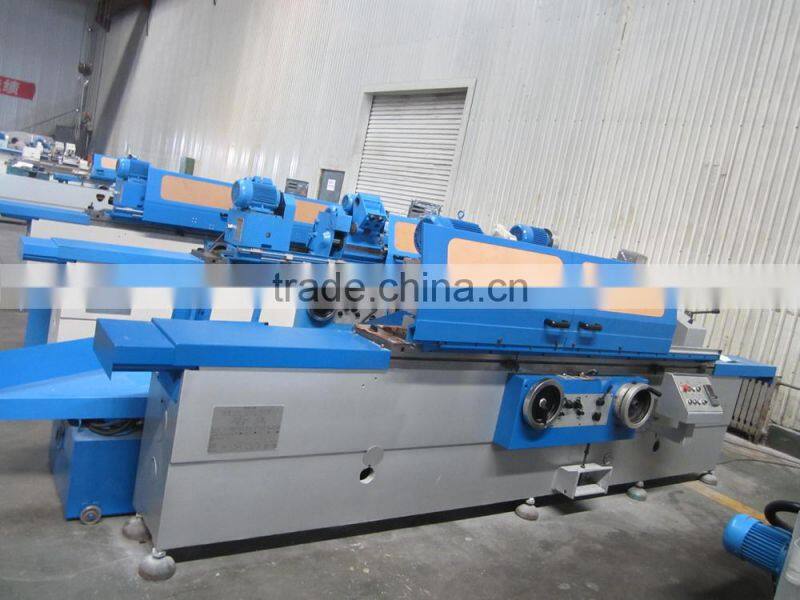

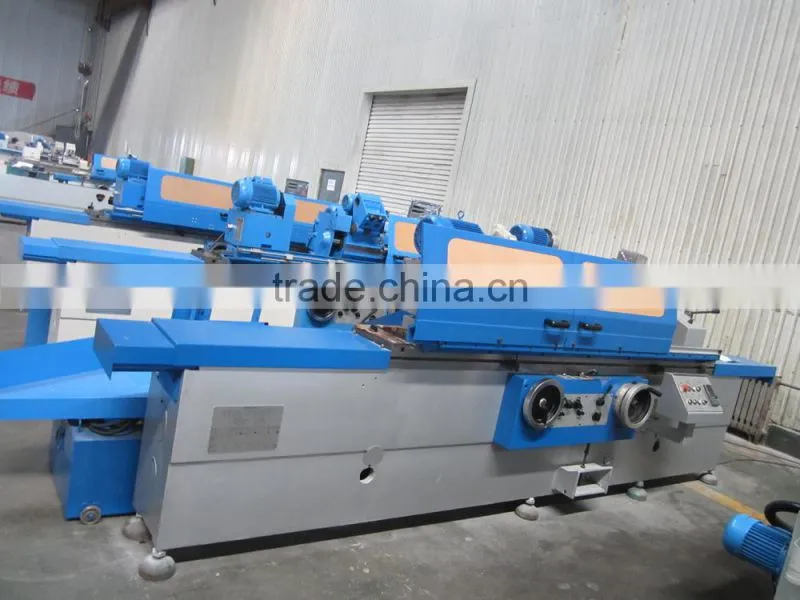

Precision Cylindrical Grinding Machine / Rectificado Cilindrico

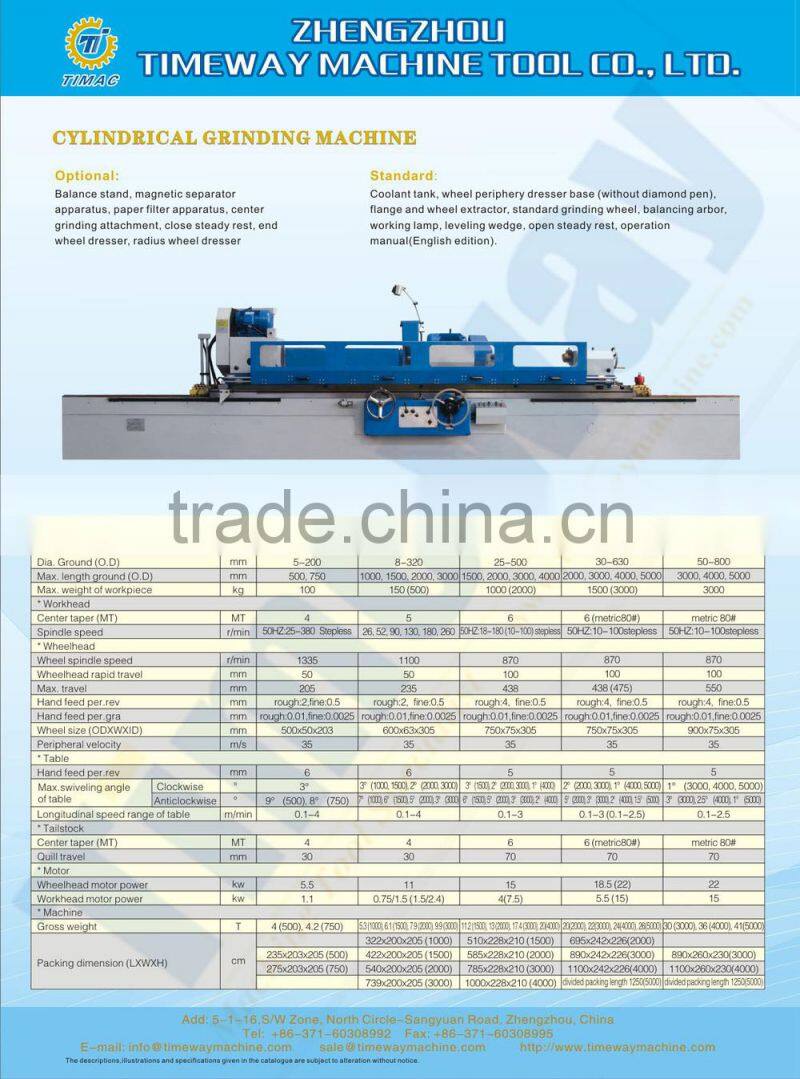

Specifications

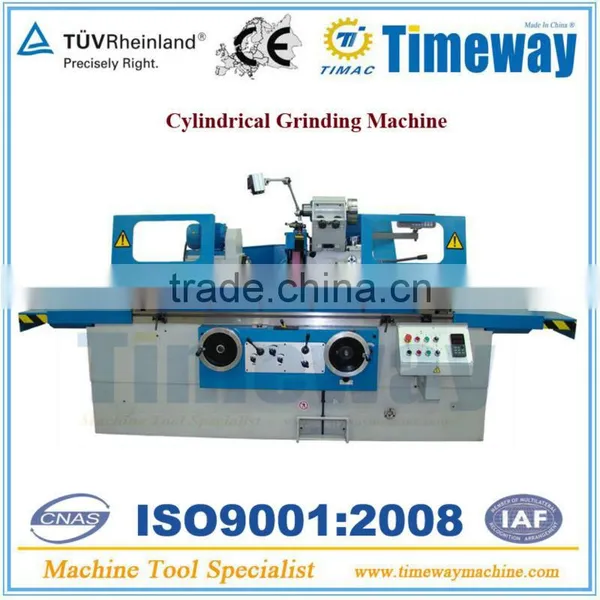

Cylindrical Grinding Machine

Model: G-200, G-320, G-500, G-630, G-800

* Grinding diameter x Grinding length:
   - 200 x 500mm, 200 x 750mm;
   - 320 x 1000mm, 320 x 1500mm, 320 x 2000mm, 320 x 3000mm;
   - 500 x 1500mm, 500 x 2000mm, 500 x 3000mm, 500 x 4000mm;
   - 630 x 2000mm, 630 x 3000mm, 630 x 4000mm, 630 x 5000mm;
   - 800 x 3000mm, 800 x 4000mm, 800 x 5000mm;

Features:

* The table longitudinal traversal is actuated by hydraulic means at step lessly variable speed or operated by means of hand wheel.

* The wheel head rapid approach and withdrawal and intermittent feed are effected hydraulically,the wheel feed can also be operated by hand.

* The wheel head cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed. It can also do rough and feed feed through hand wheel.

* The work table and wheel head guide way of the G-500, G-630 series adopt hydrostatic lubrication,its movement on low speed is smooth.

* The spindle of G-500, G-630 series is supported by hydrostatic and hydrodynamic bearings of high rigidity, it makes the spindle have high rotary accuracy and perfect rigidity.
