Home > Manufacturing & Processing Machinery > Machine Tools > Grinding Machine > Universal Cylindrical Grinding Machine UG-200H

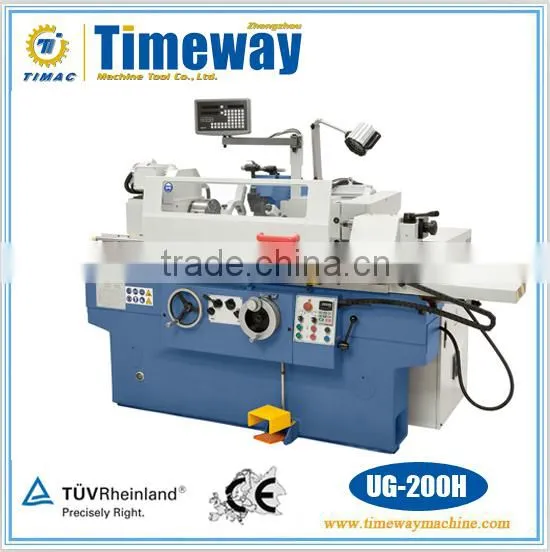

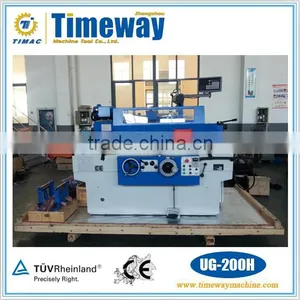

Universal Cylindrical Grinding Machine UG-200H
US$ 9,000 - 12,580
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Cylindrical Grinding Machine
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Precision Die Surface Grinder GS630AUS$ 10,985 - 15,565MOQ: 1 Set -
Small Crankshaft Grinding Machine / Crankshaft Grinder ( QM-600A)NegotiableMOQ: 1 Set
-
Rectificadora / Saddle Moving Surface Grinding Machine / Surface GrinderNegotiableMOQ: 1 Set
-
Vertical Spindle Surface Grinding Machine With Round WorktableUS$ 1,000 - 30,000MOQ: 1 Set
-
810x2200mm Special Designed Large Sized NC Surface Grinding MachineNegotiableMOQ: 1 Set
Condition
New
Type
Cylindrical Grinding Machine
CNC or Not
Normal
Max. Grinding Diameter
200mm
Max. Grinding Length
500/800mm
Brand Name
TIMAC
Model Number
UG-200H
Voltage
As per customer's request
Power(W)
5.5kw
Dimension(L*W*H)
2500*1600*1500mm
Weight
2500KG
Certification
ISO9001, CE
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Universal Cylindrical Grinder
Parameter:
| Model | unit | UG-200H/500 | UG-200H/800 |
| External grinding diameters | mm | φ8~200 | φ8~200 |
| Internal grinding diameters | mm | φ13~100 | φ13~100 |
| Center height | mm | 135 | 135 |
| Headstock spindle rotation speed | r/min | 50HZ:25~380stepless | 50HZ:25~380stepless |
| Max. worktable traverse | mm | 650 | 950 |
| Hydraulic travel speed | m/min | 0.1~4 | 0.1~4 |
| piece weight | kg | 50 | 50 |
| Grinding length External/Internal | mm | 500/125 | 800/125 |
| Swivel range of worktable | ° | -5~+9° | -3~+7° |
| Max.wheel peripheral speed | m/s | 38 | 38 |
| External wheel size | mm | Max.φ400x50xφ203 Minφ280x50xφ203 | |
| Internal wheel spindle rotating-speed | r/min | 20000 | 20000 |
| Headstock and tailstock center | morse | NO.4 | NO.4 |
| Total motor power | kw | 5.625 | 5.625 |
| Machine overall dimension(LxWxH) | mm | 2500x1600x1500 | 3000x1600x1500 |
| Machine weight | kg | 2500 | 3000 |
| Working Accuracy | |||
| Roundness(O.D/I.D) | 1.5/2.5μm(O.D/I.D) | ||
| Uniformity of dia.in longitudinal section(O.D/I.D) | 5/8μm(O.D/I.D) | ||
| Surface roughness(O.D/I.D) | Ra0.32/0.63μm(O.D/I.D) | ||

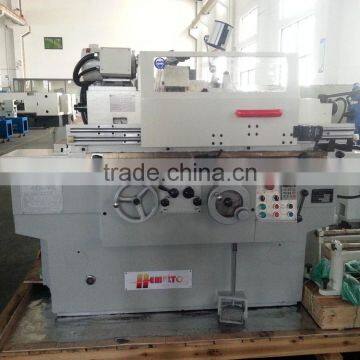

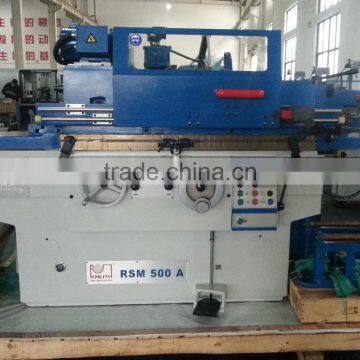

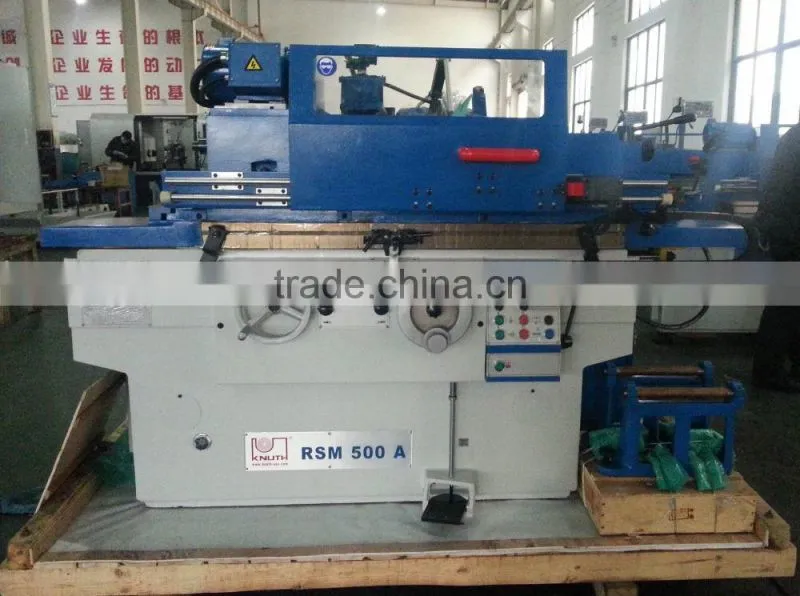

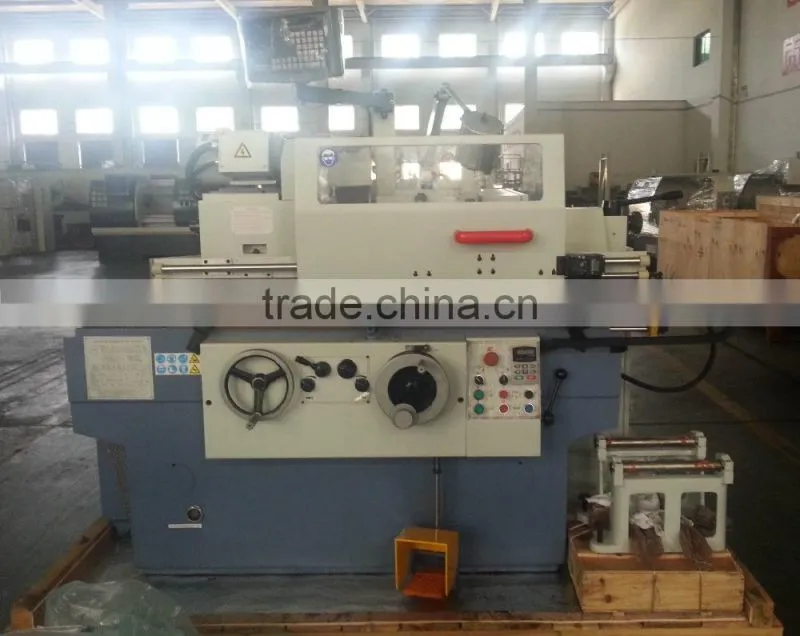

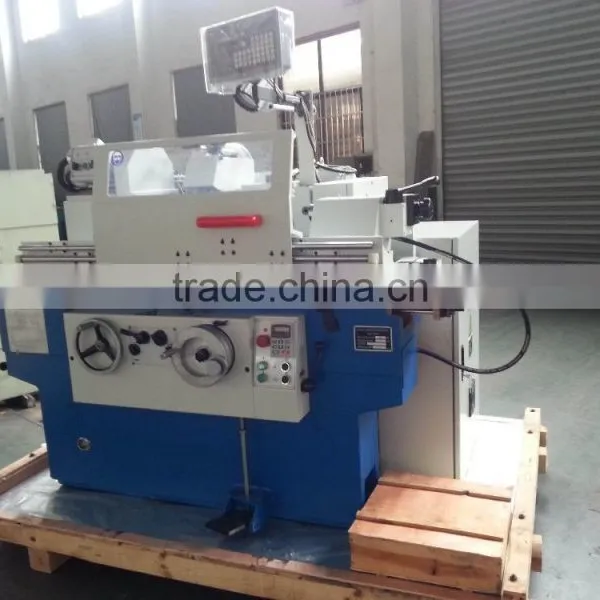

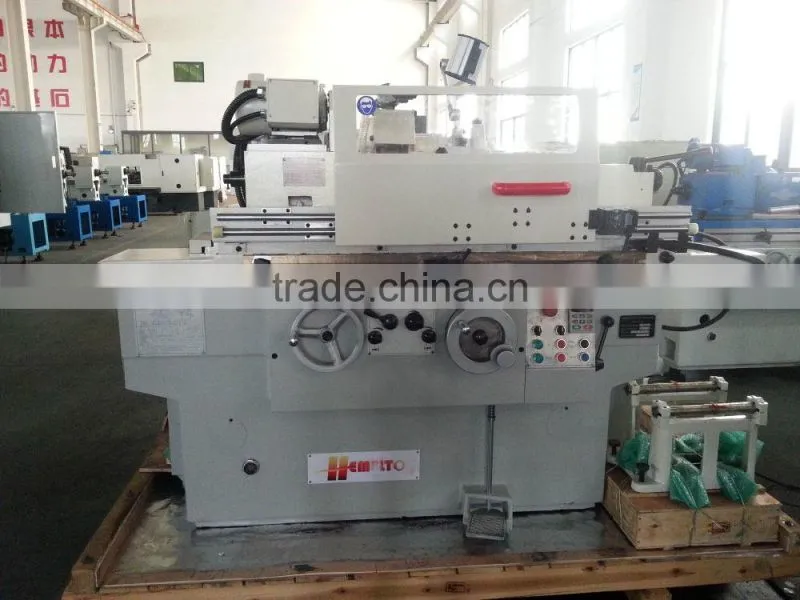

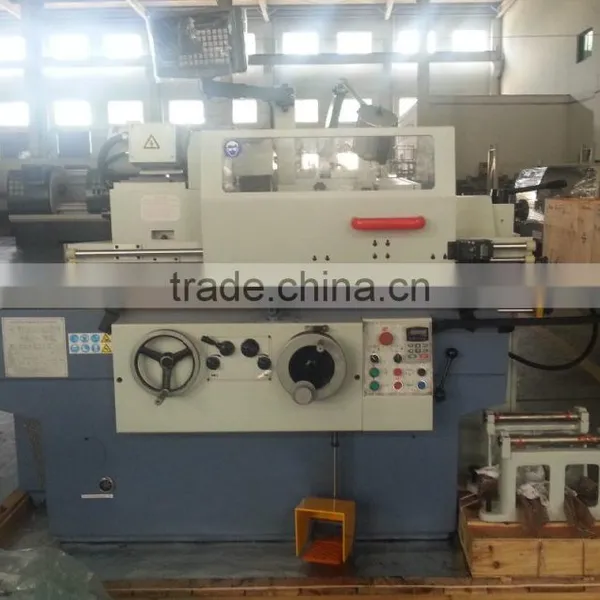

Detailed Images

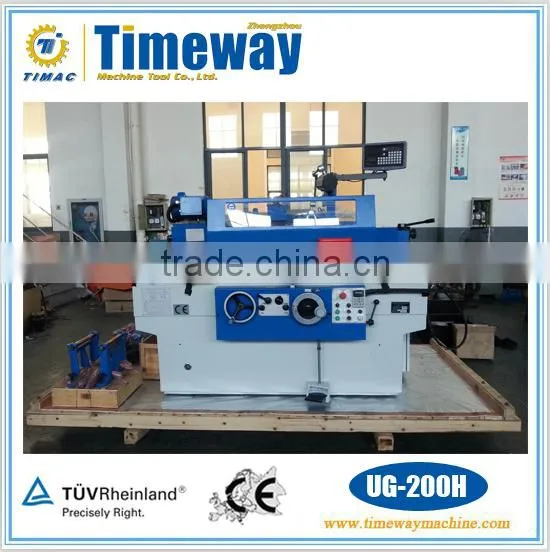

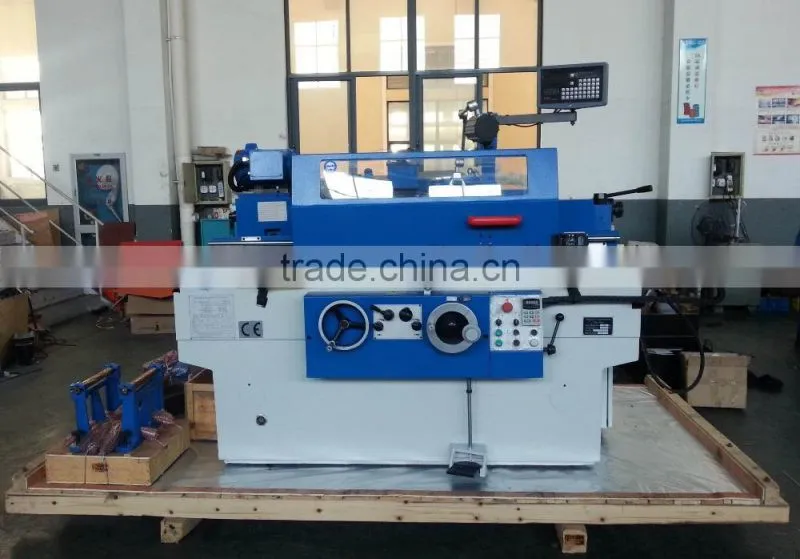

Packaging & Shipping
Package: Wooden plallet & plastic cover (fumigated)
Packing size:
One piece in one case: 2500*1600*1500MM G.W.: 2500KG
Container loaded: 2setS / 20'GP
