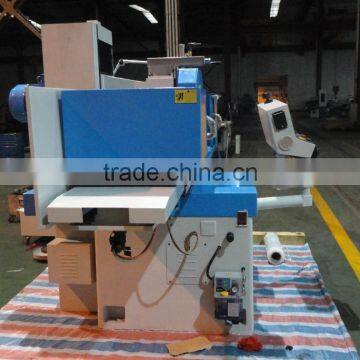

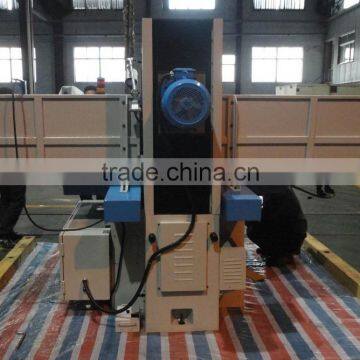

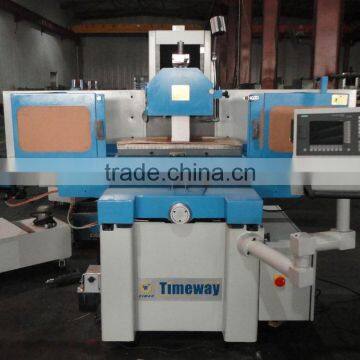

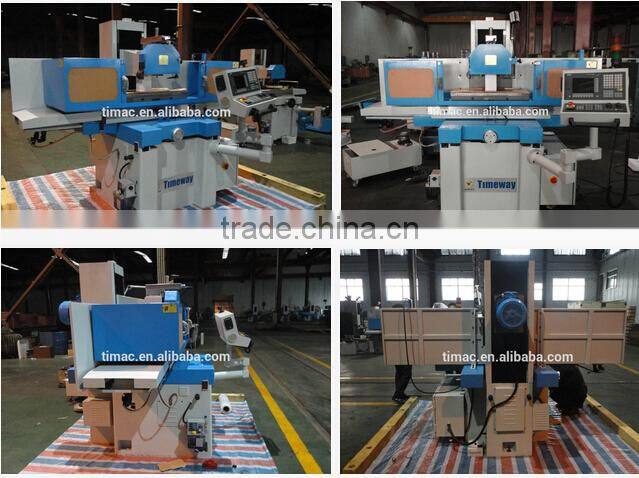

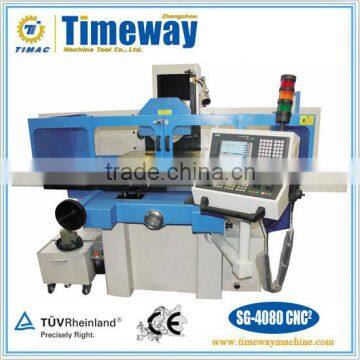

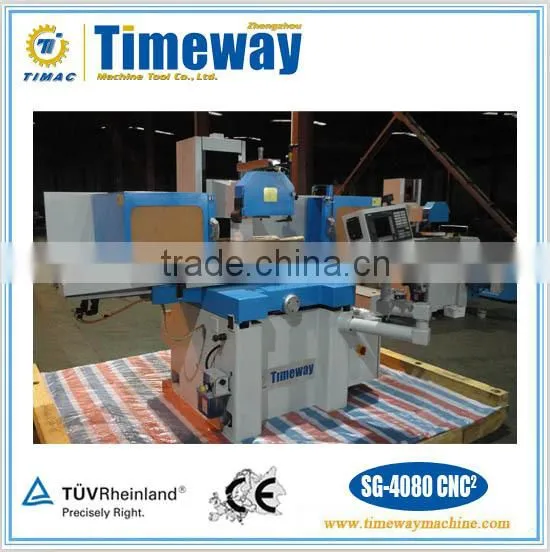

CNC Surface Grinding Machine / SG-4080CNC2
Parameter:
| Model | Unit | SG-3063CNC2 | SG-30100CNC2 | SG-4080CNC2 | SG-40100CNC2 | |
| SG-3063CNC3 | SG-30100CNC3 | SG-4080CNC3 | SG-40100CNC3 | |||
| Table size(W×L) | mm | 305×635 | 305×1020 | 406×813 | 406×1020 | |
| Max.longitudinal travel | mm | 765 | 1130 | 910 | 1130 | |
| Max. cross travel | mm | 340 | 450 | |||
| Max.distance from spindle center to table surface | mm | 580 | ||||
| Electro magnetic chuck size | mm | 300×600 | 300×1000 | 400×800 | 400×1000 | |
| Table longitudinal | Speed | m/min | 5-25(CNC2);0.02-15(CNC3) | |||
| movement | Feed of electro hand wheel | mm/div | 0.05(CNC3) | |||
| Table transverse movement | Auto feed | mm/stroke | 0.1-8 | |||
| Rapid speed | mm/min | 0.05-1 | ||||
| Feed of handwheel | mm/div | 0.005 | ||||
| Wheelhead vertical movement | Auto feed | mm/stroke | 0.005-0.05 | |||
| Rapid speed | mm/min | 0.05-1 | ||||
| Feed of handwheel | mm/div | 0.005 | ||||
| Grinding wheel | Speed | rpm | 1450(50HZ),1750(60HZ) | |||
| Size(O.D×W×I.D) | mm | 350×40×127 | ||||
| Spindle motor | kw | 5.5 | ||||
| Hydraulic motor | kw | 2.2(CNC2) | ||||
| Cooling pump motor | kw | 0.125 | ||||
| Parallelism of working surfacing to mounting base | mm | 300:0.005 | ||||
| Roughness of working surface | μm | Ra≤0.63 | ||||
| Max. loading capacity of table (including magnetic chuck) | kg | 270 | 400 | 500 | 600 | |
| Height of machine | mm | 1890 | ||||
| Floor space(L×W) | mm | 3800×2200 | 4400×2200 | 3600×2400 | 4400×2400 | |
| Gross weight | kg | 1600 | 1800 | 3800 | 4300 | |
*** Standard Accessories:
Coolant tank, Electronic magnetic chuck, Balancing arbor, Wheel flange, Wheel extractor, Leveling wedge and bolt Tools box and tools, Standard grinding wheel, Wheel dresser stand, Diamond pen, Build in electro magnetic chuck controller, Operation manual(English edition).
*** Optional Accessories:
Wheel balancing stand, Parallel dresser, Cooling system with magnetic separator, Cooling system with magnetic
separator & paper filter.
Package: Wooden pallet & plastic cover
Packing size:
One piece in one case: 2850*2270*21800MM N.W./G.W.: 3200/3400KG
Container loaded: 2 sets / 20'GP
