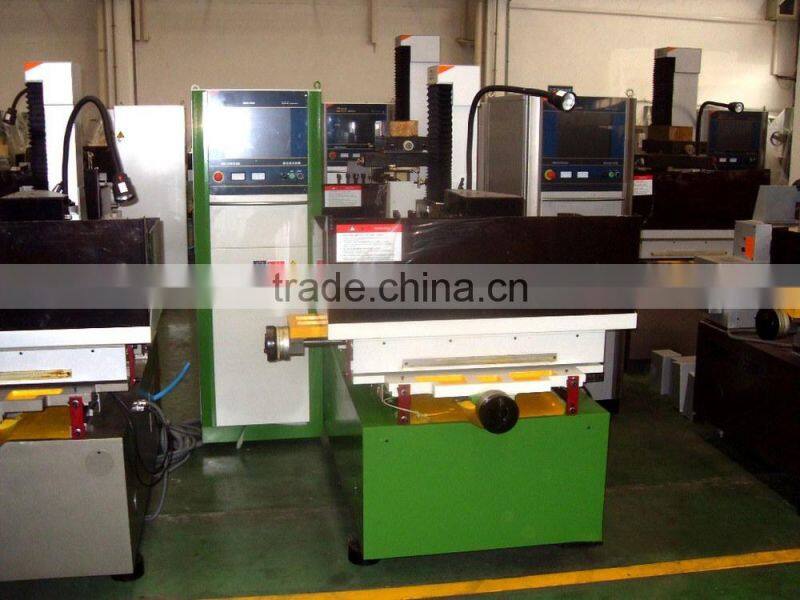

Wire Cutting EDM / EDM Wire Cutting Machine

Name: Wire Cutting EDM / EDM Wire Cutting Machine
Brand: TIMAC
SKU: 140797046
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

Normal

Brand Name:

TIMAC

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Brand Name TIMAC

Model Number DK series

Voltage as customer's request

Power(W) depends on different models

Dimension(L*W*H) 1490*1200*1530mm

Weight 1600kg

Certification CE & ISO9001

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Wire Cutting EDM, EDM Wire Cutting Machine Price

Product Description

Features:

*Taper cutting mechanism is driven by two step-motors to realize U and V movement,which can make

the 4 axis (X, Y, U, V) simultaneously movement.

*Work table with T-slots, we supply a standard clamp for free.

*Machine body adopt the base of meehanite cast iron (HT250).

*Adopt steel linear guideway and precision ball screw.

Parameter:

Specification	Unit	DK-250	DK-320	DK-400	DK-500	DK-630	DK-700
Travel of worktable	mm	250×320	320×400	400×500	500×630	630×800	700×1000
Size of worktable	mm	380×525	415×635	500×785	600×900	660×1100	760×1400
Cutting depth(optional)	mm	300/500	300/500	300/500	500	500/800	500/800
Taper (optional)	º	0° / 3° /6° /30° /60°
Roughness	μm	Ra (once cutting) ≤ 2.5, Ra (Multi-cutting) ≤ 1.5
Precision	mm	≤ 0.015
Max.cutting speed	mm²/min	150
Diameter of moly wire	mm	0.15~0.2
Max. working current	A	6
Output voltage	V	AC~,3N, 220-415V,50/60HZ
Type of coolant		BM2/BM4 Water Base Working solution
Working liquid capacity	L	56
Programme standard		Windows XP
Screw & guideway (optional)		Precision ball screw , precision steel plated / linear guideway				High quality ball screw, Steel linear guideway
Load of table	KG	300	400	500	800	3000	5000
Weight of machine	KG	1600	1700	2000	2300	4500	6000
Dimension (L×W×H)	cm	149×120×153	149×120×153	171×146×173	191×155×183	213×183×185	250×245×197
Packing size(L×W×H)	cm	180×140×200	180×140×200	193×160×190	212×180×225	245×210×200	270×265×225
