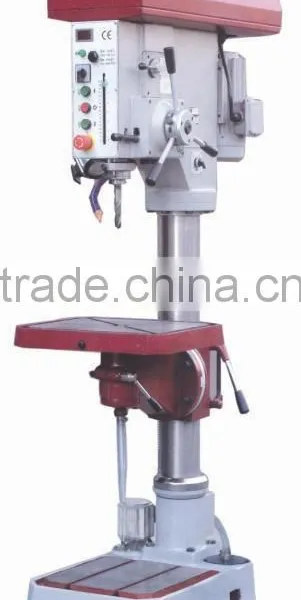

Stepless Speed Vertical Drilling Machine
US$ 500 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Brand Name:
TIMAC
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
CNC or Not
Normal
Brand Name
TIMAC
Model Number
SB-25, SB-35
Specifications
Stepless speed vertical drilling machineStepless Speed Vertical Drilling Machine
| Model | Unit | SB-25 | SB-35 |
| Max. Drilling diameter(steel). | mm | φ25 | φ35 |
| Max. tapping diameter (mm) | mm | M12 | M20 |
| Max.Travel of spindle(mm) | mm | 110 | 160 |
| Max.Distance from spindle to generating line of column | mm | 230 | 320 |
| Max.Distance from spindle nose to surface of worktable. | mm | 690 | 625 |
| Max.Distance from spindle nose to surface of? base worktable | mm | 1180 | 1180 |
| Max Travel of worktable and bracket | mm | 555 | 585 |
| Spindle taper bore | MT3 | MT4 | |
| Spindle speed steps | Stepless | Stepless | |
| Spindle speed range(r/min) | r.p.m | 80~1600 | 85~1800 |
| Spindle feed steps | 3 | ||
| Spindle feed range | 0.1,0.2,0.3 | ||
| Dimension of worktable(mm) | mm | 400x320 | 500x420 |
| Effective working area of worktable(mm) | mm | 340x320 | 370x360 |
| Diameter of column(mm) | mm | φ100 | φ120 |
| Power of motor(kw) | kw | 0.70/1.3 | 1.0/1.7 |
| Overall size:(LxBxH) | mm | 820x530x1715 | 965x515x1920 |
| Packing size:(LxBxH) | mm | 840x480x1800 | 1100x600x2010 |
| N.W./G.W. | kg | 245/280 | 450/500 |
