Radial drilling machineRadial drilling machine

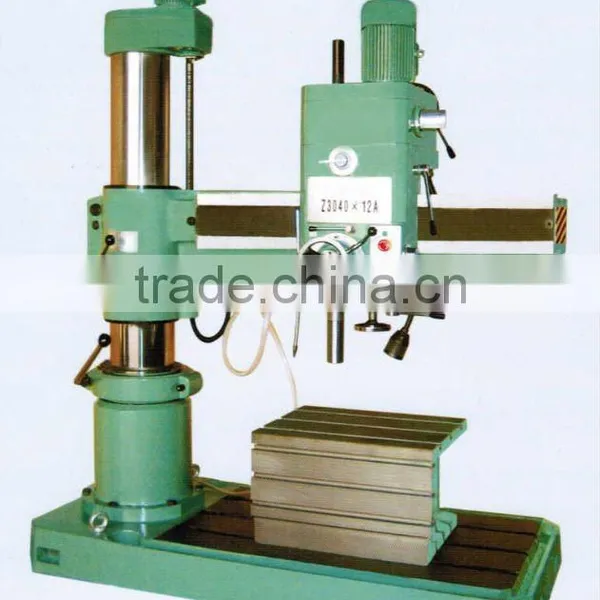

The radial drilling machine, Z3040X12A, is a versatile machine with a wide range of applications, it has reasonable speed of revolution, it can be used on work pieces for drilling, expending, reaming, spot-facing, tapping and other operations.Equipped with suitable accessories, it can also be used for boring operation. It may be used in machine shops for serial production or single-piece production.
1. The spindle speeds and feed change are affected by their separate mechanical levers, and therefore easily and accurately controlled.
2. The drilling depth is controlled by the stroke-set cutting mechanism. The feed can thus be automatically and accurately stopped, and the stroke setting is accurate.
3. Mechanical clamping devices are the spindle box and the radial arm. The clamping is reliable and the maintenance is convenient.
4. The movement of spindle box and the rotation of radial arm are easy and agile.
5. The elevation of arm are secondary-driven by gears and feed screw nut. Only after the lever is in the disengaged position, could the arm be raised or lowered. The operation is accurate and convenient.
6. Antifriction measures are adopted on the guide rails of radial arm, spindle sleeve and the roller guide surface of inner and outer rotation in order to prolong their service lives.
| Model | Z3040X12A | |
| Max. diameter to be drilled | 40 mm | |
| Distance from the spindle axis to the column | Max. | 1200 mm |
| Min. | 265 mm | |
| Horizontal traverse of the spindle box | 935 mm | |
| Distance from spindle nose to working surface | Max. | 1200 mm |
| Min. | 290 mm | |
| Taper of spindle bore | Morse No.4 | |
| Max. travel of spindle | 250 mm | |
| Series of spindle speeds | 8 steps | |
| Range of spindle speeds | 40-70-115-190-320-540-915-1500 r.p.m | |
| Series of spindle feeds | 4 steps | |
| Range of spindle feeds | 0.10, 0.16, 0.25, 0.42 mm/r | |
| Power of the main motor | 3 kw | |
| Overall dimensions (LXWXH) | 1955x870x2540 mm | |
| Net weight (approx) | 2200 kg | |
