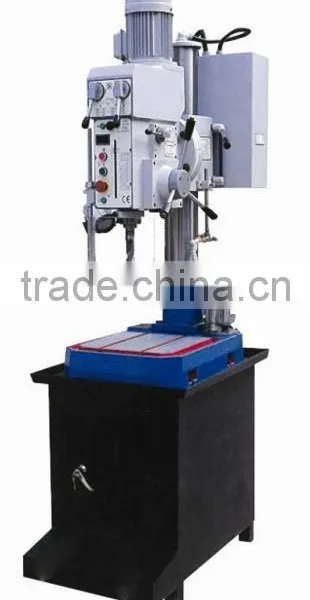

Bench Vertical Drilling Machine
US$ 2,000 - 5,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Brand Name:
TIMAC
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Column Vertical Drilling MachineUS$ 2,000 - 5,800MOQ: 1 Set -
Column Vertical Drilling MachineUS$ 500 - 3,000MOQ: 1 Set
-
Stepless Speed Vertical Drilling MachineUS$ 500 - 3,000MOQ: 1 Set
-
Variable Speed Vertical Drilling MachineUS$ 500 - 3,000MOQ: 1 Set
-
Vertical Drilling MachineUS$ 500 - 3,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Brand Name
TIMAC
Model Number
D-25, DB-30, DB-30B, DB-35, DB-35B
Specifications
Bench Vertical Drilling MachineBench Vertical Drilling Machine
| Model | D-25 | DB-30/DB-30B | DB-35/DB-35B |
| Max. Drilling dia.(steel) and taping dia.(mm) | Φ25/M16 | Φ30/M20 | Φ35/M22 |
| Max. travel of spindle (mm) | 110 | 135 | 160 |
| Max. distance from spindle to generating line of column (mm) | 240 | 260 | 320 |
| Max. distance from spindle nose to surface of base worktable (mm) | 650 | 700 | 645 |
| Max. travel of spindle box (mm) | 500 | 520 | 515 |
| Spindle taper bore (MT) | 3 | 3 | 4 |
| Spindle speed steps | 6 | 12 | 12 |
| Spindle speed range (r/min) | 125-2825 | 125-3030 | 125-3030 |
| Spindle feed steps | --- | 3 | 3 |
| Spindle feed range (mm/r) | --- | 0.1-0.3 | 0.1-0.3 |
| Effective workig area of worktable | 310x320 | 335x340 | 400x360 |
| Diameter of column (mm) | Φ95 | Φ110 | Φ120 |
| Power of motor (kw) | 0.75 | 0.85/1.1 | 1/1.2 |
| Machine dimension (mm) | 700x500x1500 | 740x420x1610 | 810x460x1640 |
| Packing dimension (mm) | 820x620x2250 | 820x620x2270 | 820x620x2290 |
| Net weight/gross weight (kg) | 230/280 | 315/365 | 340/385 |
