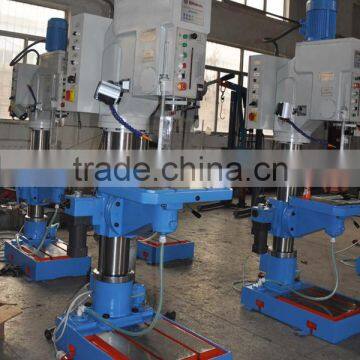

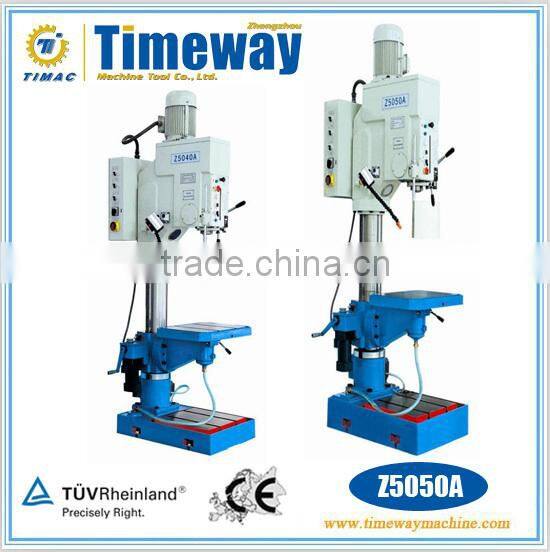

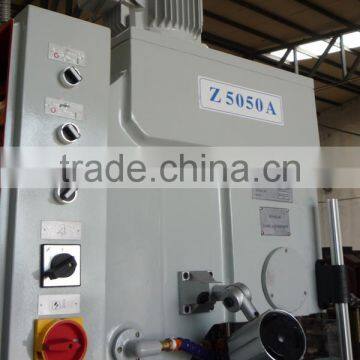

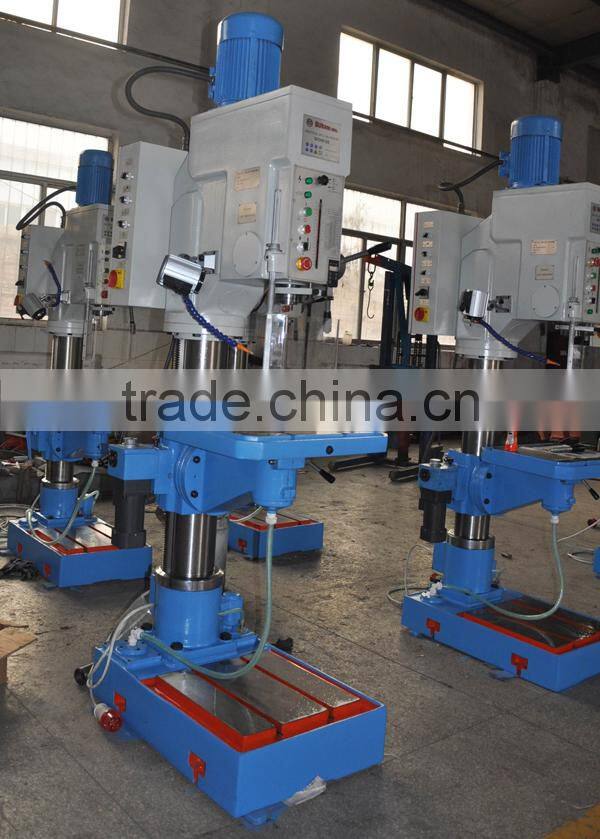

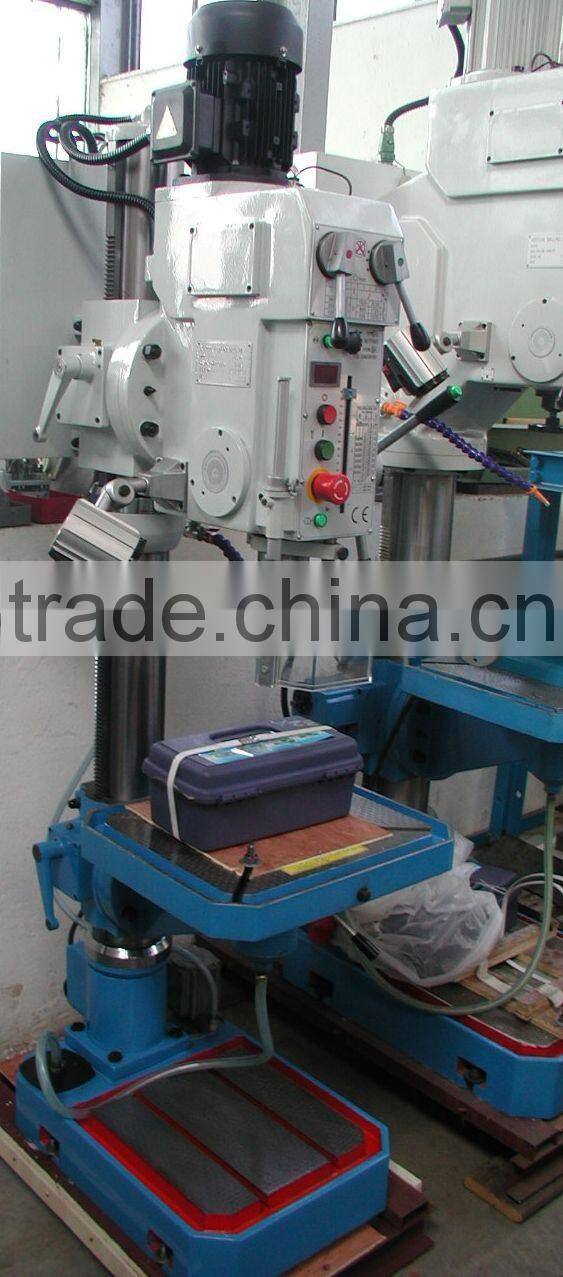

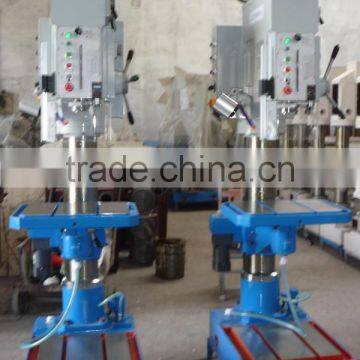

Agujereadora De Columna Z5050A

Name: Agujereadora De Columna Z5050A
Brand: TIMAC
SKU: 140796848
Availability: InStock

US$ 3,950 - 3,950 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Drilling Speed:

42-1865 r.p.m

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Drilling Speed 42-1865 r.p.m

Brand Name TIMAC

Model Number Z5050A

Voltage As per customer request

Power(W) 2.2kw

Dimension(L*W*H) 700x1150x2150MM

Weight 800/860

Certification CE norms, ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Product Description

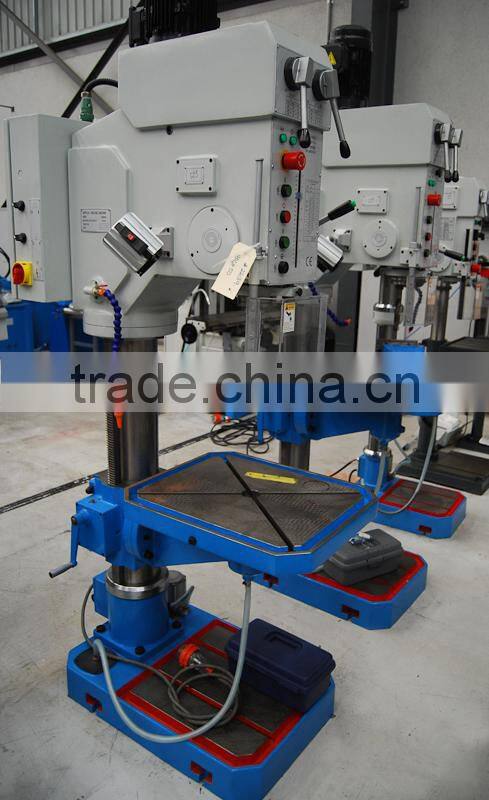

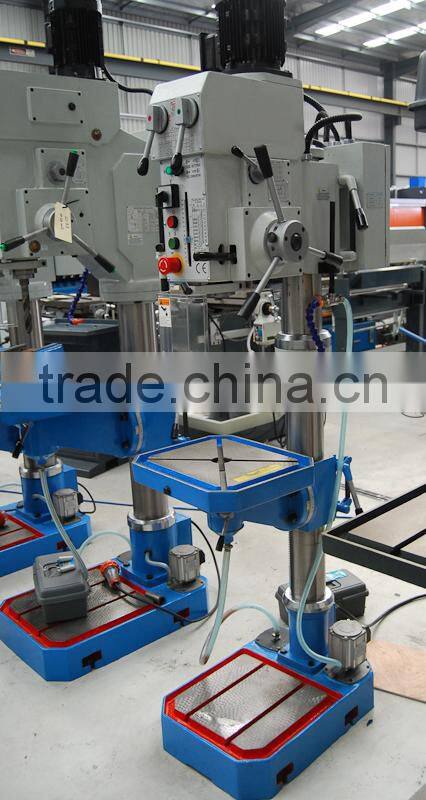

Geared Head Pedestal Drills D-50A

Parameter

Specification	Unit	Z5030A	Z5032V	Z5035A	Z5040A	Z5050A
Max. drilling capacity	mm	30	32	35	40	50
Max. tapping capacity	mm	M18	-	M20	M24	M24
Distance from spindle - column	mm	315	290	330	360	360
Distance from spindle - worktable	mm	520	790	610	600	600
Distance from spindle nose to base surface	mm	1080	1300	1150	1215	1205
Max. travel of spindle	mm	135	115	150	180	180
Max. adjustment of worktable and table rest	mm	480	790	540	560	525
Swivel of table and table rest	°	±45°	±45°	±45°	±45°	±45°
Spindle bore taper		Morse 3	Morse 3	Morse 4	Morse 4	Morse 4
Spindle speed steps		12steps	2steps, variable in each step	12steps	12steps	12steps
Spindle speed range	rpm	70-2600	Low: 55-350, High 350-2300	12steps, 70-2600	42-2050	42-1865
Spindle feed steps		3	-	3	4	4
Spindle feed range	mm/r	0.1, 0.2, 0.3	-	0.1, 0.2, 0.3	0.07,0.15,0.26,0.4	0.07,0.15,0.26,0.4
Column diameter	mm	125	120	140	160	170
Effective working area of table(LxW)	mm	450x450	420x420	500x550	580x450	580x450
Effective working ares of base(LxW)	mm	690x480	600x450	760x500	820x550	820x550
Dimension of T-slot of table and base	mm	2-14, 2-16	2-12	2-14, 2-16	2-14, 2-16	2-14, 2-16
3-Phase two speed AC motor	kw	1.1/1.5	1.1	1.5/2.2	2.2/2.8	2.2/2.8
3-Phase two speed AC motor speed	rpm	960/1450	1440	960/1450	960/1450	960/1450
3-Phase pump motor	kw	0.09	0.06	0.09	0.09	0.09
Packing size	mm	650x1050x1950	900x590x1980	700x1150x2150	700x1150x2150	700x1150x2150
Net/Gross weight	kg	440/500	310/360	670/730	740/800	800/860
