Drilling Milling Machine MD-30B

Name: Drilling Milling Machine MD-30B
Brand: TIMAC
SKU: 140796850
Availability: InStock

US$ 2,500 - 3,950 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Drilling Speed:

100-2150 r.p.m

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Drilling Speed 100-2150 r.p.m

Brand Name TIMAC

Model Number MD-30B

Voltage As per customer request

Power(W) 1.5kw

Dimension(L*W*H) 860x780x1910 mm

Weight 360KG

Certification CE norms, ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Product Description

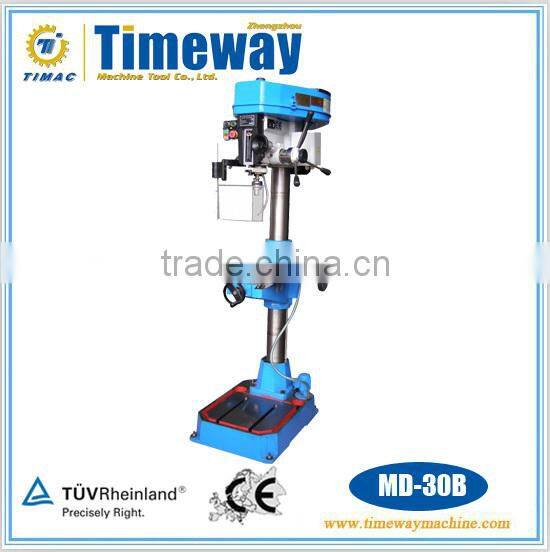

Drilling Milling Machine MD-30B

Model	MD-30B	MD-40B
Max.drilling capacity	31.5 mm	40 mm
Max.facing mill capacity	80 mm	80 mm
Diameter of vertical milling	22 mm	22 mm
Diameter of column	115 mm	115 mm
Spindle travel	130 mm	120 mm
Distance spindle - column	202 mm	272.5 mm
Distance spindle - table	745 mm	745 mm
Distance spindle - base	1245 mm	1245 mm
Spindle taper	MT3	MT4
Spindle speeds range	100-2150 rpm	95-1600 rpm
Spindle speeds series	12 steps	6 steps
Worktable size	585×190 mm	585×190 mm
Worktable travel	370×140×515 mm	370×140×515 mm
Main motor	1500 W	1100 W
G.W/N.W	360/320 kg	375/335 kg
Packing size (L×W×H)	860×780×1910 mm	720×740×1910 mm

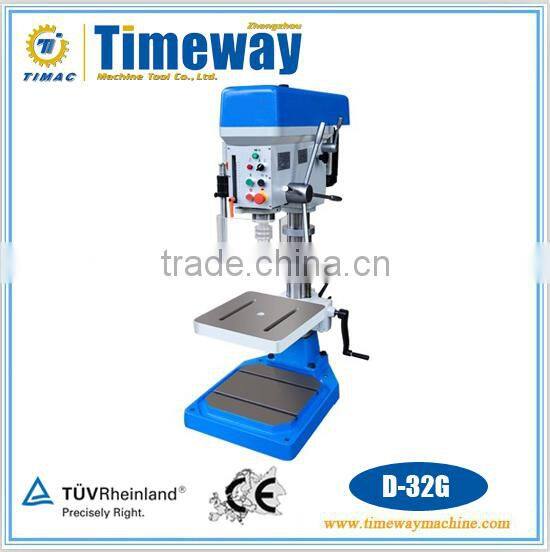

Model	D-16G	D-20G	D-32G
Max. drilling capacity	16 mm	20 mm	31.75 mm
Max. tapping capacity (Iron/steel)	M12/M10	M20/M16	M24/M20
Column diameter	50 mm	50 mm	100 mm
Spindle travel	100 mm	135 mm	150 mm
Distance from spindle to column	193 mm	260 mm	265 mm
Distance from spindle to worktable	330 mm	366 mm	390 mm
Distance from spindle to base	613 mm	678 mm	745 mm
Spindle taper	MT2	MT3	MT3
Sindle speed range	5 steps, 320~2730 rpm	5 steps, 290~2150 rpm	5 steps, 280~1875 rpm
Table size	265×285 mm	300×320 mm	380×400 mm
Base Size:	360×480 mm	376×566 mm	645×470 mm
Motor power	0.55 kw	1.1 kw	1.5 kw
weight	145kg	170kg	225kg
Packing size (L×W×H)	780×450×1260mm	970×490×1390mm	1000×600×1500mm

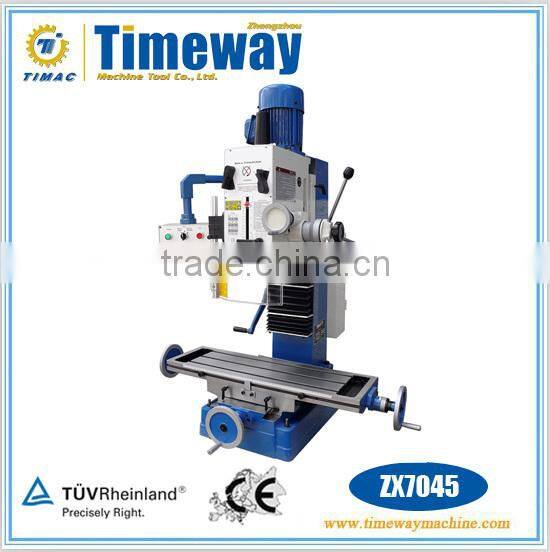

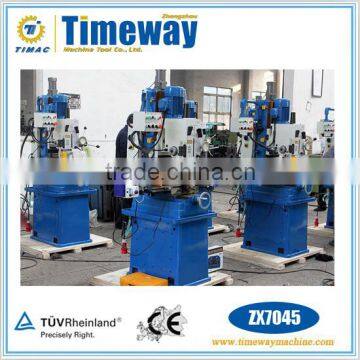

Model	ZX7045
Max.drilling capacity (Iron/steel)	40/31.5 mm
Max.mill capacity (face/end)	80/32 mm
Spindle taper	MT3/MT4/R8
Worktable size	800×240 mm
Worktable travelX/Y	570/230 mm
Head tilt left right	90°
Spindle travel	130 mm
Spindle nose to worktable	470 mm
Spindle center to column	285 mm
Spindle speeds range	12 steps:75-3200r/min
Motor power	0.85/1.1kw
N.W/G.W	300/350KG
Packing size (L×W×H)	1140×960×2240mm
Container loaded	12sets/20'GP

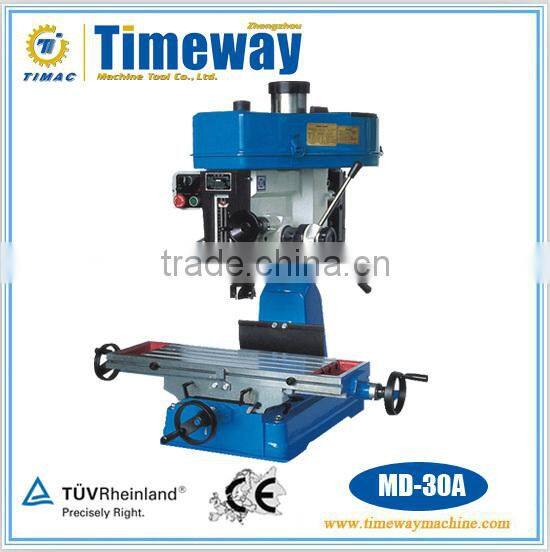

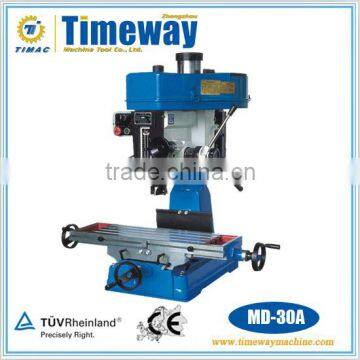

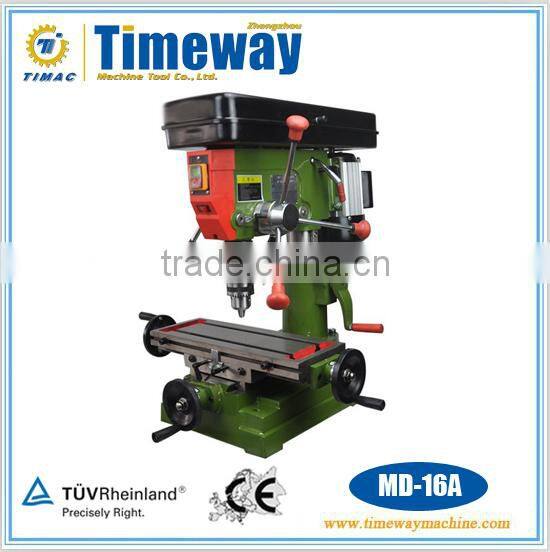

Model	MD-16A	MD-25A	MD-30A	MD-45A
Max.drilling capacity	16 mm	25 mm	31.5 mm	45 mm
Max.facing mill capacity	40 mm	63mm	80 mm	80 mm
Diameter of vertical milling	10 mm	13 mm	22 mm	28 mm
Spindle travel	80 mm	110 mm	130 mm	120 mm
Distance spindle - column	180 mm	240 mm	202 mm	260 mm
Distance spindle - table	360 mm	510 mm	460 mm	475 mm
Spindle taper	MT2	MT3	MT3	MT4
Spindle speeds range	320-3300 rpm	290-2150 rpm	100-2150 rpm	95-1600 rpm
Spindle speeds series	12 steps	5 steps	12 steps	6 steps
Worktable size	420×152 mm	555×195 mm	730×210 mm	730×210 mm
Worktable travel	230×140 mm	240×140 mm	450×170 mm	450×170 mm
Main motor	550 W	750 W	1500 W	1500 W
G.W/N.W	100/75 kg	190/160 kg	285/250 kg	318/278 kg
Packing size (L×W×H)	650×580×770 mm	870×670×1020 mm	860×740×1160 mm	860×740×1160 mm
