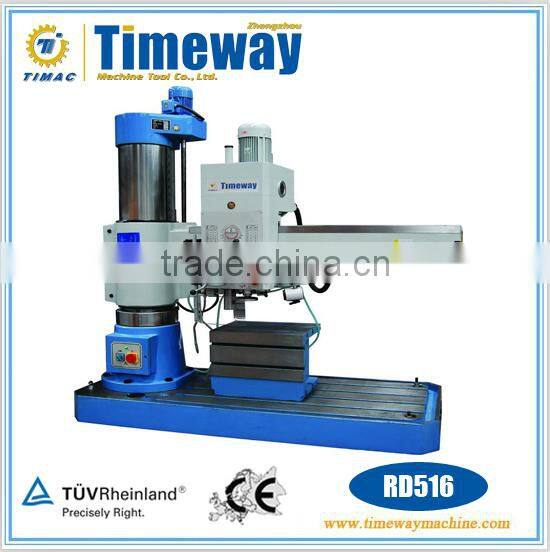

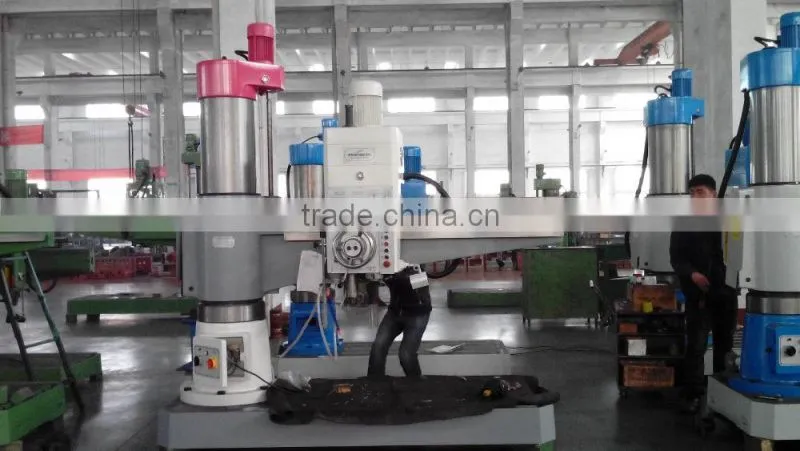

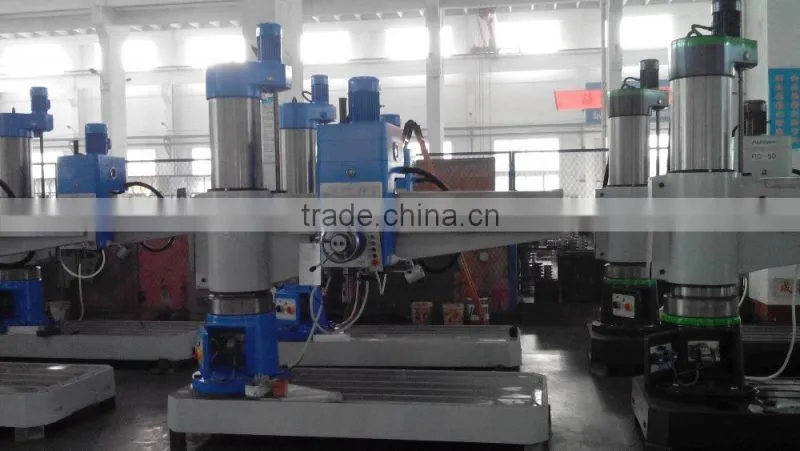

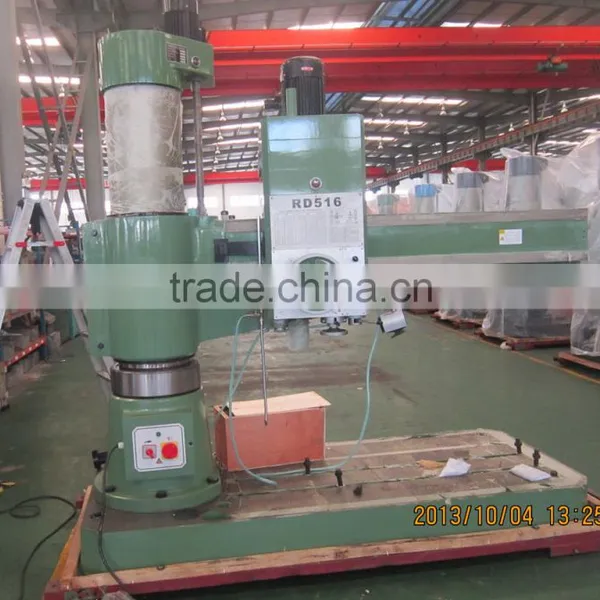

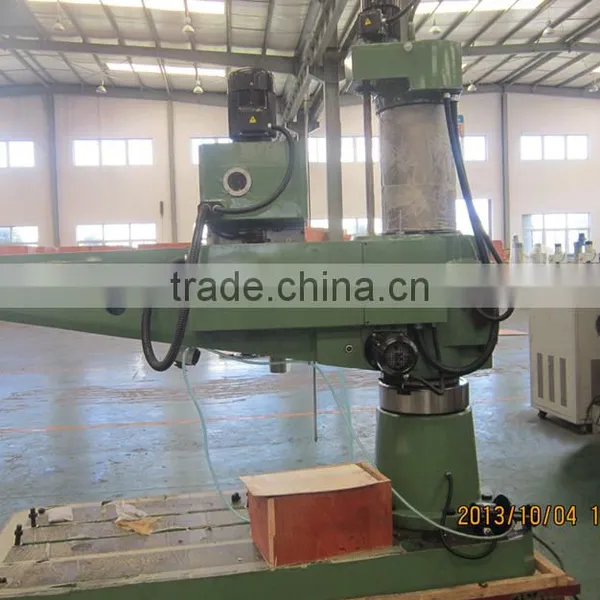

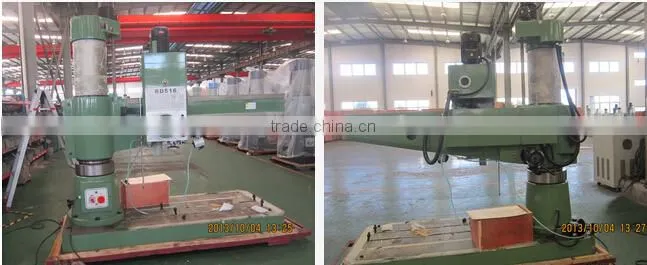

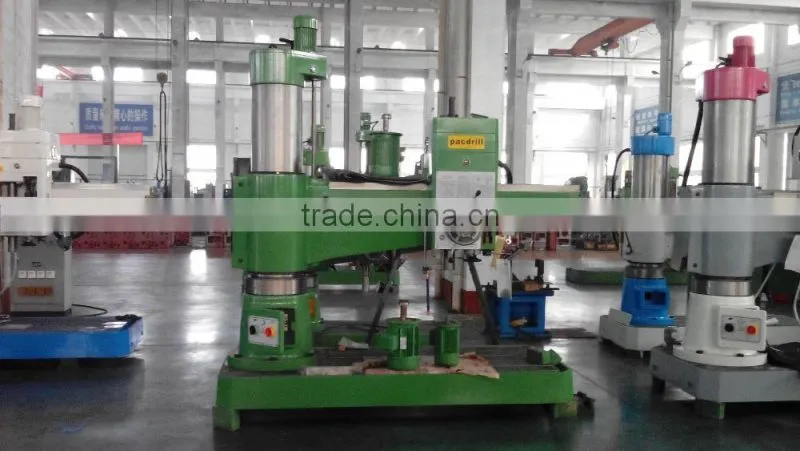

Hydraulic Arm Radial Drill RD516
- 65 Set / Sets per Month
- Shanghai Port
- T/T
- Vertical Facing And Centering Machine VZ820550
- CNC Cylindrical Grinding Machine MA2060/MP2060
- Inner Race Milling Machine QYXB125
- grey color interlocking kelly bar, drill pipe for Bauer Sany Soilmec XCMG Casagrande
- Friction kelly bar,yellow color kelly bar for rotary Bauer Sany Soilmec XCMG Casagrande
- new design friction kelly bar, Rotary drill pipe for Bauer Sany Soilmec XCMG Casagrande
Product Details
Condition: | New | CNC or Not: | Normal | Drilling Speed: | 254-2000 r.p.m |
Brand Name: | TIMAC | Model Number: | RD516 | Voltage: | As customer's request |
Power(W): | 4kw | Dimension(L*W*H): | 2700x1120x2580mm | Weight: | 4300kg |
Certification: | ISO9001; CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Agujereadora De Radial RD516
Features:
* The radial drilling machine is with diversified fuctions of product which has been designed and accomplished referring to international standard.

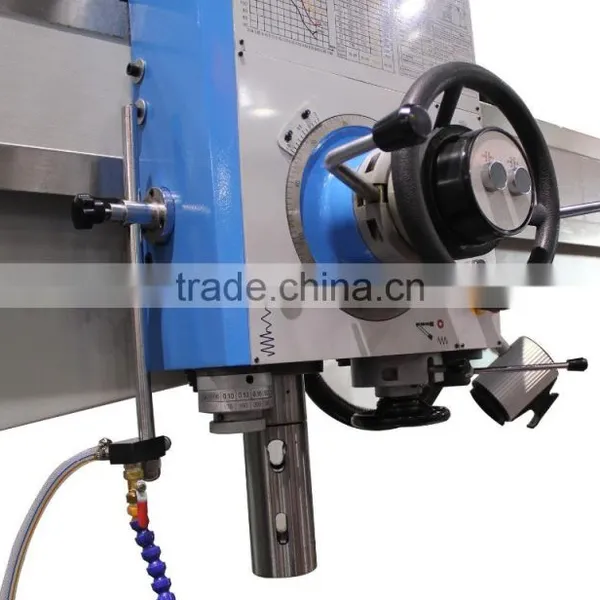

* In this machine, hydraulic preselection speed and feed change mechanisms are adopted, the spindle head, radial arm and column are clamped by hydraulic clamping mechanisms.
* The forward, reverse, stop(braking), as well as the setting of spindle in neutral position are all controlled by a single-lever, the machine has characteristics features of perfect performance, safe, reliable and easy operation, convenient maintenance, high-accuracy, ample rigidity and long life.
* It is used for drilling, counter boring, spot facing, reaming, tapping and boring, widely used in every department of mechaninal machining.
Parameter:
Specification | RD310/RD410 | RD416 | RD516 | RD520 | RD620 | RD825 |
Max.drilling capacity(mm) | 32/40 | 40 | 50 | 50 | 63 | 80 |
Distance spindle axis to column | 300-1000 | 350-1600 | 350-1600 | 350-2000 | 450-2050 | 500-2500 |
DistancEe of column(mm) | 240 | 350 | 350 | 350 | 450 | 550 |
Spindle taper | MT4 | MT4 | MT5 | MT5 | MT5 | MT6 |
Spindle travel | 280 | 315 | 315 | 315 | 400 | 450 |
Spindle speeds range(r/min) | 32-2500 | 25-2000 | 254-2000 | 25-2000 | 25-1600 | 16-1250 |
Spindle speeds steps | 16 | 16 | 16 | 16 | 16 | 16 |
Range of spindle feeds | 0.10-1.25 | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 |
Spindle feeds steps | 8 | 16 | 16 | 16 | 16 | 16 |
Max.distance spndle nose to working surface of base(mm) | 220-1000 | 350-1250 | 320-1220 | 320-1220 | 400-1600 | 550-2000 |
Dimension of worktable(mm) | 600×450×450 | 630×500×500 | 630×500×500 | 630×550×500 | 960×630×500 | 1000×800×560 |
Dimension of base(mm) | 1710×800×160 | 2400×1000×200 | 2400×1000×200 | 2400×1000×200 | 2900×1250×250 | 3530×1400×300 |
Overall size(mm) | 1760×800×2050 | 2500×1060×2650 | 2500×1060×2650 | 2900×1060×2650 | 3110×1250×3150 | 3730×1400×3790 |
Power of main motor | 2.2 | 3 | 4 | 4 | 5.5 | 7.5 |
G.W/N.W(kg) | 2100/1600 | 4500/3500 | 4300/3500 | 4350/3550 | 8000/7000 | 15000/11000 |
Packing dimension(cm) | 187×97×217 | 270×112×258 | 270×112×258 | 320×112×258 | 347×147×235 | 416×165×248 |
*** Standard accessories:
RD616B Series Radial Drilling Machine (Stepless)
RD516 Series Radial Drilling Machine (Hydro)

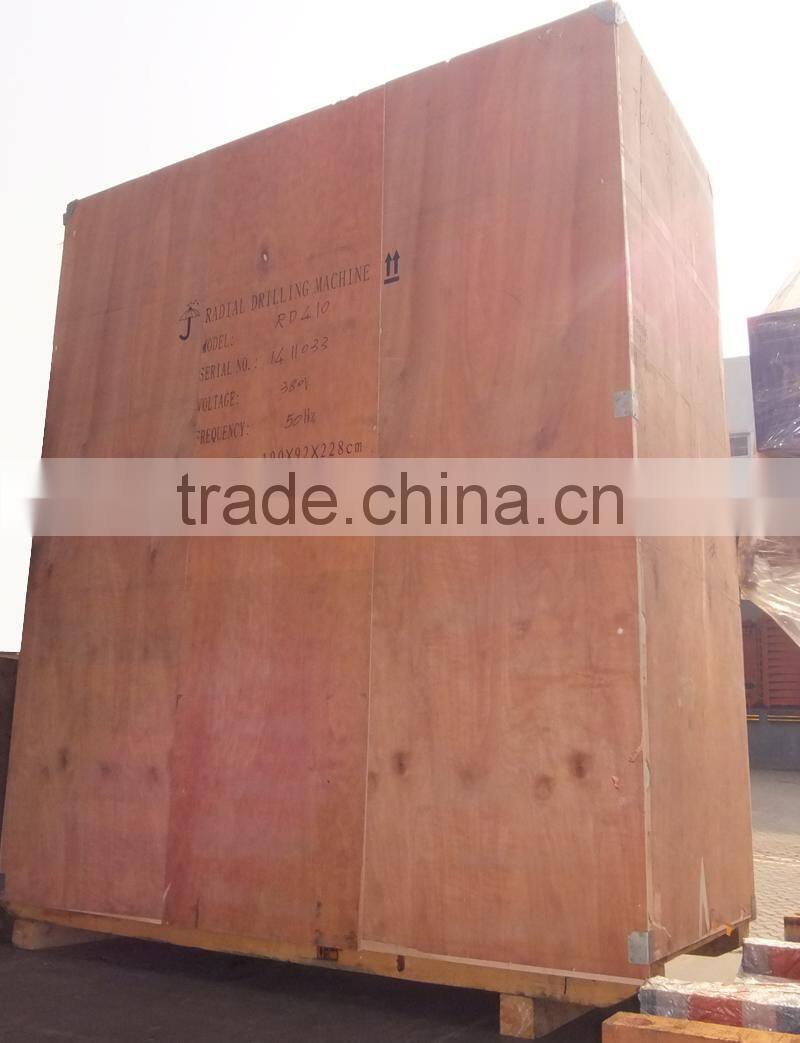

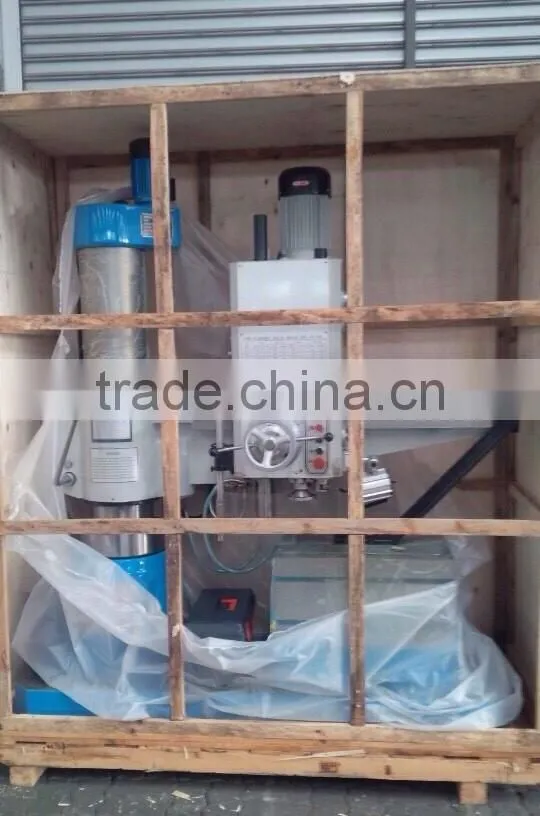

Package: Plywood case (fumigated)
Packing size:
One piece in one case: 2700×1120×2580mm N.W./G.W.: 3500/4300KG
Container loaded: 1 x 40'HQ LCL
If you have any queries please give us a
call or send us a message.
We will be happy to assist you!
